Briggs and Stratton 10HP to 13HP Vertical Crankshaft Side Valve Engine Spare Parts

Briggs&Stratton uk | Single Cyl. Vertical Crankshaft Over 7 HP Spare Parts  | Briggs and Stratton Vertical 7HP and above Side Valve Engine Spare Parts |  Briggs and Stratton 10HP to 13HP Vertical Crankshaft Side Valve Engine Spare Parts

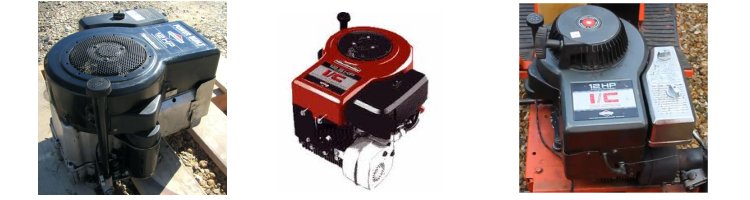

Briggs and Stratton 10HP to 13HP Vertical Engine Parts Click Engine Image for more Information about this Engine Group

This series of engines are usually to be found on ride on lawnmowers but can also be found on industrial walk behind mowers, paddock cleaners (poo pickers) and other equipment.

They have side valve (L-Head) configuration with the spark plug near the centre of the cylinder head.
The head is flat with vertical cooling fins and often has a flat, pressed steel cover plate over most of the fins with a hole for spark plug access

The carburettor and air filter are fitted to the L/H side of the engine (viewed from behind) with the exhaust emerging from below the carburettor manifold.
They are usually electric start but there are also pull start versions. Some of these engines have both.

The Model, Type and Code numbers are stamped into the pressed steel cowling just above the spark plug location or on a small plate rivited to the top and are typically 220707, 251707, 280707, 281707, 286707, 28M707, 280T707, etc.
Engines whos model begins with 22 are 10HP, those begining 25 are 11HP, those starting 28 are 11.5HP - 13HP depending upon particular model and type.

992425 Ride on Mower Cover


Quantity:

992425 Ride on Mower Cover


Price: 27.48 (Including VAT at 20%)

Approx shipping weight 1.5kg

Ride on mower/garden tractor cover
Protects against most weather conditions.
Width 100cm
Length 264cm
Height 130cm


270962 Briggs and Stratton Single Cylinder Repair Manual


Quantity:

270962 Briggs and Stratton Single Cylinder Repair Manual


Price: 18.99

Approx shipping weight 780g

Repair manual for all single cylinder side valve engines built after 1981 including Sprint, Classic and Quattro engines
Covers all you need to know!


CE8069 Vintage Engine Repair Manual


Quantity:

CE8069 Vintage Engine Repair Manual


Price: 24.30

Approx shipping weight 780g

Repair manual for engines dating 1919 to 1981
Includes Cast iron models A to ZZ and 5's to 320000
Aluminium engines 6B, 8B and 60000 to 253400


992300C Spark Plug


Quantity:

992300C Spark Plug


Price: 4.39 (Including VAT at 20%)

Approx shipping weight 50g

Short reach spark plug for all Briggs and Stratton side valve engines


992356 Spark Plug Wrench


Quantity:

992356 Spark Plug Wrench


Price: 6.00 (Including VAT at 20%)

Approx shipping weight 120g

19mm/21mm Spark plug box wrench for 992041 spark plug


992380 Fuel Fit Additive


Quantity:

992380 Fuel Fit Additive


Price: 4.19 (Including VAT at 20%)

Approx shipping weight 130g

Briggs and Stratton Petrol additive for all 4 stroke and 2 stroke petrol engines
Prevents fuel deterioration during periods of non-use and generally aids engine efficiency
Essential for correct winter storage of lawnmowers etc.

100 ml, treats 10 litres of fuel.


496894S Air Filter Cartridge


Quantity:

496894S Air Filter Cartridge


Price: 16.50 (Including VAT at 20%)

Approx shipping weight 300g

Paper air filter cartridge for many larger vertical engines using single stud fitting
Approx 18cm long x 7.5cm high


272403S Pre-Filter


Quantity:

272403S Pre-Filter


Price: 3.90 (Including VAT at 20%)

Approx shipping weight 10g

Foam pre-filter for 496894 cartridge
Can be retro fitted to prolong cartridge life


691667 Air filter Cartridge


Quantity:

691667 Air filter Cartridge


Price: 23.40 (Including VAT at 20%)

Approx shipping weight 270g

Paper air filter cartridge for some 10HP vertical engines using single stud fitting
Approx 18cm long x 6cm high


272477S Pre-Filter


Quantity:

272477S Pre-Filter


Price: 4.80 (Including VAT at 20%)

Approx shipping weight 10g

Foam pre-filter for 691667 cartridge
Can be retro fitted to prolong cartridge life


393725  Air Filter


Quantity:

393725 Air Filter


Price: 17.64 (Including VAT at 20%)

Approx shipping weight 120g

Paper air filter cartridge for some older 10HP and 11HP vertical crankshaft engines
Approx 13cm long x 6.5cm high


399806S Air Filter Cartridge


Quantity:

399806S Air Filter Cartridge


Price: 19.92 (Including VAT at 20%)

Approx shipping weight 340g

Paper air filter cartridge for many larger vertical engines using two stud fitting
Approx 22cm long x 7cm high


271962S Pre-Filter


Quantity:

271962S Pre-Filter


Price: 3.72 (Including VAT at 20%)

Approx shipping weight 10g

Foam pre-filter for 399806 cartridge
Can be retro fitted to prolong cartridge life


272922 Air Filter


Quantity:

272922 Air Filter


Price: 7.92 (Including VAT at 20%)

Approx shipping weight 30g

Flat foam filter for selected 10HP engines
Fits snap together plastic canister
Approx 11cm long


270843S Air Filter


Quantity:

270843S Air Filter


Price: 13.20 (Including VAT at 20%)

Approx shipping weight 120g

Foam air filter for older 10-11 HP vertical crankshaft engines
Approx 24cm long x 12cm wide


594200 (was 796530)/796532 Oil Drain Extension


Quantity:

594200 (was 796530)/796532 Oil Drain Extension


Price: 20.16 (Including VAT at 20%)

Approx shipping weight 140g

Extended oil drain pipe kit
Allows easier oil draining away from bodywork etc.
Includes 796530 drain pipe and 796532 Connector
Pipe can be clipped up out of the way when not in use
Can be retro fitted to any engine with 3/8" Pipe thread (approx 17mm drain plug thread outside diameter)


5401K Oil Drain Adaptor Kit


Quantity:

5401K Oil Drain Adaptor Kit


Price: 12.60 (Including VAT at 20%)

Approx shipping weight 70g

Oil drain adaptor and extension tube.
Quick drain sump plug valve and 20cm extension tube.
Fits most larger engines. (Sump plug thread approx 17mm outside diameter)


281370S Dipstick Tube Seal


Quantity:

281370S Dipstick Tube Seal


Price: 3.72 (Including VAT at 20%)

Approx shipping weight 10g

Oil filler/dipstick threaded rubber seal


298090S Fuel Filter


Quantity:

298090S Fuel Filter


Price: 4.20 (Including VAT at 20%)

Approx shipping weight 10g

Red in line fuel filter for gravity fed fuel systems


394358S Fuel Filter


Quantity:

394358S Fuel Filter


Price: 4.20 (Including VAT at 20%)

Approx shipping weight 10g

White 75 micron in line fuel filter for pumped or higher pressure gravity fuel systems


691035 Fuel Filter


Quantity:

691035 Fuel Filter


Price: 7.50 (Including VAT at 20%)

Approx shipping weight 15g

Paper type in line fuel filter fitted in many pumped fuel systems
40 microns


395051R Briggs and Stratton Fuel Tube


Quantity:

395051R Briggs and Stratton Fuel Tube


Price: 3.66 (Including VAT at 20%)

Approx shipping weight 20g per 20cm

Fuel tube for most applications

Sold in units of 20cm. Multiple purchases will be supplied in one total length
Use with 710075 clamps.(sold seperately)


710075 Fuel Tube clamp


Quantity:

710075 Fuel Tube clamp


Price: 2.88 (Including VAT at 20%)

Approx shipping weight 10g

Plated fuel tube hose clamp
Fits 11mm O/D fuel tube 395051


691038 Fuel Tube Clamp - Black


Quantity:

691038 Fuel Tube Clamp - Black


Price: 2.82 (Including VAT at 20%)

Approx shipping weight 10g

Black fuel tube clamp. Fits 12mm O/D fuel hose
(Slightly smaller than 95162)


791850 Fuel Tube Clamp - Green


Quantity:

791850 Fuel Tube Clamp - Green


Price: 2.82 (Including VAT at 20%)

Approx shipping weight 10g

Green fuel tube clamp. Fits fuel tube over 12mm O/D
(Slightly larger than 691038)


698183 Fuel Tap


Quantity:

698183 Fuel Tap


Price: 6.12 (Including VAT at 20%)

Approx shipping weight 15g

In line fuel shut off valve supplied with 2 x 95162 tube clamp


698182 Fuel Valve


Quantity:

698182 Fuel Valve


Price: 8.16 (Including VAT at 20%)

Approx shipping weight 20g

Fuel shut off valve. 90 degrees screw in.
Replaces old number 399517


592840 Fuel Shut Off Valve


Quantity:

592840 Fuel Shut Off Valve


Price: 25.74 (Including VAT at 20%)

Approx shipping weight 30g

Old style tank mounted fuel shut off valve (replaces 691940, 293934, 394387, 692302)
Note - the male thread tank outlet which this tap screws onto is no longer available



791545 (was 392305S) Fuel Cap


Quantity:

791545 (was 392305S) Fuel Cap


Price: 6.60 (Including VAT at 20%)

Approx shipping weight 35g

Fuel cap. Replaces 392305S & 392301
Tank thread O/D approx 48mm


493982S Fuel Cap


Quantity:

493982S Fuel Cap


Price: 3.36 (Including VAT at 20%)

Approx shipping weight 35g

Metal fuel cap for older engines with plastic tank
Thread O/D approx 38mm


795027 Fuel Cap (was 493988S)


Quantity:

795027 Fuel Cap (was 493988S)


Price: 5.52 (Including VAT at 20%)

Approx shipping weight 30g

Large plastic fuel cap. Fits plastic tank with large opening.
Fuel tank thread approx 56mm outside diameter.


808656 Fuel Pump


Quantity:

808656 Fuel Pump


Price: 35.52 (Including VAT at 20%)

Approx shipping weight 100g

808656 Plastic fuel pump. Approx 50mm diameter x 25mm. 3 connectors


692253 Breather Tube


Quantity:

692253 Breather Tube


Price: 6.96 (Including VAT at 20%)

Approx shipping weight 15g

Breather tube. Was 280100


19200E Briggs and Stratton Engine Speed Tachometer


Quantity:

19200E Briggs and Stratton Engine Speed Tachometer


Price: 17.57 (Including VAT at 20%)

Approx shipping weight 40g

RPM tachometer to accurately set engine speed
Easy to use and compact. Complete with instructions and wallet
Suits any engine


796260 (was 692208) Governor Spring


Quantity:

796260 (was 692208) Governor Spring


Price: 4.98 (Including VAT at 20%)

Approx shipping weight 10g

Governor spring.


692207 Spring


Quantity:

692207 Spring


Price: 6.18 (Including VAT at 20%)

Approx shipping weight 5g

Spring, governor link
Approx 16.5cm long


799728 Carburettor


Quantity:

799728 Carburettor


Price: 70.56 (Including VAT at 20%)

Approx shipping weight 400g

Carburettor, for gravity fed 28 series engines which have their carburettor bolted to a seperate intake manifold
Replaces both the Walbro (LMT) and Nikki models.
Includes intake gasket and optional idle mix screw limiter


497535 Carburettor Overhaul Kit


Quantity:

497535 Carburettor Overhaul Kit


Price: 47.34 (Including VAT at 20%)

Approx shipping weight 80g

Carburettor overhaul kit for LMT Walbro carb fitted to later 10HP engines
(Carb will have LMT on its body and will be bolted to a seperate intake manifold)
This kit no longer includes the long central brass nozzle.


231855S Needle Valve


Quantity:

231855S Needle Valve


Price: 3.84 (Including VAT at 20%)

Approx shipping weight 5g

Float needle. For Walbro LMT carburettors fitted to later 10HP engines.
This needle has a rubberised "vitron" point. Note, some early carburettors have a plain metal needle. The two are not interchangeable.


690577 Needle Seat


Quantity:

690577 Needle Seat


Price: 7.74 (Including VAT at 20%)

Approx shipping weight 10g

Inlet needle seat for gravity fed LMT Walbro carburettor


494381 Float


Quantity:

494381 Float


Price: 15.36 (Including VAT at 20%)

Approx shipping weight 10g

Carburettor float


281165S Carburetor Bowl Seal


Quantity:

281165S Carburetor Bowl Seal


Price: 6.18 (Including VAT at 20%)

Approx shipping weight 5g

Carburetor rubber bowl seal for Walbro carburettor (LMT on body)
Approx 5cm outside diameter


692255 Washer


Quantity:

692255 Washer


Price: 3.60 (Including VAT at 20%)

Approx shipping weight 5g

Fibre carburetor bowl lower seal washer for walbro carburettor (LMT on body)
Approx 8mm inside diameter


692317 Carburettor Hose Connector


Quantity:

692317 Carburettor Hose Connector


Price: 7.08 (Including VAT at 20%)

Approx shipping weight 15g

Hose connector for Walbro LMT carburettor
Nylon - push fit into carb.


691609 Hose Connector


Quantity:

691609 Hose Connector


Price: 4.26 (Including VAT at 20%)

Approx shipping weight 20g

Hose connector


692284 Gasket


Quantity:

692284 Gasket


Price: 8.70 (Including VAT at 20%)

Approx shipping weight 10g

Carb to manifold gasket
Hole centres approx 54mm apart

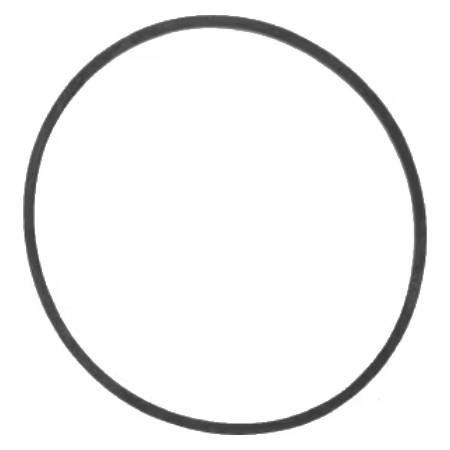

694920 Gasket


Quantity:

694920 Gasket


Price: 6.24 (Including VAT at 20%)

Approx shipping weight 5g

Float bowl gasket. Nikki carburettor
Approx 54mm outside diameter

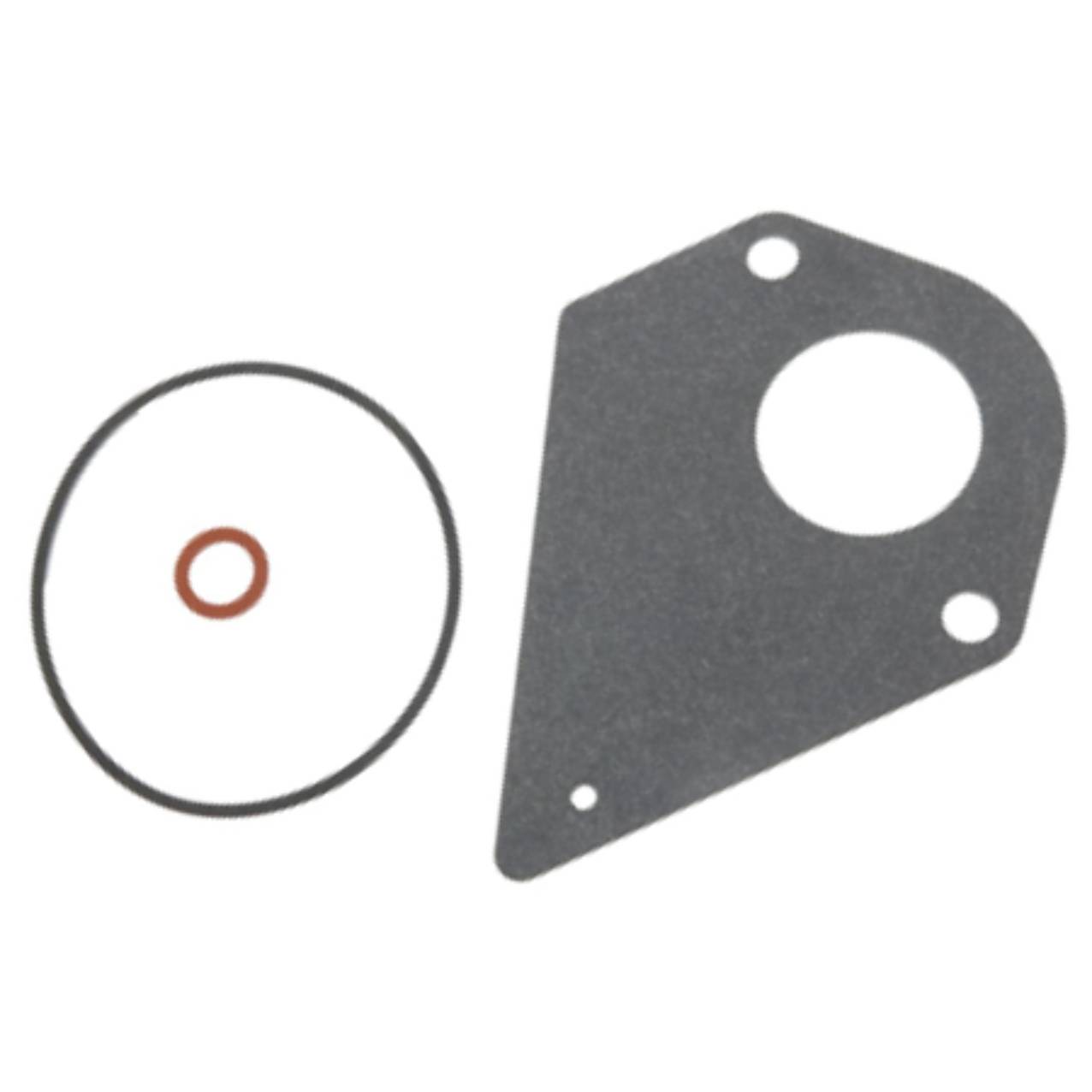

694931 Carb gasket kit


Quantity:

694931 Carb gasket kit


Price: 12.24 (Including VAT at 20%)

Approx shipping weight 10g

Gasket kit for Nikki carburettor


696136 Needle Valve


Quantity:

696136 Needle Valve


Price: 18.00 (Including VAT at 20%)

Approx shipping weight 5g

Plastic needle valve for Nikki carb.
Has small spring loaded pin at one end.


394698 (was 299852) Carburettor Overhaul Kit


Quantity:

394698 (was 299852) Carburettor Overhaul Kit


Price: 30.96 (Including VAT at 20%)

Approx shipping weight 100g

Carburettor overhaul kit
For Vertical crankshaft sidevalve engine models 17,19,25 & 28 with one piece carburettor (see compatibility pop-up)
Note - the long brass nozzle screwed in from the top of the carb is no longer included in this kit. (see 299740 below)


299740 Nozzle


Quantity:

299740 Nozzle


Price: 20.88 (Including VAT at 20%)

Approx shipping weight 10g

Carburettor nozzle. Screws in from the top of older one piece carburettors.
Not included in 394698 carb overhaul kit.
Approx 65mm long


299707 Float


Quantity:

299707 Float


Price: 17.52 (Including VAT at 20%)

Approx shipping weight 30g

Carburettor float for one piece carburettor (intake manifold is cast as one with the carb body)
Replaces old brass float


394681 Needle Kit


Quantity:

394681 Needle Kit


Price: 6.96 (Including VAT at 20%)

Approx shipping weight 5g

Needle & seat. Includes earlier (seperate seat, square section needle) and later(tip seating, triangle section) needles. Instructions included.


394682 Inlet Needle Valve


Quantity:

394682 Inlet Needle Valve


Price: 13.62 (Including VAT at 20%)

Approx shipping weight 5g

Inlet needle valve kit. Gravity feed
Includes brass seat for older models (which is not included in carb kit)


396568 Mixture Adjustment Screw


Quantity:

396568 Mixture Adjustment Screw


Price: 11.04 (Including VAT at 20%)

Approx shipping weight 15g

High speed mixture adjustment screw assembly.
Fits under (and retains) float bowl of single piece carburettor.
It is recommended to also replace 231323 Nozzle.
Includes spring. o ring and nut but not 690618 washer (see below)


231323 Emulsion Tube (Nozzle)


Quantity:

231323 Emulsion Tube (Nozzle)


Price: 17.22 (Including VAT at 20%)

Approx shipping weight 25g

Carburettor emulsion tube. For one piece carburettor with adjsutable main jet.


270511 Carburetor Bowl Gasket


Quantity:

270511 Carburetor Bowl Gasket


Price: 4.32 (Including VAT at 20%)

Approx shipping weight 5g

Carburetor fibre bowl gasket for many older large engines
Approx 6cm diameter


690618 Bowl Washer


Quantity:

690618 Bowl Washer


Price: 2.16 (Including VAT at 20%)

Approx shipping weight 5g

Alluminium carburetor bowl lower sealing washer for older engines
Approx 10mm inside diameter


272554S Inlet Manifold Gasket


Quantity:

272554S Inlet Manifold Gasket


Price: 2.82 (Including VAT at 20%)

Approx shipping weight 5g

Inlet manifold gasket for many older large engines
Approx 4.3cm between bolt hole centres


691108 Cover bolt


Quantity:

691108 Cover bolt


Price: 3.36 (Including VAT at 20%)

Approx shipping weight 10g

1/4 inch diameter bolt for engine cowling, carb bracket etc. Also replaces 692198
(approx 14mm long)

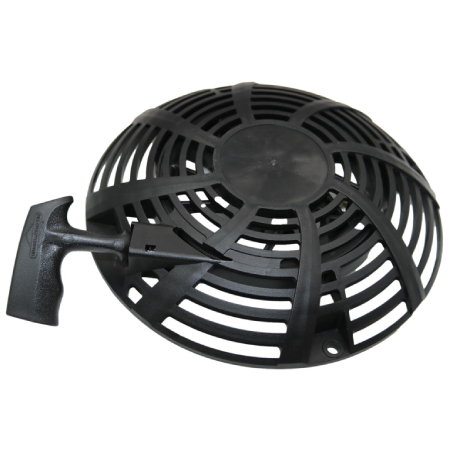

591606 (was 695058) Rewind Assembly


Quantity:

591606 (was 695058) Rewind Assembly


Price: 40.32 (Including VAT at 20%)

Approx shipping weight 870g

Rewind starter assembly for 10HP - 13HP engines which have cup engagement
mounted on flywheel. Includes fixing screws and cup.
Can be used to add rewind to engines with electric start only.


695129 Recoil Starter Pulley


Quantity:

695129 Recoil Starter Pulley


Price: 27.96 (Including VAT at 20%)

Approx shipping weight 185g

Recoil starter pulley for larger engines that are fitted with plastic pawls and plate. (sold seperately as ST3 below)
(Approx 16cm diameter)


695131 Recoil Spring


Quantity:

695131 Recoil Spring


Price: 11.82 (Including VAT at 20%)

Approx shipping weight 50g

Recoil starter spring for 695129 pulley


ST3 Starter Pawls and Plate


Quantity:

ST3 Starter Pawls and Plate


Price: 21.66 (Including VAT at 20%)

Approx shipping weight 25g

Recoil starter pawls(281505S) x2, friction spring(691855) and plate(695128) for 695129 pulley
(Plate approx 5.5cm diameter)


295871 Recoil Pulley


Quantity:

295871 Recoil Pulley


Price: 10.38 (Including VAT at 20%)

Approx shipping weight 185g

Recoil pulley for 5HP + engines with square drive starter clutch
Comes with rope. Approx 13.5cm diameter


490179 Briggs & Stratton Recoil Starter Spring


Quantity:

490179 Briggs & Stratton Recoil Starter Spring


Price: 10.98 (Including VAT at 20%)

Approx shipping weight 120g

Recoil rewind spring for older engines with clutch type recoil and white pulley


692188 Recoil Rope


Quantity:

692188 Recoil Rope


Price: 6.00 (Including VAT at 20%)

Approx shipping weight 35g

5mm x 1.6m long recoil rope for many larger engines. Soft white


490652 Starter Grip


Quantity:

490652 Starter Grip


Price: 5.22 (Including VAT at 20%)

Approx shipping weight 55g

Recoil starter large rubber grip with plastic insert
Fits 5mm diameter rope 692188 and pulley 295871


399671 Briggs & Stratton Parts Starter Clutch


Quantity:

399671 Briggs & Stratton Parts Starter Clutch


Price: 30.48 (Including VAT at 20%)

Approx shipping weight 370g

Square drive starter clutch for older Sprint, Classic & Quattro engines


690582 Washer


Quantity:

690582 Washer


Price: 3.90 (Including VAT at 20%)

Approx shipping weight 5g

Spring washer. Fits below starter clutch or flywheel nut.


19244 Starter Clutch Wrench


Quantity:

19244 Starter Clutch Wrench


Price: 5.75 (Including VAT at 20%)

Approx shipping weight 500g

Older type starter clutch removal tool
Sits over the clutch to enable standard socket set fitting


497595 Starter Motor


Quantity:

497595 Starter Motor


Price: 108.84 (Including VAT at 20%)

Approx shipping weight 2.5kg

497595 Starter motor
With 16 tooth plastic pinion gear. 3 5/8" Housing


795121 (was 499521) Starter motor


Quantity:

795121 (was 499521) Starter motor


Price: 138.12 (Including VAT at 20%)

Approx shipping weight 2.75kg

Starter motor
Has 16 tooth plastic drive gear and 4 9/16" housing length


696541 Starter Drive


Quantity:

696541 Starter Drive


Price: 25.80 (Including VAT at 20%)

Approx shipping weight 180g

Electric starter motor drive kit for most later starter motors
Plastic drive gear and "c" clip type retainer


691265 Starter 'C' Clip


Quantity:

691265 Starter 'C' Clip


Price: 3.48 (Including VAT at 20%)

Approx shipping weight 5g

'C' clip retainer for later starter motors


695708 Starter Gear


Quantity:

695708 Starter Gear


Price: 6.84 (Including VAT at 20%)

Approx shipping weight 20g

16 tooth plastic starter gear for most starter motors


696540 Starter Drive


Quantity:

696540 Starter Drive


Price: 24.42 (Including VAT at 20%)

Approx shipping weight 180g

Electric starter motor drive kit for most earlier starter motors
Plastic drive gear and pin type retainer.(also suits early models without return spring & cage)


691641 Pin


Quantity:

691641 Pin


Price: 3.18 (Including VAT at 20%)

Approx shipping weight 10g

Retaining pin. For pin retained started gears


593934 (was 693551) Starter Motor


Quantity:

593934 (was 693551) Starter Motor


Price: 128.10 (Including VAT at 20%)

Approx shipping weight 2.5kg

693551 Starter motor assy. With 14 tooth metal pinion gear with plastic centre.
3 5/8" Body Housing length. Please count the teeth on your original prior to ordering.
This motor is NOT interchangeable with the 16 tooth plastic gear motor.


693699 Starter Drive


Quantity:

693699 Starter Drive


Price: 43.62 (Including VAT at 20%)

Approx shipping weight 200g

Sarter motor clutch and gear assembly
(14 tooth 693713 metal gear, 'c' clip retainer)
Please ensure that your current gear has 14 teeth.
This gear is NOT interchangeable with the 16 tooth plastic gear.


593935 (was 693713) Metal Starter Gear


Quantity:

593935 (was 693713) Metal Starter Gear


Price: 21.66 (Including VAT at 20%)

Approx shipping weight 45g

Metal 14 tooth starter gear with plastic inner for some starter motors
This gear is NOT interchangeable with the 16 tooth plastic starter gear. The tooth pitch is different


691293 Brush Holder


Quantity:

691293 Brush Holder


Price: 23.70 (Including VAT at 20%)

Approx shipping weight 200g

Starter motor brush holder. Includes brushes.
For motors with metal baseplate bolted onto the retainer.


691286 Metal Plate


Quantity:

691286 Metal Plate


Price: 15.90 (Including VAT at 20%)

Approx shipping weight 60g

Starter motor base plate
Includes bearing


696537 Ring Gear Kit


Quantity:

696537 Ring Gear Kit


Price: 47.52 (Including VAT at 20%)

Approx shipping weight 520g

696537 Flywheel ring gear. Replaces part numbers 399676 and 392134
Updates older plastic ring gear to aluminium
Approx. 21cm diameter
Includes mounting parts, small motor gear, retaining pin and 'C' clip


691656 Starter Solenoid


Quantity:

691656 Starter Solenoid


Price: 18.18 (Including VAT at 20%)

Approx shipping weight 200g

691656 Starter Solinoid, single poll
Please note - starter solenoids are generally originally provided by the equipment manufacturer not Briggs and Stratton
This is a fairly universal soleniod that fits most applications however, if you wish to replace the original exactly, a replacement would need to be obtained through the equipment (mower etc.) manufacturer


692318 Ignition Switch


Quantity:

692318 Ignition Switch


Price: 21.66 (Including VAT at 20%)

Approx shipping weight 120g

Indak ignition key switch
Please check wiring details pop-up below as some equipment manufacturers use similar looking switches with differing pin positions


691959 Ignition Key Set


Quantity:

691959 Ignition Key Set


Price: 8.10 (Including VAT at 20%)

Approx shipping weight 10g

Indak Ignition key set. Contains two keys
Flat profile. (see pop up link below for shape) Fits most electric start machines


1714054SM Delta Ignition Key


Quantity:

1714054SM Delta Ignition Key


Price: 3.66 (Including VAT at 20%)

Approx shipping weight 10g

Ignition Key. Delta
Used by a number of ride on mower manufacturers. Including some models from, John Deere, Rally, Champion, Craftsman, AYP and others

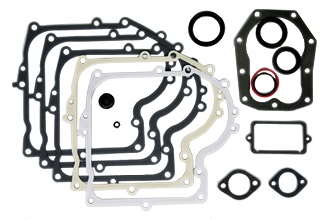

494241 Gasket Set


Quantity:

494241 Gasket Set


Price: 40.56 (Including VAT at 20%)

Approx shipping weight 150g

Gasket set for Single cylinder side valve engines whos model starts 25 & 28
Includes seals

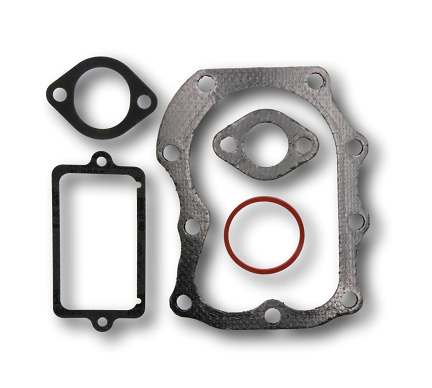

498539 Gasket Set, Head


Quantity:

498539 Gasket Set, Head


Price: 21.60 (Including VAT at 20%)

Approx shipping weight 50g

Cylinder and valve gasket set for 10HP+ single cylinder engines
For Vertical crankshaft side valve engines whose model starts with 22,25 and 28 (eg 220707, 28M707 etc.)
For all decoke and valve work


271866S Head Gasket


Quantity:

271866S Head Gasket


Price: 7.02 (Including VAT at 20%)

Approx shipping weight 60g

Head gasket for 10HP+ single cylinder engines
For Vertical crankshaft side valve engines whose model starts with 22,25 and 28 (eg 220707, 28M707 etc.)


498537 Gasket Set, Head


Quantity:

498537 Gasket Set, Head


Price: 24.18 (Including VAT at 20%)

Approx shipping weight 120g

11HP Head and valve gasket set
For engines whose model starts with 25.(eg 252707, 253702 etc.)
Includes Head, valve chest, intake and exhaust gaskets


27803S Valve Cover Gasket


Quantity:

27803S Valve Cover Gasket


Price: 2.46 (Including VAT at 20%)

Approx shipping weight 5g

Valve chest cover gasket. Screw hole centres approx 88mm apart
For Engine Models 17,19, 22, 25, 28 & 31


692226 Gasket, Crankcase


Quantity:

692226 Gasket, Crankcase


Price: 4.20 (Including VAT at 20%)

Approx shipping weight 30g

Crankcase gasket for single cylinder sidevalve engines with
model numbers starting with 28


271702S Crankcase Gasket


Quantity:

271702S Crankcase Gasket


Price: 6.66 (Including VAT at 20%)

Approx shipping weight 30g

Crankcase gasket, standard. For vertical crankshaft engines whos model starts 25 & 22.


291675S Oil Seal


Quantity:

291675S Oil Seal


Price: 4.26 (Including VAT at 20%)

Approx shipping weight 15g

Lower oil seal. For models 25 & 28 engines
O/D approx 48mm I/D approx 34mm


391086S Seal-Oil


Quantity:

391086S Seal-Oil


Price: 3.84 (Including VAT at 20%)

Approx shipping weight 10g

Upper oil seal for 25 and 28 series engine.
Approx 42mm O/D x 28mm I/D


691874 Exhaust Muffler


Quantity:

691874 Exhaust Muffler


Price: 47.64 (Including VAT at 20%)

Approx shipping weight 1.5kg

Muffler, square lo tone. Includes bolts heat shield and gasket
To fit side valve model 28 engines
Approx 11cm x 12cm x 9cm deep. Bolt hole centres approx 4.8cm apart


795036 (was 393761) Deflector Muffler


Quantity:

795036 (was 393761) Deflector Muffler


Price: 8.10 (Including VAT at 20%)

Approx shipping weight 75g

Exhaust deflector. Includes screws
Fits many larger engine mufflers including 691874


692236 Exhaust Gasket


Quantity:

692236 Exhaust Gasket


Price: 3.66 (Including VAT at 20%)

Approx shipping weight 30g

692236 Exhaust gasket. Fits 7HP and 8HP engines.
Bolt hole centres approx 48mm apart


391569S Exhaust


Quantity:

391569S Exhaust


Price: 39.36 (Including VAT at 20%)

Approx shipping weight 1.2kg

Exhaust. Screw in type.
Approx 13cm (5") Pipe length, 21cm (8") overall length, 11cm (4") Muffler Diameter.
1" NPT Thread (Approx 33mm O/D)


691808 Locknut


Quantity:

691808 Locknut


Price: 4.80 (Including VAT at 20%)

Approx shipping weight 15g

Locknut, muffler. For 391569S and other 1" NPT (approx 33mm thread O/D) Exhausts


794360 Voltage Regulator (was 691188)


Quantity:

794360 Voltage Regulator (was 691188)


Price: 42.42 (Including VAT at 20%)

Approx shipping weight 80g

12 Volt regulator and rectifier for many larger electric start engines
Approx 4cm square. Yellow lead with round connector, Red lead with round connector


845907 (797375) Voltage Regulator


Quantity:

845907 (797375) Voltage Regulator


Price: 43.44 (Including VAT at 20%)

Approx shipping weight 170g

12 Volt regulator and rectifier for many larger electric start engines
Approx 5.5cm x 8cm. 2 Yellow leads with rectangular connector, Red lead with round connector


19368 Ignition Spark Tester


Quantity:

19368 Ignition Spark Tester


Price: 16.37 (Including VAT at 20%)

Approx shipping weight 90g

Ignition spark tester
Tests the ignition system for efficiency
For all engines


398811 Ignition Armature


Quantity:

398811 Ignition Armature


Price: 51.72 (Including VAT at 20%)

Approx shipping weight 380g

Electronic ignition armature magneto coil for 7 - 16 HP single cylinder side valve engines
Also used to convert older points system (coil 298968) engines to electronic ignition
Mounting hole centres approx 6.4cm apart


591459 (was 492341) Ignition Armature


Quantity:

591459 (was 492341) Ignition Armature


Price: 34.32 (Including VAT at 20%)

Approx shipping weight 380g

Electronic ignition armature magneto coil for later single cylinder side valve engine
Mounting hole centres approx 6.4cm apart


66538S/493880S Terminal & Elbow


Quantity:

66538S/493880S Terminal & Elbow


Price: 5.46 (Including VAT at 20%)

Approx shipping weight 10g

Spark plug terminal (493880S) and rubber elbow (66538S) to fit all side valve HT leads


692390 Stop Wire


Quantity:

692390 Stop Wire


Price: 3.42 (Including VAT at 20%)

Approx shipping weight 20g

Stop wire. Approx 42cm long
Can also be used on old points ignition systems by cutting off the spade connector.


294628 Breaker Points


Quantity:

294628 Breaker Points


Price: 18.18 (Including VAT at 20%)

Approx shipping weight 35g

Contact breaker points for most points ignition engines
(Fitted under the flywheel) Includes spring compressing tool


65704S Points Plunger


Quantity:

65704S Points Plunger


Price: 3.78 (Including VAT at 20%)

Approx shipping weight 5g

Points plunger. (pushes up 294628 points arm to open contacts)


19203 Puller - Large


Quantity:

19203 Puller - Large


Price: 10.97 (Including VAT at 20%)

Approx shipping weight 230g

Flywheel puller for larger engines
Distance between outer hole centres approx 72mm
Includes long and short bolt sets
If your engine has a square drive starter clutch holding down the flywheel, you will also require 690662 nut (see below)


690662 Nut


Quantity:

690662 Nut


Price: 4.80 (Including VAT at 20%)

Approx shipping weight 35g

Nut, crankshaft/flywheel
Required for puller use on engines which have a square drive rewind starter clutch


222698S Briggs & Stratton Spare Parts Flywheel key


Quantity:

222698S Briggs & Stratton Spare Parts Flywheel key


Price: 2.52 (Including VAT at 20%)

Approx shipping weight 5g

Flywheel key to fit most engines
Approx. 14mm long x 3mm x 4mm


691483 1/4


Quantity:

691483 1/4" Key


Price: 4.32 (Including VAT at 20%)

Approx shipping weight 20g

1/4" Square Pulley key. Approx 39mm long


Unlisted parts page

Briggs&Stratton uk | Single Cyl. Vertical Crankshaft Over 7 HP Spare Parts  | Briggs and Stratton Vertical 7HP and above Side Valve Engine Spare Parts |  Briggs and Stratton 10HP to 13HP Vertical Crankshaft Side Valve Engine Spare Parts

©copyright 2005 G.Campbell. All rights reserved
(see terms and conditions)

spacer image
