Product Description

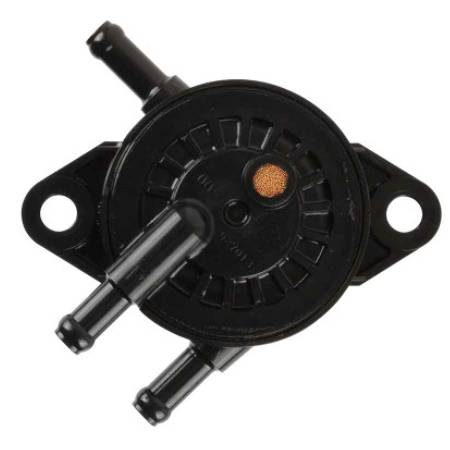

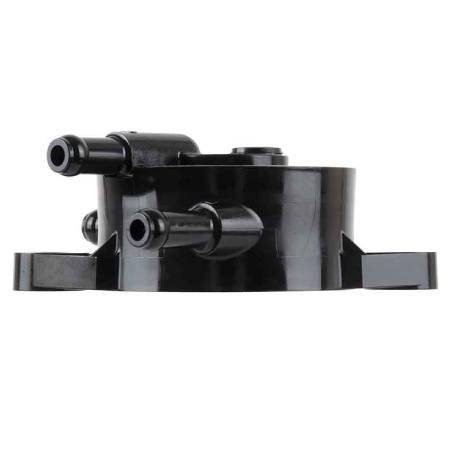

Genuine Briggs and Stratton part: 597338
Plastic fuel pump. Operates via crankcase pressue. 3 connectors.
Suitable as repllacement for Kawasaki, John Deere and Kohler variants
Approx 50mm diameter x 25mm.
Replaces: Briggs 491922, 557033, 691034, 692313, 807429, 808281, 808656. John Deere LG808656. Kawasaki 49040-7001, 49040-0769. Kohler 24 393 16-S
Engine series applications can include, (but may not be limited to), variants of:
Vanguard 160 Series, Vanguard 200 Series, Vanguard 300 Series , Vanguard 400 EFI/ETC Series, Vanguard 400 Series, 5 HP Vanguard Single Cylinder OHV (Horizontal), 6.5 HP Vanguard Single Cylinder OHV (Horizontal), 8 HP I/C Series OHV (Vertical), 8 HP Intek I/C Series OHV (Horizontal), 8 HP Intek Pro Series OHV (Horizontal), 9 HP Intek Series OHV (Vertical), 9 HP PowerBuilt Series OHV (Vertical), 9 HP Vanguard Single Cylinder OHV (Horizontal), 10 HP Intek Pro Series OHV (Horizontal), 10 HP PowerBuilt Series OHV, 10 HP Vanguard Single Cylinder OHV (Horizontal), 10.5 HP I/C AVS Series OHV, 10.5 HP I/C Series OHV, 10.5 HP Intek Series OHV, 10.5 HP PowerBuilt Series OHV, 11 HP Intek Pro Series OHV, 11 HP Intek Series OHV, 11 HP PowerBuilt Series OHV, 11.5 HP I/C Series OHV, 11.5 HP Intek Series OHV, 12.5 HP I/C AVS Series OHV, 12.5 HP I/C Series OHV, 12.5 HP Intek Series OHV, 12.5 HP PowerBuilt Series OHV, 12.5 HP Vanguard V-Twin OHV (Vertical), 13 HP I/C Series OHV, 13 HP Intek Series OHV, 13 HP Vanguard Single Cylinder OHV (Horizontal), 13 HP Vanguard V-Twin OHV (Horizontal), 13.5 HP I/C Series OHV, 13.5 HP Intek Series OHV, 13.5 HP PowerBuilt Series OHV, 1350 Series OHV (Horizontal), 14 HP EFI/ETC Vanguard Single Cylinder OHV (Horizontal), 14 HP Vanguard Single Cylinder OHV (Horizontal), 14 HP Vanguard V-Twin OHV (Horizontal), 14 HP Vanguard V-Twin OHV (Vertical), 14.5 HP I/C Series OHV, 14.5 HP Intek Series OHV, 14.5 HP PowerBuilt OHV, 15 HP Extended Life Series OHV, 15 HP Intek Series OHV, 15.5 HP I/C Series OHV, 15.5 HP Intek Series OHV, 15.5 HP PowerBuilt OHV, 16 HP Extended Life Series OHV, 16 HP Intek Series OHV, 16 HP Intek Series V-Twin OHV, 16 HP Vanguard V-Twin OHV (Horizontal), 16 HP Vanguard V-Twin OHV (Vertical), 16.5 HP Endurance Series OHV, 16.5 HP Intek I/C Series OHV, 16.5 HP Intek Series OHV, 16.5 HP PowerBuilt OHV, 17 HP Intek I/C Series OHV, 17 HP Intek Series OHV, 17.5 HP Extended Life Series OHV, 17.5 HP Intek Series OHV, 17.5 HP PowerBuilt OHV, 17.5 HP Professional Series OHV, 18 HP Extended Life Series OHV, 18 HP Extended Life Series V-Twin OHV, 18 HP Intek I/C Series OHV, 18 HP Intek Series OHV, 18 HP Intek Series V-Twin OHV, 18 HP Vanguard V-Twin OHV (Horizontal), 18 HP Vanguard V-Twin OHV (Vertical), 18.5 HP Extended Life Series OHV, 18.5 HP Intek I/C Series OHV, 18.5 HP Intek Series OHV, 18.5 HP PowerBuilt OHV, 18.5 HP Professional Series OHV, 19 HP Endurance Series OHV, 19 HP Intek I/C Series OHV, 19 HP Intek Series OHV, 19 HP Professional Series OHV, 19.5 HP Intek I/C Series OHV, 19.5 HP Intek Series OHV, 19.5 HP PowerBuilt OHV, 19.5 HP Professional Series OHV, 20 HP Extended Life Series OHV, 20 HP Extended Life Series V-Twin OHV, 20 HP I/C Series V-Twin OHV, 20 HP Intek Series OHV, 20 HP Intek Series V-Twin OHV, 20 HP Professional Series OHV, 20 HP Professional Series V-Twin OHV, 20 HP Vanguard V-Twin OHV (Horizontal), 20 HP Vanguard V-Twin OHV (Vertical), 21 HP I/C Series V-Twin OHV, 21 HP Intek Series OHV, 21 HP Intek Series V-Twin OHV, 21 HP Platinum Series OHV, 21 HP Professional Series OHV, 21 HP Vanguard V-Twin OHV (Horizontal), 21 HP Vanguard V-Twin OHV (Vertical), 22 HP Commercial Series V-Twin OHV, 22 HP Extended Life Series V-Twin OHV, 22 HP I/C Series V-Twin OHV, 22 HP Intek Series V-Twin OHV, 22 HP PowerBuilt Series V-Twin OHV, 23 HP Commercial Series V-Twin OHV, 23 HP EFI/ETC Vanguard V-Twin OHV (Horizontal), 23 HP Extended Life Series V-Twin OHV, 23 HP Intek Series V-Twin OHV, 23 HP Vanguard V-Twin OHV (Horizontal), 23 HP Vanguard V-Twin OHV (Vertical), 24 HP Commercial Series V-Twin OHV, 24 HP Extended Life Series V-Twin OHV, 24 HP Intek Series V-Twin OHV, 24 HP Vanguard V-Twin OHV (Vertical), 25 HP Commercial Series V-Twin OHV, 25 HP Extended Life Series V-Twin OHV, 25 HP Intek Series V-Twin OHV, 25 HP Professional Series V-Twin OHV, 25 HP Vanguard V-Twin OHV (Horizontal) Liquid Cooled, 26 HP Commercial Series V-Twin OHV, 26 HP EFi Vanguard V-Twin OHV (Vertical), 26 HP Extended Life Series V-Twin OHV, 26 HP Intek Series V-Twin OHV, 26 HP Vanguard V-Twin OHV (Vertical), 27 HP Commercial Series V-Twin OHV, 27 HP EFI Commercial Series V-Twin OHV, 27 HP Extended Life Series V-Twin OHV, 27 HP Intek Series V-Twin OHV, 27 HP Professional Series V-Twin OHV, 27 HP Vanguard V-Twin OHV (Horizontal) Liquid Cooled, 2700 CXi Commercial Series V-Twin OHV, 28 HP EFi Vanguard V-Twin OHV (Vertical), 28 HP Professional Series V-Twin OHV, 28 HP Vanguard V-Twin OHV (Horizontal) Liquid Cooled, 29 HP Vanguard V-Twin OHV (Horizontal), 30 HP Professional Series V-Twin OHV, 3000E Series OHV, 31 HP Vanguard V-Twin OHV (Horizontal), 3115 Series OHV, 3125 Intek OHV, 3125E Series OHV, 3125EX Series OHV, 3130 Intek OHV, 3130 Series OHV, 3130 Series PowerBuilt OHV, 3130E Series OHV, 3130EX Series OHV, 33 HP Vanguard V-Twin OHV (Horizontal), 35 HP Vanguard V-Twin OHV (Horizontal), 4000E Series OHV, 4000EX Series OHV, 4145E Series OHV, 4155E Series PowerBuilt OHV, 4155EX Series OHV, 4165 Series PowerBuilt OHV, 4175 Series Intek OHV, 4175EX Series OHV, 4185 Series Intek OHV, 4185EX Series OHV, 4195 Series Intek OHV, 4195EX Series OHV, 5210 Series Intek OHV, 5210PX Series Intek OHV, 7000 PXi Series V-Twin OHV, 7160 Series Intek V-Twin OHV, 7160EXi Intek V-Twin OHV, 7220CXi Commercial Series V-Twin OHV, 7220EXi Intek V-Twin OHV, 7220PXi Series V-Twin OHV, 8000 PXi Series V-Twin OHV, 8240 Professional Series V-Twin OHV, 8240EXi Series Intek V-Twin OHV , 8240PXi Series V-Twin OHV, 8270 Professional Series V-Twin OHV, 8270PXi Series V-Twin OHV, 8290CXi Commercial Series V-Twin OHV, PXi2000 Series V-Twin OHV, PXi2200 Series V-Twin OHV, PXi2300 Series V-Twin OHV, PXi2500 Professional Series V-Twin OHV
Used on selected type variants of models including:
10V332, 12V332, 12V336, 12V337, 12Y602, 161430, 161432, 161436, 161437, 161452, 161457, 185430, 185432, 185436, 185437, 185462, 185467, 193702, 193705, 193706, 193707, 195412, 195415, 195422, 195423, 195431, 195432, 195433, 195435, 195436, 195437, 195451, 195452, 195457, 19H236, 19L136, 19L232, 19L236, 19L237, 19L252, 19V336, 19V337, 202312, 202317, 202332, 202336, 202337, 202352, 202357, 202436, 202437, 203432, 203437, 203452, 203455, 206432, 206437, 206452, 206455, 206457, 20H132, 20H137, 20L132, 20L232, 20L235, 20L236, 20L237, 210807, 212702, 212707, 212902, 212907, 213432, 214707, 215702, 215705, 215707, 215802, 215805, 215807, 215872, 215877, 215902, 215907, 215972, 216902, 216907, 217702, 217802, 217805, 217807, 217877, 217902, 217907, 217972, 217976, 217977, 219707, 219802, 219806, 219807, 219872, 219902, 219906, 219907, 219972, 219977, 21A807, 21A877, 21A902, 21A907, 21A972, 21A977, 21B807, 21B877, 21B902, 21B906, 21B907, 21B972, 21B976, 21B977, 21R502, 21R507, 21R602, 21R607, 21R677, 21R702, 21R706, 21R707, 21R772, 21R777, 21R802, 21R806, 21R807, 21R872, 21R876, 21R877, 221431, 221432, 221433, 221435, 221436, 221437, 221452, 221457, 243431, 243432, 243434, 243436, 243437, 243451, 243452, 243457, 245430, 245432, 245435, 245436, 245437, 252702, 252707, 254412, 254415, 254416, 254417, 254421, 254422, 254425, 254426, 254427, 255702, 255707, 256702, 256705, 256707, 257702, 257705, 257707, 25E330, 25V336, 25V337, 260772, 260777, 261772, 261776, 261777, 280702, 280707, 280H07, 280J07, 280J77, 281702, 281706, 281707, 282H07, 282H77, 283702, 283707, 284H07, 284H77, 285H07, 285H77, 286702, 286707, 286H77, 287707, 287776, 287777, 28AH76, 28AH77, 28B702, 28B705, 28B706, 28B707, 28BH76, 28BH77, 28CH77, 28D702, 28D707, 28M706, 28M707, 28N707, 28N777, 28P777, 28Q777, 28S707, 28S777, 290772, 290777, 294440, 294442, 294446, 294447, 294772, 294775, 294776, 294777, 295342, 295346, 295347, 295440, 295442, 295446, 295447, 295772, 295777, 296442, 296446, 296447, 297340, 297347, 297440, 297447, 303437, 303440, 303442, 303445, 303446, 303447, 303707, 303772, 303775, 303776, 303777, 305440, 305442, 305445, 305446, 305447, 30544A, 305772, 305775, 305776, 305777, 311707, 311777, 312707, 312777, 313707, 313777, 31A507, 31A607, 31A677, 31A707, 31A777, 31B707, 31B775, 31C707, 31C777, 31E507, 31E577, 31E607, 31E677, 31E707, 31E777, 31E877, 31F707, 31F775, 31F777, 31G707, 31G777, 31H707, 31H777, 31L777, 31M777, 31M977, 31N607, 31N677, 31N707, 31N777, 31N807, 31P607, 31P677, 31P707, 31P777, 31P877, 31P977, 31Q507, 31Q577, 31Q677, 31Q777, 31R507, 31R577, 31R607, 31R677, 31R707, 31R777, 31R807, 31R875, 31R877, 31R907, 31R975, 31R976, 31R977, 31S777, 31S877, 31S977, 31U977, 326431, 326432, 326434, 326435, 326436, 326437, 331707, 331777, 331807, 331877, 331977, 33M677, 33M777, 33M977, 33R777, 33R877, 33S777, 33S877, 350442, 350445, 350446, 350447, 350772, 350775, 350776, 350777, 351442, 351446, 351447, 351772, 351776, 351777, 355447, 356442, 356445, 356446, 356447, 35644A, 356776, 356777, 35777A, 358447, 358772, 358776, 358777, 380442, 380447, 380772, 380777, 381442, 381446, 381447, 381772, 381777, 385442, 385446, 385447, 385777, 385877, 386442, 386446, 386447, 386777, 38E347, 401577, 4025A7, 4035A7, 403677, 404577, 4045A7, 405577, 405777, 406577, 406677, 406777, 407577, 407677, 407777, 40F777, 40G777, 40H777, 40N777, 40N877, 40R577, 40R677, 40R777, 40R877, 40S777, 40S877, 40T677, 40T876, 40T877, 40U777, 40U877, 441577, 441677, 441777, 442577, 445577, 445677, 445777, 445877, 445977, 446677, 446777, 44677A, 446877, 446977, 44C677, 44C777, 44C877, 44H777, 44J677, 44K777, 44L777, 44L977, 44M777, 44M977, 44N677, 44N777, 44N877, 44P777, 44P977, 44Q777, 44Q977, 44R577, 44R677, 44R777, 44R877, 44S577, 44S677, 44S777, 44S877, 44S977, 44T677, 44T777, 44T877, 44T977, 44U577, 44U677, 44U777, 44U877, 44X977, 44Y977, 472177, 473177, 474177, 49C877, 49E777, 49E877, 49J677, 49L977, 49M777, 49M877, 49M977, 49R977, 49S777, 49S877, 49T777, 49T877, 49V677, 49X977, 610177, 611177, 612177, 613177
PLEASE NOTE: Attempting to fit the incorrect part can have a dramatic affect on how your engine runs, it also risks causing damage to either the part, or the engine. If you're not sure of the exact part number for your engine, refer to the parts list specific to your engines Model, Type and Code numbers, or contact us for assistance.
