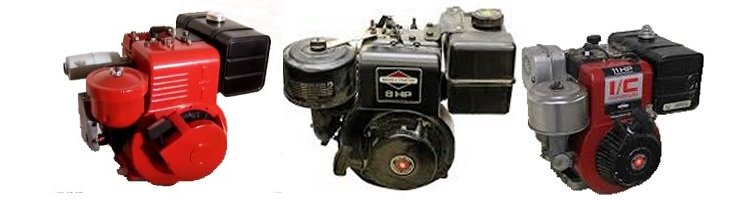

Briggs and Stratton Large Horizontal Single Cylinder Side Valve Engine Parts

Briggs&Stratton uk | Horizontal Single Cylinder 6 HP and Above Engine Spare Parts |  Briggs and Stratton Large Horizontal Single Cylinder Side Valve Engine Parts

Large Horizontal Crankshaft Side Valve Click Engine Image for more Information about this Engine Group

This series of engines are usually to be found on a variety of utility applications such as Tillers, Rotovators, Garden Tractors, Cylinder Mowers, Generators, Pumps, Bale Lifters, Go Carts etc.

They are side valve with the spark plug on top of the engine, set in the centre of the cylinder head cooling fins.

The fuel tank will either be at the rear with the carburettor mounted directly on it, or will be mounted to the top of the engine above the carb level. Some applications may have the tank mounted away from the engine.

The pull start will be on the side with the crankshaft emerging horizontally on the opposite side.

The Model, Type and Code numbers are either stamped into the metal engine cowling (on top next to the spark plug or down one of the flat sides usually behind the air filter), or on a small aluminium plate rivited to the face of the cowling
The Model number will begin either 14,17,19,22,23,24,25.

Briggs and Stratton Single Cylinder Repair Manual 270962


Quantity:

Briggs and Stratton Single Cylinder Repair Manual 270962


Price: 18.99

Approx shipping weight 780g

Repair manual for all single cylinder side valve engines built after 1981
Covers all you need to know!


Vintage Engine Repair Manual CE8069


Quantity:

Vintage Engine Repair Manual CE8069


Price: 24.30

Approx shipping weight 780g

Repair manual for engines dating 1919 to 1981
Includes Cast iron models A to ZZ and 5's to 320000
Aluminium engines 6B, 8B and 60000 to 253400


Fuel Fit Additive 992380


Quantity:

Fuel Fit Additive 992380


Price: 4.19 (Including VAT at 20%)

Approx shipping weight 130g

Briggs and Stratton Petrol additive for all 4 stroke and 2 stroke petrol engines
Prevents fuel deterioration during periods of non-use and generally aids engine efficiency
Essential for correct winter storage of lawnmowers etc

100 ml, treats 10 litres of fuel


Spark Plug 992300C


Quantity:

Spark Plug 992300C


Price: 4.39 (Including VAT at 20%)

Approx shipping weight 50g

Short reach spark plug for all Briggs and Stratton side valve engines


992356 Spark Plug Wrench


Quantity:

992356 Spark Plug Wrench


Price: 6.00 (Including VAT at 20%)

Approx shipping weight 120g

19mm/21mm Spark plug box wrench for 992041 spark plug


Throttle control 992015


Quantity:

Throttle control 992015


Price: 8.22 (Including VAT at 20%)

Approx shipping weight 105g

Throttle control and cable to fit many applications
1.35m long. End can be bent to suit
Negative action(Control pushed to fast, shortens inner wire)


Throttle control 992016


Quantity:

Throttle control 992016


Price: 8.22 (Including VAT at 20%)

Approx shipping weight 105g

Throttle control and cable to fit many applications
1.35m long. End can be bent to suit
Positive action(Control pushed to fast, lengthens inner wire)

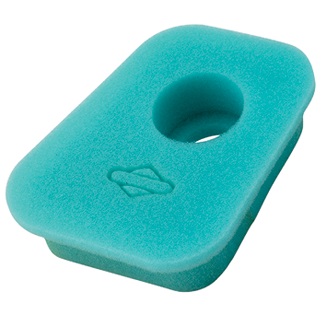

27987S Air Filter


Quantity:

27987S Air Filter


Price: 5.82 (Including VAT at 20%)

Approx shipping weight 20g

Foam air filter element for some 14 series horizontal crankshaft engines
Approx 14cm long x 11.5cm at its widest point

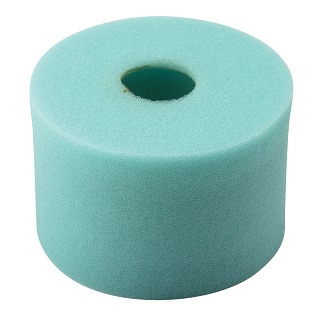

270093 Air Filter


Quantity:

270093 Air Filter


Price: 14.82 (Including VAT at 20%)

Approx shipping weight 180g

Air filter. Large round foam for some old 6HP - 14HP engines.
Approx 12cm diameter x 8cm high


496047 (390492) Filter Cartridge


Quantity:

496047 (390492) Filter Cartridge


Price: 23.22 (Including VAT at 20%)

Approx shipping weight 250g

Air filter cartridge and Pre filter.
Includes adapter for use when replacing foam filter 270209 and central support tube fitted to some old engines.
Approx 70mm high x 95mm diameter
Replaces 390492

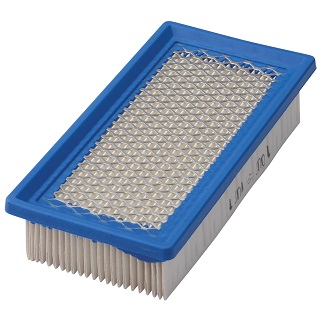

691643 Air Filter Cartridge


Quantity:

691643 Air Filter Cartridge


Price: 15.30 (Including VAT at 20%)

Approx shipping weight 140g

Paper air filter element for seleced horizontal crankshaft engines
Approx 16cm x 7.5cm paper dimensions. Paper folds run lengthways.


Pre filter 492889


Quantity:

Pre filter 492889


Price: 5.58 (Including VAT at 20%)

Approx shipping weight 10g

Foam pre filter for 691643 air filter cartridges


393957S Air Filter (also 845090)


Quantity:

393957S Air Filter (also 845090)


Price: 18.48 (Including VAT at 20%)

Approx shipping weight 290g

Paper air filter cartridge for some larger engines
Approx 11cm diameter x 9.5cm high with 5cm hole at each end


271794S Pre Filter


Quantity:

271794S Pre Filter


Price: 4.98 (Including VAT at 20%)

Approx shipping weight 20g

Foam pre filter for 393957S cartridge
Can be retro fitted to extend filter life


399968 Air Filter Cartridge


Quantity:

399968 Air Filter Cartridge


Price: 26.16 (Including VAT at 20%)

Approx shipping weight 720g

Oblong paper type air filter cartridge for selected 7HP, 8HP and 11HP horizontal crankshaft engines
Approx 22cm long x 8cm wide x 6.5cm high with 2 stud holes 12cm apart


271939 Pre Filter


Quantity:

271939 Pre Filter


Price: 4.08 (Including VAT at 20%)

Approx shipping weight 30g

Pre filter for 399968 cartridge


691643 Air Filter Cartridge


Quantity:

691643 Air Filter Cartridge


Price: 15.30 (Including VAT at 20%)

Approx shipping weight 140g

Paper air filter element for seleced horizontal crankshaft engines
Approx 16cm x 7.5cm paper dimensions. Paper folds run lengthways.


492889 Pre filter


Quantity:

492889 Pre filter


Price: 5.58 (Including VAT at 20%)

Approx shipping weight 10g

Foam pre filter for 691643 air filter cartridges


594200 (was 796530)/796532 Oil Drain Extension


Quantity:

594200 (was 796530)/796532 Oil Drain Extension


Price: 20.16 (Including VAT at 20%)

Approx shipping weight 140g

Extended oil drain pipe kit
Allows easier oil draining away from bodywork etc.
Includes 796530 drain pipe and 796532 Connector
Pipe can be clipped up out of the way when not in use
Can be retro fitted to any engine with 3/8" Pipe thread (approx 17mm thread outside diameter)


5401K Oil Drain Adaptor Kit


Quantity:

5401K Oil Drain Adaptor Kit


Price: 12.60 (Including VAT at 20%)

Approx shipping weight 70g

Oil drain adaptor and extension tube.
Quick drain sump plug valve and 20cm extension tube.
Fits most larger engines. (Sump plug thread approx 17mm outside diameter)


281658S Oil Filler Cap


Quantity:

281658S Oil Filler Cap


Price: 2.58 (Including VAT at 20%)

Approx shipping weight 10g

Screw in oil filler cap

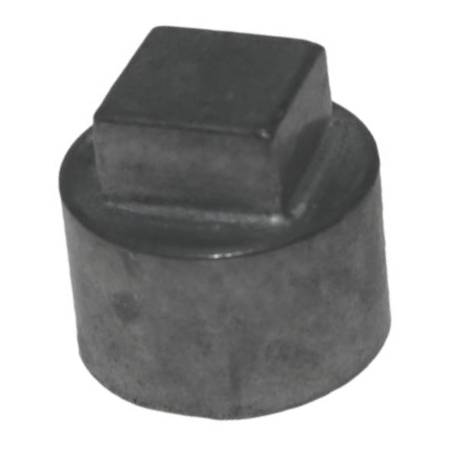

69345 Oil Filler Cap


Quantity:

69345 Oil Filler Cap


Price: 13.62 (Including VAT at 20%)

Approx shipping weight 30g

Metal oil filler cap for old horizontal engines. Includes seal

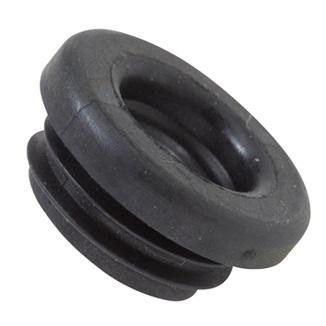

Dipstick Tube Seal 281370S


Quantity:

Dipstick Tube Seal 281370S


Price: 3.72 (Including VAT at 20%)

Approx shipping weight 10g

Oil filler/dipstick threaded rubber seal


Briggs and Stratton Fuel Tube 395051R


Quantity:

Briggs and Stratton Fuel Tube 395051R


Price: 3.66 (Including VAT at 20%)

Approx shipping weight 20g per 20cm

Fuel tube for most applications

Sold in units of 20cm. Multiple purchases will be supplied in one total length
Use with 710075 clamps.(sold seperately)


Fuel Tube clamp 710075


Quantity:

Fuel Tube clamp 710075


Price: 2.88 (Including VAT at 20%)

Approx shipping weight 10g

Plated fuel tube hose clamp. Fits 11mm O/D fuel tube 395051


Fuel Tube Clamp - Black 691038


Quantity:

Fuel Tube Clamp - Black 691038


Price: 2.82 (Including VAT at 20%)

Approx shipping weight 10g

Black fuel tube clamp. Fits 12mm O/D fuel hose
(Slightly smaller than 791850)


Fuel Tube Clamp - Green 791850


Quantity:

Fuel Tube Clamp - Green 791850


Price: 2.82 (Including VAT at 20%)

Approx shipping weight 10g

Green fuel tube clamp. Fits fuel tube over 12mm O/D
(Slightly larger than 691038)


Fuel Tap 698183


Quantity:

Fuel Tap 698183


Price: 6.12 (Including VAT at 20%)

Approx shipping weight 15g

In line fuel shut off valve supplied with 2 x 691038 tube clamp


592840 Fuel Shut Off Valve


Quantity:

592840 Fuel Shut Off Valve


Price: 25.74 (Including VAT at 20%)

Approx shipping weight 30g

Old style tank mounted fuel shut off valve (replaces 691940, 293934, 394387, 692302)
Note - the male thread tank outlet which this tap screws onto is no longer available



690612 Fuel Filter Assembly


Quantity:

690612 Fuel Filter Assembly


Price: 19.68 (Including VAT at 20%)

Approx shipping weight 95g

Glass bowl type fuel filter/valve assembly
Can be used as an upgrade from 592840


698182 Fuel Valve


Quantity:

698182 Fuel Valve


Price: 8.16 (Including VAT at 20%)

Approx shipping weight 20g

Fuel shut off valve. 90 degrees screw in.
Replaces old number 399517

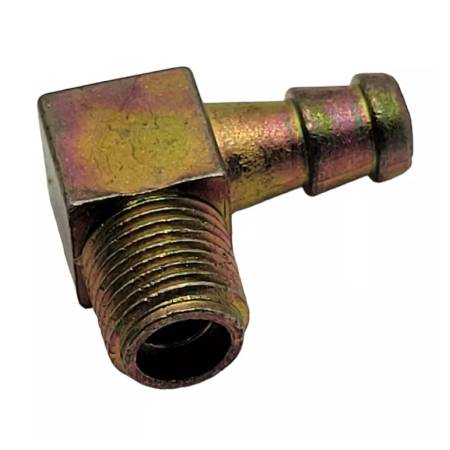

691609 Hose Connector


Quantity:

691609 Hose Connector


Price: 4.26 (Including VAT at 20%)

Approx shipping weight 20g

90 degree threaded hose connector.


Fuel Filter 298090S


Quantity:

Fuel Filter 298090S


Price: 4.20 (Including VAT at 20%)

Approx shipping weight 10g

Red in line fuel filter for gravity fed fuel systems


Fuel Filter 394358S


Quantity:

Fuel Filter 394358S


Price: 4.20 (Including VAT at 20%)

Approx shipping weight 10g

White in line fuel filter for pumped or higher pressure gravity fuel systems


Fuel Filter 691035


Quantity:

Fuel Filter 691035


Price: 7.50 (Including VAT at 20%)

Approx shipping weight 15g

Paper type in line fuel filter fitted in many pumped fuel systems


493982S Fuel Cap


Quantity:

493982S Fuel Cap


Price: 3.36 (Including VAT at 20%)

Approx shipping weight 35g

Fuel cap, metal. Thread O/D approx 38mm
Fits many 14 series engines (e.g.140202 etc.)

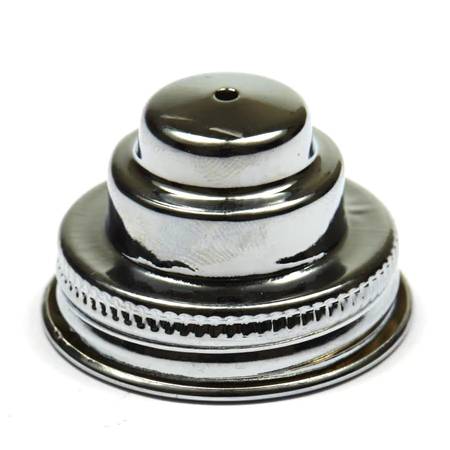

791545 (was 392305S) Fuel Cap


Quantity:

791545 (was 392305S) Fuel Cap


Price: 6.60 (Including VAT at 20%)

Approx shipping weight 35g

Fuel cap. Replaces 392305S & 392301
Tank thread O/D approx 48mm


795027 Fuel Cap (was 493988S)


Quantity:

795027 Fuel Cap (was 493988S)


Price: 5.52 (Including VAT at 20%)

Approx shipping weight 30g

Large plastic fuel cap. Fits plastic tank with large opening.
Fuel tank thread approx 56mm outside diameter.


Briggs and Stratton Engine Speed Tachometer 19200E


Quantity:

Briggs and Stratton Engine Speed Tachometer 19200E


Price: 17.57 (Including VAT at 20%)

Approx shipping weight 40g

RPM tachometer to accurately set engine speed
Easy to use and compact. Complete with instructions and wallet
Suits any engine

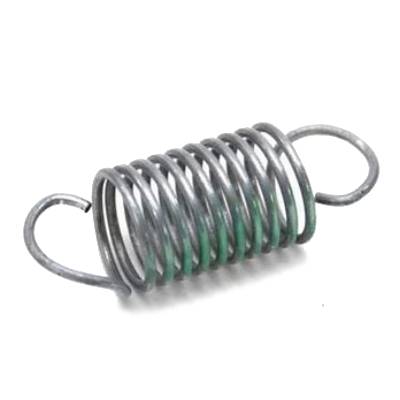

796260 (was 692208) Governor Spring


Quantity:

796260 (was 692208) Governor Spring


Price: 4.98 (Including VAT at 20%)

Approx shipping weight 10g

Governor spring for mechanically governed horizontal crankshaft engines with
governor spring behind fuel tank lower bracket.
Suitable replacement for 260695 and others.

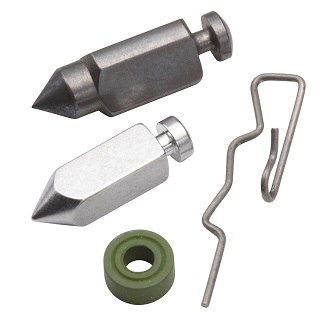

299060 Needle Valve Kit


Quantity:

299060 Needle Valve Kit


Price: 13.80 (Including VAT at 20%)

Approx shipping weight 20g

Needle valve kit with screw in metal outer
Fitted to most tank mounted carburettors

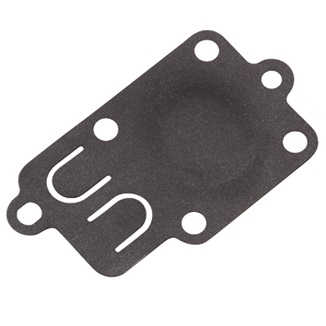

Carb Diaphragm 270026


Quantity:

Carb Diaphragm 270026


Price: 3.48 (Including VAT at 20%)

Approx shipping weight 5g

Carburetor pump diaphram for many small horizontal crankshaft engines
Secured with 4 screws

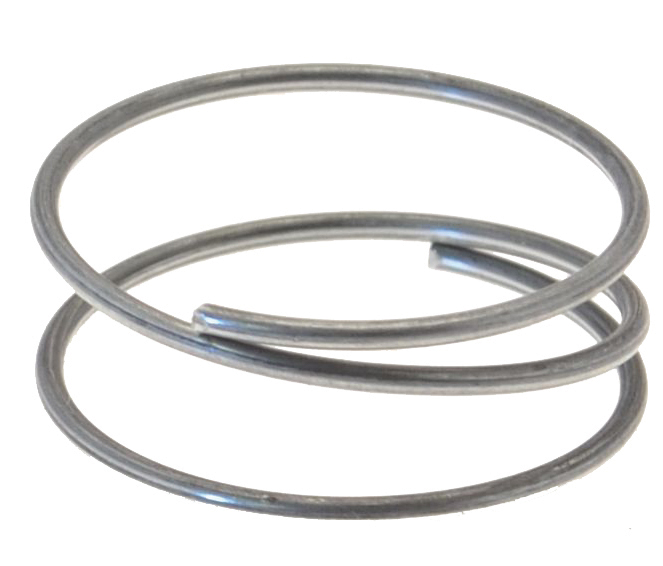

Diaphragm Spring 692206


Quantity:

Diaphragm Spring 692206


Price: 2.22 (Including VAT at 20%)

Approx shipping weight 5g

Diaphram pump spring

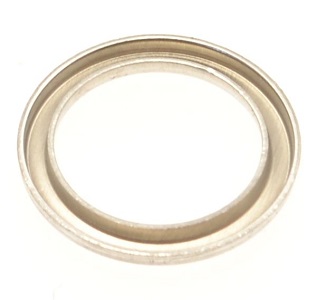

Cap 690766


Quantity:

Cap 690766


Price: 2.46 (Including VAT at 20%)

Approx shipping weight 5g

Cap, for pump spring 692206

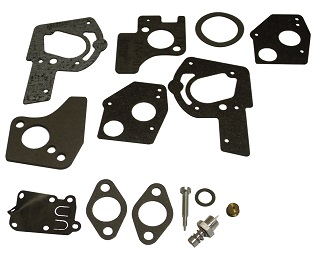

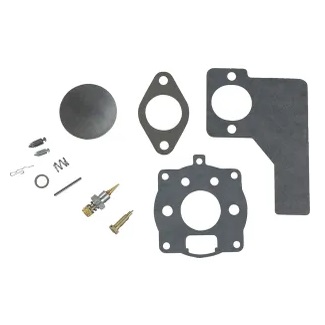

495606 Carburettor Overhaul Kit


Quantity:

495606 Carburettor Overhaul Kit


Price: 27.36 (Including VAT at 20%)

Approx shipping weight 100g

495606 (was 494624) Carburettor overhaul kit
Includes intake and tank gaskets, pump diaphram and adjustment needles
Fits engines which use 272409S, 272996 or 692241 tank gaskets (see below)


272409S Carb Gasket


Quantity:

272409S Carb Gasket


Price: 2.64 (Including VAT at 20%)

Approx shipping weight 10g

Carbretor to tank gasket for selected Series 14 horizontal crankshaft engines


497413S Pick Up Pipe


Quantity:

497413S Pick Up Pipe


Price: 6.72 (Including VAT at 20%)

Approx shipping weight 10g

Fuel pick up pipe
Fits horizontal crankshaft engines with model starting 14
Approx 40mm overall length


27355S Manifold Gasket


Quantity:

27355S Manifold Gasket


Price: 2.22 (Including VAT at 20%)

Approx shipping weight 5g

Inlet manifold gasket for many small horizontal crankshaft engines
Two fitted in most instances to reduce heat transfer to carburettor
Approx 3.5cm between bolt hole centres


692214 Gasket


Quantity:

692214 Gasket


Price: 4.56 (Including VAT at 20%)

Approx shipping weight 10g

Intake gasket. Bolt hole centres approx 52mm apart.
Central opening approx 28mm diameter


691885 Intake Gasket


Quantity:

691885 Intake Gasket


Price: 5.28 (Including VAT at 20%)

Approx shipping weight

Intake gasket for 17,19 & 22 series horizontal engines


27828S Intake Gasket


Quantity:

27828S Intake Gasket


Price: 2.64 (Including VAT at 20%)

Approx shipping weight 10g

Gasket, intake. 14, 17 and 19 series engines.
Gasket, intake elbow. Bolt hole centres approx 43mm apart


23222 Nozzle


Quantity:

23222 Nozzle


Price: 17.94 (Including VAT at 20%)

Approx shipping weight 10g

Brass nozzle for small two piece carburettor


27917 Gasket


Quantity:

27917 Gasket


Price: 3.84 (Including VAT at 20%)

Approx shipping weight 5g

Carburettor bowl gasket for small two piece carburettors that have 4 screrws holding the top and bottom halves together


293478 Needle and Seat


Quantity:

293478 Needle and Seat


Price: 25.50 (Including VAT at 20%)

Approx shipping weight 10g

Inlet needle and screw in brass seat for small two piece carburettor which has 4 screws holding top and bottom halves


27918 Gasket


Quantity:

27918 Gasket


Price: 2.76 (Including VAT at 20%)

Approx shipping weight 5g

Gasket, carb body. For larger Horizontal crankshaft engines that have 3 screws holding the two carburettor halves together. Approx 65mm diameter excluding screw lugs.
Note this gasket has only two holes either side of the central opening rather than three (see 27034 below)


27034 Gasket


Quantity:

27034 Gasket


Price: 2.70 (Including VAT at 20%)

Approx shipping weight

Gasket, carb body. For larger Horizontal crankshaft engines that have 3 screws holding the two carburettor halves together. Approx 65mm diameter excluding screw lugs.
Note this gasket has three holes either side of the central opening rather than two (see 27918 above)


270684 Gasket


Quantity:

270684 Gasket


Price: 3.84 (Including VAT at 20%)

Approx shipping weight 10g

Gasket, Carb mounting
Bolt hole centres approx 47mm apart. Central opening 26mm diameter


692215 Gasket


Quantity:

692215 Gasket


Price: 4.86 (Including VAT at 20%)

Approx shipping weight 10g

Carb bowl gasket
4 screw
Approx 70mm overall width.


492024 Carb overhaul kit


Quantity:

492024 Carb overhaul kit


Price: 38.40 (Including VAT at 20%)

Approx shipping weight 80g

Carburettor overhaul kit. For Side Valve 19 series engine with 4 screw carburettor


394989 Carb Overhaul Kit


Quantity:

394989 Carb Overhaul Kit


Price: 33.06 (Including VAT at 20%)

Approx shipping weight 80g

Carburettor overhaul kit
No longer contains long brass nozzle (available seperately)
Suits many older 22, 25, 24 & 32 series side valve engines


394681 Needle Kit


Quantity:

394681 Needle Kit


Price: 6.96 (Including VAT at 20%)

Approx shipping weight 5g

Needle & seat. Includes earlier (seperate seat, square section needle) and later(tip seating, triangle section) needles. Instructions included. For gravity fed carburettor.


394683 Needle & Seat


Quantity:

394683 Needle & Seat


Price: 25.44 (Including VAT at 20%)

Approx shipping weight 5g

Needle and seat. For engines with fuel pump.


230005 Valve


Quantity:

230005 Valve


Price: 7.44 (Including VAT at 20%)

Approx shipping weight 5g

Aluminium high speed needle valve for small two piece carburettor.


68987 Gasket


Quantity:

68987 Gasket


Price: 2.40 (Including VAT at 20%)

Approx shipping weight 5g

Intake manifold to carburettor gasket for small two piece carb with 3 screws holding top and bottom halves together. Bolt hole centres approx 38mm apart, central opening 18mm diameter


281165S Carburetor Bowl Seal


Quantity:

281165S Carburetor Bowl Seal


Price: 6.18 (Including VAT at 20%)

Approx shipping weight 5g

Carburetor rubber bowl seal for Walbro carburettor (LMT on body)
Approx 5cm outside diameter


692255 Washer


Quantity:

692255 Washer


Price: 3.60 (Including VAT at 20%)

Approx shipping weight 5g

Fibre carburetor bowl lower seal washer for walbro carburettor (LMT on body)
Approx 8mm inside diameter


494381 Float


Quantity:

494381 Float


Price: 15.36 (Including VAT at 20%)

Approx shipping weight 10g

Carburettor float


691782 Needle Valve


Quantity:

691782 Needle Valve


Price: 18.00 (Including VAT at 20%)

Approx shipping weight 5g

Inlet needle valve. For Walbro carburettor
Rubberised Viton tip. Has small spring loaded peg at back end


692317 Carburettor Hose Connector


Quantity:

692317 Carburettor Hose Connector


Price: 7.08 (Including VAT at 20%)

Approx shipping weight 15g

Hose connector for Walbro LMT carburettor
Nylon - push fit into carb.


691886 Gasket


Quantity:

691886 Gasket


Price: 11.76 (Including VAT at 20%)

Approx shipping weight 10g

Intake gasket. Walbro carburettor to manifold and manifold to cylinder.
Bolt hole centres approx 55mm apart.
45 degree bend with large heat shield area.


697843 Starter Pulley and Spring


Quantity:

697843 Starter Pulley and Spring


Price: 28.86 (Including VAT at 20%)

Approx shipping weight 185g

Recoil starter pulley and spring assy for larger engines which have nylon pawls
(Approx 13.5cm diameter)


ST1 Starter Pawls & Plate


Quantity:

ST1 Starter Pawls & Plate


Price: 13.26 (Including VAT at 20%)

Approx shipping weight 20g

Starter pawls & retaining plate for engines with later (697843) type starter pulley
Parts Included - 2 x 281505S pawl, 692299 plate & 691855 friction spring


691696 Screw


Quantity:

691696 Screw


Price: 3.60 (Including VAT at 20%)

Approx shipping weight 10g

Screw for retaining plastic pawl plate


692188 Recoil Rope


Quantity:

692188 Recoil Rope


Price: 6.00 (Including VAT at 20%)

Approx shipping weight 35g

5mm x 1.6m long recoil rope for many larger engines. Soft white


295871 Recoil Pulley


Quantity:

295871 Recoil Pulley


Price: 10.38 (Including VAT at 20%)

Approx shipping weight 185g

Recoil pulley for 5HP + engines with square drive starter clutch
Comes with rope. Approx 13.5cm diameter


490179 Briggs & Stratton Recoil Starter Spring


Quantity:

490179 Briggs & Stratton Recoil Starter Spring


Price: 10.98 (Including VAT at 20%)

Approx shipping weight 120g

Recoil rewind spring for older Sprint, Classic & Quattro engines with clutch type recoil and white pulley


399671 Briggs & Stratton Parts Starter Clutch


Quantity:

399671 Briggs & Stratton Parts Starter Clutch


Price: 30.48 (Including VAT at 20%)

Approx shipping weight 370g

Square drive starter clutch for older Sprint, Classic & Quattro engines


690582 Washer


Quantity:

690582 Washer


Price: 3.90 (Including VAT at 20%)

Approx shipping weight 5g

Spring washer. Fits below starter clutch or flywheel nut.


19244 Starter Clutch Wrench


Quantity:

19244 Starter Clutch Wrench


Price: 5.75 (Including VAT at 20%)

Approx shipping weight 500g

Older type starter clutch removal tool
Sits over the clutch to enable standard socket set fitting


490652 Starter Grip


Quantity:

490652 Starter Grip


Price: 5.22 (Including VAT at 20%)

Approx shipping weight 55g

Recoil starter large rubber grip with plastic insert
Fits 5mm diameter rope 692188 and pulley 295871


497595 Starter Motor


Quantity:

497595 Starter Motor


Price: 108.84 (Including VAT at 20%)

Approx shipping weight 2.5kg

497595 Starter motor. For 28Q777 Vanguard engine fitted with 16 tooth plastic gear starter.
With 16 tooth plastic pinion gear. 3 5/8" Housing
NOTE - Models 260777 and 261777 Vanguard starter motor is no longer available.


795121 (was 499521) Starter motor


Quantity:

795121 (was 499521) Starter motor


Price: 138.12 (Including VAT at 20%)

Approx shipping weight 2.75kg

Starter motor
Has 16 tooth plastic drive gear and 4 9/16" housing length


695708 Starter Gear


Quantity:

695708 Starter Gear


Price: 6.84 (Including VAT at 20%)

Approx shipping weight 20g

16 tooth plastic starter gear for most starter motors


696541 Starter Drive


Quantity:

696541 Starter Drive


Price: 25.80 (Including VAT at 20%)

Approx shipping weight 180g

Electric starter motor drive kit for 28Q777 Vanguard engines fitted with 16 tooth plastic starter gear.
Plastic drive gear and "c" clip type retainer


691265 Starter 'C' Clip


Quantity:

691265 Starter 'C' Clip


Price: 3.48 (Including VAT at 20%)

Approx shipping weight 5g

'C' clip retainer for 28Q777 starter motors


696537 Ring Gear Kit


Quantity:

696537 Ring Gear Kit


Price: 47.52 (Including VAT at 20%)

Approx shipping weight 520g

696537 Flywheel ring gear. For 28Q777 Vanguard engine fitted with replaceable ring gear.
Updates older plastic ring gear to aluminium
Approx. 21cm diameter
Includes mounting parts, small motor gear, retaining pin and 'C' clip
NOTE - Models 260777 and 261777 Vanguard ring gear is no longer available.


691641 Pin


Quantity:

691641 Pin


Price: 3.18 (Including VAT at 20%)

Approx shipping weight 10g

Retaining pin. For pin retained started gears


696540 Starter Drive


Quantity:

696540 Starter Drive


Price: 24.42 (Including VAT at 20%)

Approx shipping weight 180g

Electric starter motor drive kit for most earlier starter motors
Plastic drive gear and pin type retainer.(also suits early models without return spring & cage)


691656 Starter Solenoid


Quantity:

691656 Starter Solenoid


Price: 18.18 (Including VAT at 20%)

Approx shipping weight 200g

691656 Starter Solinoid, single poll
Please note - starter solenoids are generally originally provided by the equipment manufacturer not Briggs and Stratton
This is a fairly universal soleniod that fits most applications however, if you wish to replace the original exactly, a replacement would need to be obtained through the equipment (mower etc.) manufacturer


692318 Ignition Switch


Quantity:

692318 Ignition Switch


Price: 21.66 (Including VAT at 20%)

Approx shipping weight 120g

Indak ignition key switch
Please check wiring details pop-up below as some equipment manufacturers use similar looking switches with differing pin positions


691959 Ignition Key Set


Quantity:

691959 Ignition Key Set


Price: 8.10 (Including VAT at 20%)

Approx shipping weight 10g

Indak Ignition key set. Contains two keys
Flat profile. (see pop up link below for shape) Fits most electric start machines


294599S Exhaust Muffler


Quantity:

294599S Exhaust Muffler


Price: 18.72 (Including VAT at 20%)

Approx shipping weight 400g

Cigar type muffler with approx 26mm o/d thread (3/4 NPT)
16cm overall length


690453 Locknut


Quantity:

690453 Locknut


Price: 3.12 (Including VAT at 20%)

Approx shipping weight 25g

Muffler locknut for 294599S Muffler
3/4" NPT thread approx 26mm thread O/D


692304 Muffler


Quantity:

692304 Muffler


Price: 31.14 (Including VAT at 20%)

Approx shipping weight 800g

Exhaust muffler for 7HP and 8HP engine. Includes bolts, lockplate and gasket
Approx 10cm Square x 7cm Deep


796956 (was 393757) Deflector


Quantity:

796956 (was 393757) Deflector


Price: 6.48 (Including VAT at 20%)

Approx shipping weight 80g

Exhaust deflector. Includes screws.
Screw hole centres diameter approx 65mm


692237 Exhaust Gasket


Quantity:

692237 Exhaust Gasket


Price: 4.98 (Including VAT at 20%)

Approx shipping weight 5g

Exahust gasket
Bolt hole centres approx 40mm apart


391569S Exhaust


Quantity:

391569S Exhaust


Price: 39.36 (Including VAT at 20%)

Approx shipping weight 1.2kg

Exhaust. Screw in type for 10HP and above side valve engines.
Approx 13cm (5") Pipe length, 21cm (8") overall length, 11cm (4") Muffler Diameter.
1" NPT Thread (Approx 33mm O/D)


691808 Locknut


Quantity:

691808 Locknut


Price: 4.80 (Including VAT at 20%)

Approx shipping weight 15g

Locknut, muffler. For 391569S and other 1" NPT (approx 33mm thread O/D) Exhausts


691874 Exhaust Muffler


Quantity:

691874 Exhaust Muffler


Price: 47.64 (Including VAT at 20%)

Approx shipping weight 1.5kg

Muffler, square lo tone. Includes bolts heat shield and gasket
To fit side valve model 22 and 25 engines
Approx 11cm x 12cm x 9cm deep. Bolt hole centres approx 4.8cm apart


795036 (was 393761) Deflector Muffler


Quantity:

795036 (was 393761) Deflector Muffler


Price: 8.10 (Including VAT at 20%)

Approx shipping weight 75g

Exhaust deflector. Includes screws
Fits many larger engine mufflers


692236 Exhaust Gasket


Quantity:

692236 Exhaust Gasket


Price: 3.66 (Including VAT at 20%)

Approx shipping weight 30g

692236 Exhaust gasket. Fits 10HP and above engines.
Bolt hole centres approx 48mm apart


272163S Gasket-Cylinder Head


Quantity:

272163S Gasket-Cylinder Head


Price: 8.70 (Including VAT at 20%)

Approx shipping weight 40g

Head gasket for 7HP and 8HP side valve engines


498534 Gasket Set, Head


Quantity:

498534 Gasket Set, Head


Price: 18.00 (Including VAT at 20%)

Approx shipping weight 50g

Cylinder and valve gasket set for 17 & 19 Series (eg. 176432, 192407 etc) single cylinder sidevalve engines.
Model
For all decoke and valve work


692221 (was 27750) Crankcase gasket


Quantity:

692221 (was 27750) Crankcase gasket


Price: 4.50 (Including VAT at 20%)

Approx shipping weight 40g

692221 Crankcase gasket. 14, 17 and 19 series engines


271866S Head Gasket


Quantity:

271866S Head Gasket


Price: 7.02 (Including VAT at 20%)

Approx shipping weight 60g

Head gasket for 10HP+ single cylinder engines
For Vertical crankshaft side valve engines whose model starts with 22 and 25(eg 220407, 254707 etc.)


272164 Head Gasket


Quantity:

272164 Head Gasket


Price: 12.06 (Including VAT at 20%)

Approx shipping weight 30g

Head gasket for selected model 25 horizontal crankshaft engines


498537 Gasket Set, Head


Quantity:

498537 Gasket Set, Head


Price: 24.18 (Including VAT at 20%)

Approx shipping weight 120g

10HP and above Head and valve gasket set
For engines whose model starts with 25.(eg 253702 etc.)
Includes Head, valve chest, intake and exhaust gaskets.
Note different intake gasket to 498538 below


498538 Gasket Set, Head


Quantity:

498538 Gasket Set, Head


Price: 20.88 (Including VAT at 20%)

Approx shipping weight 50g

10HP and above Head and valve gasket set
For engines whose model starts with 25.(eg 253702 etc.)
Includes Head, valve chest, intake and exhaust gaskets.
Note different intake gasket to 498537 above


692281 Gasket


Quantity:

692281 Gasket


Price: 4.50 (Including VAT at 20%)

Approx shipping weight 20g

Crankcase gasket. For side valve horizontal crankshaft engines whose model number begins 22 or 25


27803S Valve Cover Gasket


Quantity:

27803S Valve Cover Gasket


Price: 2.46 (Including VAT at 20%)

Approx shipping weight 5g

Valve chest cover gasket. Screw hole centres approx 88mm apart
For Engine Models 17,19, 22, 25, 28 & 31


692230 Head Gasket


Quantity:

692230 Head Gasket


Price: 12.24 (Including VAT at 20%)

Approx shipping weight 40g

Head gasket. For 23 and 24 series cast iron cylinder engine


692231 Head Gasket


Quantity:

692231 Head Gasket


Price: 11.46 (Including VAT at 20%)

Approx shipping weight 20g

Cylinder head gasket for 32 series cast iron cylinder engine


294606S Seal


Quantity:

294606S Seal


Price: 5.34 (Including VAT at 20%)

Approx shipping weight 10g

Oil seal. Approx 34mm O/D x 24mm I/D


391086S Seal-Oil


Quantity:

391086S Seal-Oil


Price: 3.84 (Including VAT at 20%)

Approx shipping weight 10g

Oil seal.
Approx 42mm O/D x 28mm I/D


291675S Oil Seal


Quantity:

291675S Oil Seal


Price: 4.26 (Including VAT at 20%)

Approx shipping weight 15g

Lower oil seal. For model 22 and 25 engine.
O/D approx 48mm I/D approx 34mm


690662 Nut


Quantity:

690662 Nut


Price: 4.80 (Including VAT at 20%)

Approx shipping weight 35g

Nut, crankshaft/flywheel
Required for puller use on engines which have a square drive rewind starter clutch


19165 Puller - Medium


Quantity:

19165 Puller - Medium


Price: 11.05 (Including VAT at 20%)

Approx shipping weight 160g

Flywheel puller for mid range engines
Distance between outer hole centres approx 51mm
If your engine has a square drive starter clutch holding down the flywheel, you will also require 690662 nut (see below)


19203 Puller - Large


Quantity:

19203 Puller - Large


Price: 10.97 (Including VAT at 20%)

Approx shipping weight 230g

Flywheel puller for larger engines
Distance between outer hole centres approx 72mm
Includes long and short bolt sets


690798/691044 Cable Clamp & Screw


Quantity:

690798/691044 Cable Clamp & Screw


Price: 7.14 (Including VAT at 20%)

Approx shipping weight 10g

Clamp and screw, throttle cable


19368 Ignition Spark Tester


Quantity:

19368 Ignition Spark Tester


Price: 16.37 (Including VAT at 20%)

Approx shipping weight 90g

Ignition spark tester
Tests the ignition system for efficiency
For all engines


398811 Ignition Armature


Quantity:

398811 Ignition Armature


Price: 51.72 (Including VAT at 20%)

Approx shipping weight 380g

Electronic ignition armature magneto coil for 6HP and above single cylinder side valve engines with 2 laminated leg coil/armature.
Also used to convert older points system (coil 298968) engines to electronic ignition
Mounting hole centres approx 6.4cm apart
Note - This cannot replace the now obsolete pre 1963 3 leg coil (has 4 screws)


692390 Stop Wire


Quantity:

692390 Stop Wire


Price: 3.42 (Including VAT at 20%)

Approx shipping weight 20g

Stop wire. Approx 42cm long
Can also be used on old points ignition systems by cutting off the spade connector.


294628 Breaker Points


Quantity:

294628 Breaker Points


Price: 18.18 (Including VAT at 20%)

Approx shipping weight 35g

Contact breaker points for most points ignition engines
(Fitted under the flywheel) Includes spring compressing tool


65704S Points Plunger


Quantity:

65704S Points Plunger


Price: 3.78 (Including VAT at 20%)

Approx shipping weight 5g

Points plunger. (pushes up 294628 points arm to open contacts)


29667 Breaker


Quantity:

29667 Breaker


Price: 24.24 (Including VAT at 20%)

Approx shipping weight 60g

Breaker points. For old 14 and 17 series engines. Note - These are for ignition sets where the condenser does not form one of the contact points and has a wire emerging from one end. (see below)


29861 Condenser


Quantity:

29861 Condenser


Price: 17.64 (Including VAT at 20%)

Approx shipping weight 50g

Condenser. For old 14 and 17 series engines. Note - These are for ignition sets where the condenser does not form one of the contact points and has a wire emerging from one end.


66538S/493880S Terminal & Elbow


Quantity:

66538S/493880S Terminal & Elbow


Price: 5.46 (Including VAT at 20%)

Approx shipping weight 10g

Spark plug terminal (493880S) and rubber elbow (66538S) to fit all side valve HT leads


793351 Spark Plug Shield


Quantity:

793351 Spark Plug Shield


Price: 7.50 (Including VAT at 20%)

Approx shipping weight 40g

Metal shielded ignition terminal


794360 Voltage Regulator (was 691188)


Quantity:

794360 Voltage Regulator (was 691188)


Price: 42.42 (Including VAT at 20%)

Approx shipping weight 80g

12 Volt regulator and rectifier for many larger electric start engines
Approx 4cm square. Yellow lead with round connector, Red lead with round connector


845907 (797375) Voltage Regulator


Quantity:

845907 (797375) Voltage Regulator


Price: 43.44 (Including VAT at 20%)

Approx shipping weight 170g

12 Volt regulator and rectifier for many larger electric start engines
Approx 5.5cm x 8cm. 2 Yellow leads with rectangular connector, Red lead with round connector


222698S Briggs & Stratton Spare Parts Flywheel key


Quantity:

222698S Briggs & Stratton Spare Parts Flywheel key


Price: 2.52 (Including VAT at 20%)

Approx shipping weight 5g

Flywheel key to fit most engines
Approx. 14mm long x 3mm x 4mm


Unlisted parts page

Briggs&Stratton uk | Horizontal Single Cylinder 6 HP and Above Engine Spare Parts |  Briggs and Stratton Large Horizontal Single Cylinder Side Valve Engine Parts

©copyright 2005 G.Campbell. All rights reserved
(see terms and conditions)

spacer image
