Briggs and Stratton 550 and 750 Series Horizontal Crankshaft Engine Spare Parts

Briggs&Stratton uk | Horizontal Crankshaft 2-6.5 HP Engine Spares | Horizontal Crankshaft 2-6.5 HP OHV |  Briggs and Stratton 550 and 750 Series Horizontal Crankshaft Engine Spare Parts

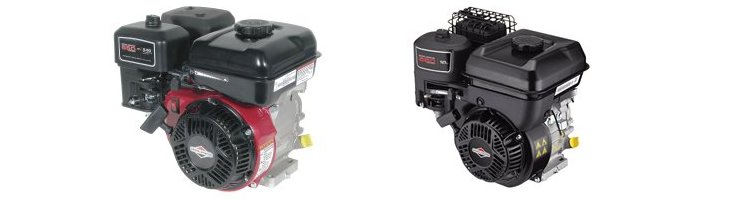

550 and 750 Horizontal Engine Parts Click Engine Image for more Information about this Engine Group

These engines are usually to be found on a variety of utility applications such as Tillers, Rotovators,
Cylinder Mowers, Cement Mixers, Scarifiers, Generators, Pumps, Bale Lifters, Go Carts etc.

They are overhead valve with the spark plug set deep to one side or the top of a rocket cover.

The fuel tank will be mounted directly on top and may be plastic or metal.

The cylinder and piston are at 45 degrees to the vertical giving the engine a compact look

The pull start will be on the side with the crankshaft emerging horizontally on the opposite side.

Some Models may have an integral reduction gearbox on the output side

The Model, Type and Code numbers are etched into the rear of the cylinder block and also on a sticker on the side
of the fuel tank
The Model number will begin with 083 or 1062

381569EN Repair Manual


Quantity:

381569EN Repair Manual


Price: 10.49

Approx shipping weight 220g

Repair Manual for 550 horizontal crankshaft OHV engine


Fuel Fit Additive 992380


Quantity:

Fuel Fit Additive 992380


Price: 4.19 (Including VAT at 20%)

Approx shipping weight 130g

Briggs and Stratton Petrol additive for all 4 stroke and 2 stroke petrol engines
Prevents fuel deterioration during periods of non-use and generally aids engine efficiency
Essential for correct winter storage of lawnmowers etc.

100 ml, treats 10 litres of fuel


Spark Plug 992304


Quantity:

Spark Plug 992304


Price: 4.39 (Including VAT at 20%)

Approx shipping weight 50g

RC12YC Spark plug for all OHV engines


992355 (was 6095E) Spark Plug Wrench


Quantity:

992355 (was 6095E) Spark Plug Wrench


Price: 6.00 (Including VAT at 20%)

Approx shipping weight 120g

16mm/19mm Spark plug box wrench for 992304 spark plug


992015 Throttle control


Quantity:

992015 Throttle control


Price: 8.22 (Including VAT at 20%)

Approx shipping weight 105g

Throttle control and cable to fit many applications
1.35m long. End can be bent to suit
Negative action(Control pushed to fast, shortens inner wire)


992016 Throttle control


Quantity:

992016 Throttle control


Price: 8.22 (Including VAT at 20%)

Approx shipping weight 105g

Throttle control and cable to fit many applications
1.35m long. End can be bent to suit
Positive action(Control pushed to fast, lengthens inner wire)


690798/691044 Cable Clamp & Screw


Quantity:

690798/691044 Cable Clamp & Screw


Price: 7.14 (Including VAT at 20%)

Approx shipping weight 10g

Clamp and screw, throttle cable


796970  Air Filter


Quantity:

796970 Air Filter


Price: 12.36 (Including VAT at 20%)

Approx shipping weight 90g

Air filter for 550 series engine. Oval approx 8.5cm long x 6cm high
Includes Pre filter


590601 Air Filter


Quantity:

590601 Air Filter


Price: 11.82 (Including VAT at 20%)

Approx shipping weight 150g

Top mount oval air filter element for 750 Horizontal crankshaft engine.
Approx 10cm long x 7cm wide x 7cm high
Includes pre filter.


696263 Air Filter


Quantity:

696263 Air Filter


Price: 7.26 (Including VAT at 20%)

Approx shipping weight 20g

Side mount rectangular air filter cartridge for 750 sereis horizontal engine.
Approx 12cm x 9.5cm inner rectangle with overhanging edges


Fuel Filter 394358S


Quantity:

Fuel Filter 394358S


Price: 4.20 (Including VAT at 20%)

Approx shipping weight 10g

White in line fuel filter for pumped or higher pressure gravity fuel systems


794641 Fuel Cap


Quantity:

794641 Fuel Cap


Price: 6.12 (Including VAT at 20%)

Approx shipping weight 50g

Fuel cap. Bayonet fitting approx 7cm outside diameter


792917 Fuel Strainer


Quantity:

792917 Fuel Strainer


Price: 5.04 (Including VAT at 20%)

Approx shipping weight 10g

Fuel strainer. Fits into tank opening
Approx 35mm hight. fits tank opening approx 35mm diameter


797346 Outlet


Quantity:

797346 Outlet


Price: 5.40 (Including VAT at 20%)

Approx shipping weight 20g

Fuel tank outlet with filter for many horizontal engine fuel tanks
Approx 70mm overall length (brass fitting 35mm) with 10mm outside diameter thread
Includes O Ring seal


Briggs and Stratton Fuel Tube 395051R


Quantity:

Briggs and Stratton Fuel Tube 395051R


Price: 3.66 (Including VAT at 20%)

Approx shipping weight 20g per 20cm

Fuel tube for most applications

Sold in units of 20cm. Multiple purchases will be supplied in one total length
Use with 710075 clamps.(sold seperately)


Fuel Tube clamp 710075


Quantity:

Fuel Tube clamp 710075


Price: 2.88 (Including VAT at 20%)

Approx shipping weight 10g

Plated fuel tube hose clamp. Fits 11mm O/D fuel tube 395051


Fuel Tube Clamp - Black 691038


Quantity:

Fuel Tube Clamp - Black 691038


Price: 2.82 (Including VAT at 20%)

Approx shipping weight 10g

Black fuel tube clamp. Fits 12mm O/D fuel hose
(Slightly smaller than 791850)

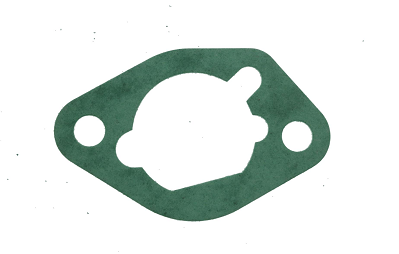

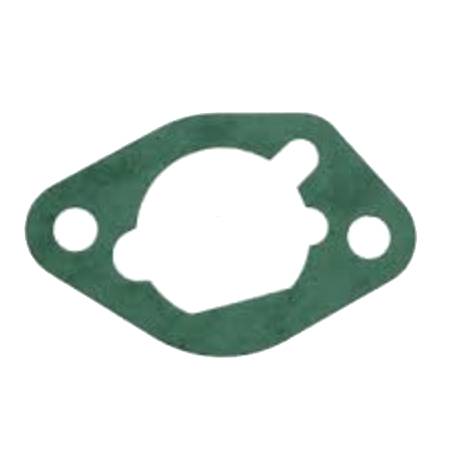

591013 Air Filter Gasket


Quantity:

591013 Air Filter Gasket


Price: 2.40 (Including VAT at 20%)

Approx shipping weight 5g

Air filter gasket for 550 Horizontal crankshaft engine
Distance between bolt hole centres approx 43mm

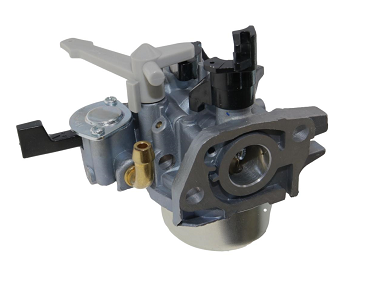

592236 Carburettor


Quantity:

592236 Carburettor


Price: 31.44 (Including VAT at 20%)

Approx shipping weight 280g

Carburettor for 550 Horizontal crankshaft engine
Includes fuel valve, choke lever and gaskets

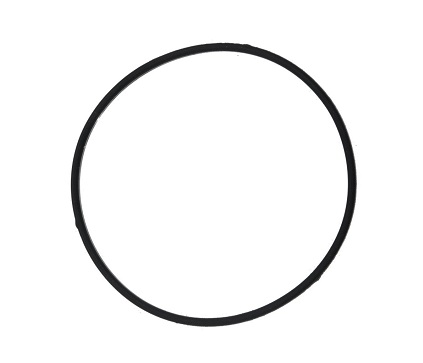

591467 Seal


Quantity:

591467 Seal


Price: 2.22 (Including VAT at 20%)

Approx shipping weight 5g

Carburettor bowl seal for 550 horizontal crankshaft engine
Approx 50mm diameter

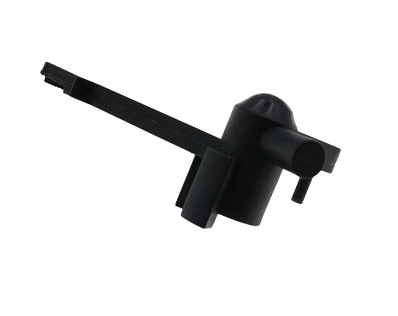

591016 Choke Lever


Quantity:

591016 Choke Lever


Price: 4.50 (Including VAT at 20%)

Approx shipping weight 10g

Choke Lever. 550 horizontal crankshaft engine


591770 Carburettor Overhaul Kit


Quantity:

591770 Carburettor Overhaul Kit


Price: 17.82 (Including VAT at 20%)

Approx shipping weight

Carburettor overhoaul kit for 550 and 750 series horizontal crankshaft engines


Briggs and Stratton Engine Speed Tachometer 19200E


Quantity:

Briggs and Stratton Engine Speed Tachometer 19200E


Price: 17.57 (Including VAT at 20%)

Approx shipping weight 40g

RPM tachometer to accurately set engine speed
Easy to use and compact. Complete with instructions and wallet
Suits any engine


798626 Governor Spring


Quantity:

798626 Governor Spring


Price: 5.76 (Including VAT at 20%)

Approx shipping weight 5g

Main Governor spring for 550 Horizontal crankshaft engine
Approx 10.5cm overall length


797337 Idle Spring


Quantity:

797337 Idle Spring


Price: 5.76 (Including VAT at 20%)

Approx shipping weight 5g

Idle governor spring for 550 Horizontal crankshaft engine
Approx 15mm long x 7mm diameter


797325 Oil Dipstick


Quantity:

797325 Oil Dipstick


Price: 5.52 (Including VAT at 20%)

Approx shipping weight 15g

Dipstick and seal for 550 horizontal crankshaft engine
Approx 65mm overall length including cap 18mm thread outside diameter.
Includes seal

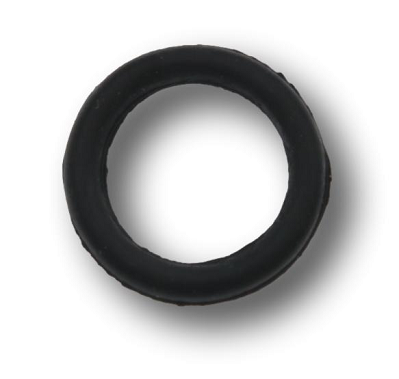

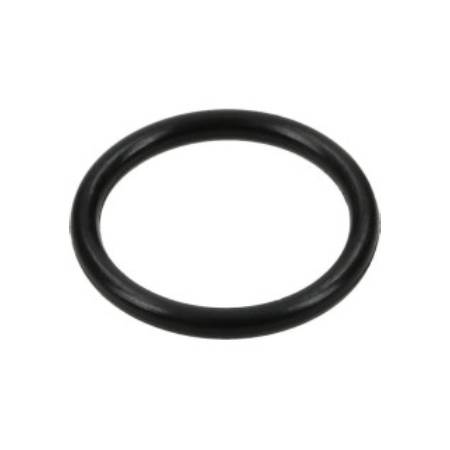

797327 Seal


Quantity:

797327 Seal


Price: 4.80 (Including VAT at 20%)

Approx shipping weight 5g

Oil dipstick seal for dipstick with 18mm thread


797276 Starter Rewind


Quantity:

797276 Starter Rewind


Price: 27.42 (Including VAT at 20%)

Approx shipping weight 620g

Starter rewind complete for 550 OHV Horizontal crankshaft engine
6 Screw holes on a pitch circle diameter of 16cm


691915 Briggs and Stratton Engine Starter Grip


Quantity:

691915 Briggs and Stratton Engine Starter Grip


Price: 4.20 (Including VAT at 20%)

Approx shipping weight 20g

Recoil grip for Briggs and Stratton Sprint, Classic & Quatro engines


799716 (was 795426) Starter Grip


Quantity:

799716 (was 795426) Starter Grip


Price: 4.38 (Including VAT at 20%)

Approx shipping weight 40g

Easy grip starter handle
Allows full hand engagement for more solid handhold


693389 Rope


Quantity:

693389 Rope


Price: 4.86 (Including VAT at 20%)

Approx shipping weight 30g

Starter rope
Approx 4mm diameter x 1.7m long


797343 Armature


Quantity:

797343 Armature


Price: 19.68 (Including VAT at 20%)

Approx shipping weight 260g

Ignition armature for 550 Horizontal crankshaft engine
Bolt hole centres approx 58mm apart
Includes spark plug boot/terminal


590603 Armature


Quantity:

590603 Armature


Price: 41.40 (Including VAT at 20%)

Approx shipping weight 250g

Ignition armature for 750 and 950 Series engines
Bolt hole centres approx 58mm apart
Includes plug terminal and boot


797658 Spark Plug Boot


Quantity:

797658 Spark Plug Boot


Price: 5.04 (Including VAT at 20%)

Approx shipping weight 30g

OHV Spark plug boot for 550 and 750 Horizontal engines


692390 Stop Wire


Quantity:

692390 Stop Wire


Price: 3.42 (Including VAT at 20%)

Approx shipping weight 20g

Stop wire. Approx 42cm long


797194 Rocker Gasket


Quantity:

797194 Rocker Gasket


Price: 4.20 (Including VAT at 20%)

Approx shipping weight 10g

Rocker gasket for 550 and 750 Horizontal crankshaft engine


797212 Head Gasket


Quantity:

797212 Head Gasket


Price: 8.16 (Including VAT at 20%)

Approx shipping weight 10g

Head gasket for 550 Horizontal crankshaft engine
Bore diameter approx 62mm


590606 Head Gasket


Quantity:

590606 Head Gasket


Price: 5.34 (Including VAT at 20%)

Approx shipping weight 20g

Cylinder Head Gasket for 750 Series horizontal crankshaft engine
Bore diameter approx 68mm


797267 Exhaust Gasket


Quantity:

797267 Exhaust Gasket


Price: 2.22 (Including VAT at 20%)

Approx shipping weight 5g

Exhaust gasket for 550 horizontal crankshaft engine
Bolt hole centres approx 44mm apart


591711 (was 797702) Exhaust Deflector


Quantity:

591711 (was 797702) Exhaust Deflector


Price: 3.84 (Including VAT at 20%)

Approx shipping weight 20g

90 degree muffler deflector. Includes clamp screw
Fits over 7/8" (22mm) diameter outlet pipe


19203 Puller - Large


Quantity:

19203 Puller - Large


Price: 10.97 (Including VAT at 20%)

Approx shipping weight 230g

Flywheel puller for 550 horizontal engines which have threaded puller holes in flywheel.
Distance between outer hole centres approx 72mm
Includes long and short bolt sets


797286 Flywheel Key


Quantity:

797286 Flywheel Key


Price: 3.36 (Including VAT at 20%)

Approx shipping weight 5g

Flywheel key for 550, 750 and 950 horizontal crankshaft engine
1/4 Moon approx 18mm long x 6mm deep x 4mm thick


798305 Key


Quantity:

798305 Key


Price: 2.58 (Including VAT at 20%)

Approx shipping weight 10g

Square section drive key
3/16" Square section x 30mm long with rounded ends


Unlisted parts page
