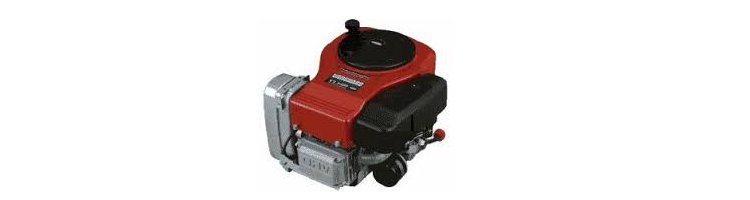

Briggs and Stratton 12HP and above Single Cylinder Vanguard Engine

Briggs&Stratton uk | Single Cyl. Vertical Crankshaft Over 7 HP Spare Parts  | Briggs and Stratton Vertical 7HP and above Overhead Valve OHV Engine Spare Parts |  Briggs and Stratton 12HP and above Single Cylinder Vanguard Engine

Briggs and Stratton Vanguard Single Cylinder over 12HP Click Engine Image for more Information about this Engine Group

These engines are usually to be found fitted onto ride on lawnmowers and garden tractors. They are overhead valve and will have a rocker cover with the letters OHV cast into the front. They will usually have the word Vanguard prominently displayed on the engine cowling. The Model, Type and Code numbers are either on a narrow plate rivited to the top cover or stamped into the cover just above the rocker cover. Their models begin with 260???, 261??? or 28Q???

992425 Ride on Mower Cover


Quantity:

992425 Ride on Mower Cover


Price: 27.48 (Including VAT at 20%)

Approx shipping weight 1.5kg

Ride on mower/garden tractor cover
Protects against most weather conditions.
Width 100cm
Length 264cm
Height 130cm


272147 Briggs and Stratton Single Cylinder Vanguard Repair Manual


Quantity:

272147 Briggs and Stratton Single Cylinder Vanguard Repair Manual


Price: 18.99

Approx shipping weight 680g

Repair manual for all single cylinder Vanguard engines

Covers all you need to know!


992304 Spark Plug


Quantity:

992304 Spark Plug


Price: 4.39 (Including VAT at 20%)

Approx shipping weight 50g

RC12YC Spark plug for all OHV engines
Re-Set Gap to .020" for Intek and DOV vertical crankshaft engines


992355 (was 6095E) Spark Plug Wrench


Quantity:

992355 (was 6095E) Spark Plug Wrench


Price: 6.00 (Including VAT at 20%)

Approx shipping weight 120g

16mm/19mm Spark plug box wrench for 992304 spark plug


992380 Fuel Fit Additive


Quantity:

992380 Fuel Fit Additive


Price: 4.19 (Including VAT at 20%)

Approx shipping weight 130g

Briggs and Stratton Petrol additive for all 4 stroke and 2 stroke petrol engines
Prevents fuel deterioration during periods of non-use and generally aids engine efficiency
Essential for correct winter storage of lawnmowers etc.

100 ml, treats 10 litres of fuel.


992239 Single Cylinder OHV Service Kit 12HP and Above


Quantity:

992239 Single Cylinder OHV Service Kit 12HP and Above


Price: 28.56 (Including VAT at 20%)

Approx shipping weight 1.9kg

Tune up service kit for Vanguard 28Q777 single cylinder engines (air filter retainer has a single stud)
Includes 496894S Air Filter, 270403S Pre-filter, 1.4l Oil, 992304 Spark plug



496894S Air Filter Cartridge


Quantity:

496894S Air Filter Cartridge


Price: 16.50 (Including VAT at 20%)

Approx shipping weight 300g

Paper air filter cartridge for many larger vertical engines using single stud fitting
Approx 18cm long x 7.5cm high


272403S Pre-Filter


Quantity:

272403S Pre-Filter


Price: 3.90 (Including VAT at 20%)

Approx shipping weight 10g

Foam pre-filter for 496894 cartridge
Can be retro fitted to prolong cartridge life


491021 Filter Cartridge


Quantity:

491021 Filter Cartridge


Price: 23.58 (Including VAT at 20%)

Approx shipping weight 590g

Air filter cartridge. Vanguard single cylinder engine whos model number begin 26


492947 Pre-Filter


Quantity:

492947 Pre-Filter


Price: 4.32 (Including VAT at 20%)

Approx shipping weight 120g

Filter pre-cleaner for 491021 Filter cartridge


272029 Gasket


Quantity:

272029 Gasket


Price: 4.80 (Including VAT at 20%)

Approx shipping weight 10g

Intake gasket Vanguard single cylinder engine whos model number begin 26


492932S Oil Filter


Quantity:

492932S Oil Filter


Price: 11.52 (Including VAT at 20%)

Approx shipping weight 300g

Briggs and Stratton spares Oil filter for many pressure lubricated engines
Approx 6cm tall x 7.5cm diameter(at base)


696854 Extended Life Oil Filter


Quantity:

696854 Extended Life Oil Filter


Price: 19.08 (Including VAT at 20%)

Approx shipping weight 300g

Briggs and Stratton spares Oil filter for many pressure lubricated engines
Approx 6cm tall x 7.5cm diameter(at base)
Higher spec. Extended Life Series version of 492932S
Recommended as a replacement for engines subject to higher than normal use or demanding conditions


491056 Oil Filter


Quantity:

491056 Oil Filter


Price: 12.42 (Including VAT at 20%)

Approx shipping weight 310g

Oil filter for pressure lubricated engines
Approx 8.5cm tall


594200 (was 796530)/796532 Oil Drain Extension


Quantity:

594200 (was 796530)/796532 Oil Drain Extension


Price: 20.16 (Including VAT at 20%)

Approx shipping weight 140g

Extended oil drain pipe kit
Allows easier oil draining away from bodywork etc.
Includes 796530 drain pipe and 796532 Connector
Pipe can be clipped up out of the way when not in use
Can be retro fitted to any engine with 3/8" Pipe thread (approx 17mm drain plug thread outside diameter)


5401K Oil Drain Adaptor Kit


Quantity:

5401K Oil Drain Adaptor Kit


Price: 12.60 (Including VAT at 20%)

Approx shipping weight 70g

Oil drain adaptor and extension tube.
Quick drain sump plug valve and 20cm extension tube.
Fits most larger engines. (Sump plug thread approx 17mm outside diameter)


281370S Dipstick Tube Seal


Quantity:

281370S Dipstick Tube Seal


Price: 3.72 (Including VAT at 20%)

Approx shipping weight 10g

Oil filler/dipstick threaded rubber seal


795027 Fuel Cap (was 493988S)


Quantity:

795027 Fuel Cap (was 493988S)


Price: 5.52 (Including VAT at 20%)

Approx shipping weight 30g

Large plastic fuel cap. Fits plastic tank with large opening.
Fuel tank thread approx 56mm outside diameter.


395051R Briggs and Stratton Fuel Tube


Quantity:

395051R Briggs and Stratton Fuel Tube


Price: 3.66 (Including VAT at 20%)

Approx shipping weight 20g per 20cm

Fuel tube for most applications

Sold in units of 20cm. Multiple purchases will be supplied in one total length
Use with 710075 clamps.(sold seperately)


710075 Fuel Tube clamp


Quantity:

710075 Fuel Tube clamp


Price: 2.88 (Including VAT at 20%)

Approx shipping weight 10g

Plated fuel tube hose clamp
Fits 11mm O/D fuel tube 395051


691038 Fuel Tube Clamp - Black


Quantity:

691038 Fuel Tube Clamp - Black


Price: 2.82 (Including VAT at 20%)

Approx shipping weight 10g

Black fuel tube clamp. Fits 12mm O/D fuel hose
(Slightly smaller than 95162)


791850 Fuel Tube Clamp - Green


Quantity:

791850 Fuel Tube Clamp - Green


Price: 2.82 (Including VAT at 20%)

Approx shipping weight 10g

Green fuel tube clamp. Fits fuel tube over 12mm O/D
(Slightly larger than 691038)


698183 Fuel Tap


Quantity:

698183 Fuel Tap


Price: 6.12 (Including VAT at 20%)

Approx shipping weight 15g

In line fuel shut off valve supplied with 2 x 95162 tube clamp


592840 Fuel Shut Off Valve


Quantity:

592840 Fuel Shut Off Valve


Price: 25.74 (Including VAT at 20%)

Approx shipping weight 30g

Old style tank mounted fuel shut off valve (replaces 691940, 293934, 394387, 692302)
Note - the male thread tank outlet which this tap screws onto is no longer available



808116S Fuel Filter


Quantity:

808116S Fuel Filter


Price: 14.22 (Including VAT at 20%)

Approx shipping weight 30g

90 degree fuel filter


298090S Fuel Filter


Quantity:

298090S Fuel Filter


Price: 4.20 (Including VAT at 20%)

Approx shipping weight 10g

Red in line fuel filter for gravity fed fuel systems


394358S Fuel Filter


Quantity:

394358S Fuel Filter


Price: 4.20 (Including VAT at 20%)

Approx shipping weight 10g

White 75 micron in line fuel filter for pumped or higher pressure gravity fuel systems


691035 Fuel Filter


Quantity:

691035 Fuel Filter


Price: 7.50 (Including VAT at 20%)

Approx shipping weight 15g

Paper type in line fuel filter fitted in many pumped fuel systems
40 microns


808656 Fuel Pump


Quantity:

808656 Fuel Pump


Price: 35.52 (Including VAT at 20%)

Approx shipping weight 100g

808656 Plastic fuel pump. Approx 50mm diameter x 25mm. 3 connectors
Replaces earlier aluminium pump.


19200E Briggs and Stratton Engine Speed Tachometer


Quantity:

19200E Briggs and Stratton Engine Speed Tachometer


Price: 17.57 (Including VAT at 20%)

Approx shipping weight 40g

RPM tachometer to accurately set engine speed
Easy to use and compact. Complete with instructions and wallet
Suits any engine


796260 (was 692208) Governor Spring


Quantity:

796260 (was 692208) Governor Spring


Price: 4.98 (Including VAT at 20%)

Approx shipping weight 10g

Governor spring. For Vangaurd 28Q777 engine.


497535 Carburettor Overhaul Kit


Quantity:

497535 Carburettor Overhaul Kit


Price: 47.34 (Including VAT at 20%)

Approx shipping weight 80g

Carburettor overhaul kit
Walbro LMT carburettor. Fitted to some Vanguard model 28Q777 engines.
This kit no longer includes the long central brass nozzle.


231855S Needle


Quantity:

231855S Needle


Price: 3.84 (Including VAT at 20%)

Approx shipping weight 5g

Float needle, Walbro LMT carburettor. Fitted to some Vanguard model 28Q777 engines.
This needle has a rubberised "vitron" point.


690577 Needle Seat


Quantity:

690577 Needle Seat


Price: 7.74 (Including VAT at 20%)

Approx shipping weight 10g

Inlet needle seat for gravity fed LMT Walbro carburettor


494381 Float


Quantity:

494381 Float


Price: 15.36 (Including VAT at 20%)

Approx shipping weight 10g

Carburettor float


281165S Carburetor Bowl Seal


Quantity:

281165S Carburetor Bowl Seal


Price: 6.18 (Including VAT at 20%)

Approx shipping weight 5g

Carburetor rubber bowl seal , Walbro LMT carburettor. Fitted to some Vanguard model 28Q777 engines.
Approx 5cm outside diameter


692255 Washer


Quantity:

692255 Washer


Price: 3.60 (Including VAT at 20%)

Approx shipping weight 5g

Fibre carburetor bowl washer, Walbro LMT carburettor. Fitted to some Vanguard model 28Q777 engines.
Approx 8mm inside diameter


695426 Gasket


Quantity:

695426 Gasket


Price: 12.30 (Including VAT at 20%)

Approx shipping weight 5g

Float bowl gasket, Nikki carburettor. Fitted to some Vanguard model 28Q777 engines.


695410 Washer


Quantity:

695410 Washer


Price: 4.74 (Including VAT at 20%)

Approx shipping weight 5g

Sealing washer, Nikki carburettor. Seals bolt or solenoid fitted to bottom of bowl on Vanguard model 28Q777 engines. Approx 8mm I/D x 12mm O/D


696136 Needle Valve


Quantity:

696136 Needle Valve


Price: 18.00 (Including VAT at 20%)

Approx shipping weight 5g

Plastic needle valve for Nikki carb fitted to some Vanguard 28Q777 models.
Has small spring loaded pin at one end.


492281 Gasket Set


Quantity:

492281 Gasket Set


Price: 28.44 (Including VAT at 20%)

Approx shipping weight 10g

Carburettor gasket set. For Vangaurd model 260777 and 261777


492188 Float Valve


Quantity:

492188 Float Valve


Price: 23.04 (Including VAT at 20%)

Approx shipping weight 5g

Float needle valve for Vangaurd model 260777 and 261777


692137 Intake gasket


Quantity:

692137 Intake gasket


Price: 3.18 (Including VAT at 20%)

Approx shipping weight 10g

Intake gasket for 21, 28, 31 & 33 series overhead valve engines


692284 Gasket


Quantity:

692284 Gasket


Price: 8.70 (Including VAT at 20%)

Approx shipping weight 10g

Carb to manifold gasket
Hole centres approx 54mm apart

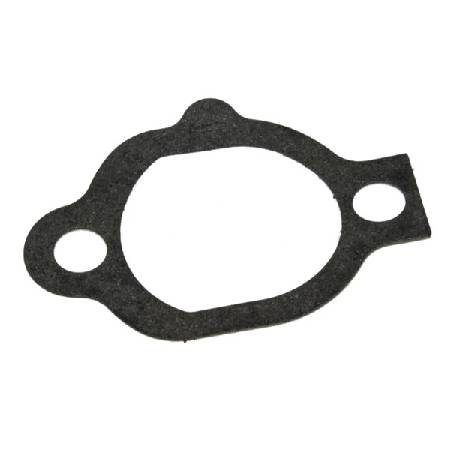

272121 Gasket


Quantity:

272121 Gasket


Price: 5.22 (Including VAT at 20%)

Approx shipping weight 5g

Intake gasket. Vanguard model 260777 and 261777

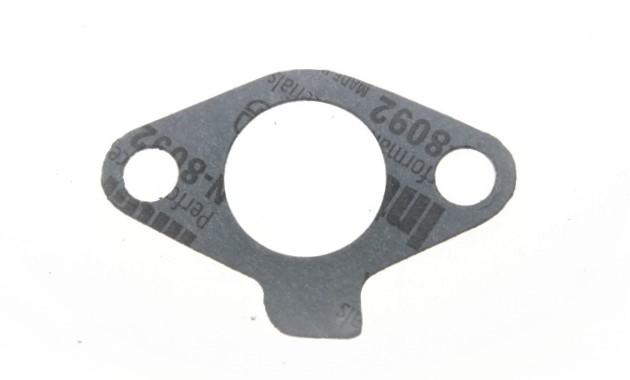

272028  Gasket


Quantity:

272028 Gasket


Price: 4.80 (Including VAT at 20%)

Approx shipping weight 5g

Intake gasket. Vanguard model 260777 and 261777


695002 Rope


Quantity:

695002 Rope


Price: 8.10 (Including VAT at 20%)

Approx shipping weight 40g

Starter rope 5mm x 2.4m long white


490652 Starter Grip


Quantity:

490652 Starter Grip


Price: 5.22 (Including VAT at 20%)

Approx shipping weight 55g

Recoil starter large rubber grip with plastic insert
Fits 5mm diameter rope 692188 and pulley 295871


591606 (was 695058) Rewind Assembly


Quantity:

591606 (was 695058) Rewind Assembly


Price: 40.32 (Including VAT at 20%)

Approx shipping weight 870g

Retro fit rewind starter assembly for 10HP - 13HP engines
Includes fixing screws and cup.
Can be used to add rewind to engines with electric start only.


497595 Starter Motor


Quantity:

497595 Starter Motor


Price: 108.84 (Including VAT at 20%)

Approx shipping weight 2.5kg

497595 Starter motor. For 28Q777 Vanguard engine fitted with 16 tooth plastic gear starter.
With 16 tooth plastic pinion gear. 3 5/8" Housing
NOTE - Models 260777 and 261777 Vanguard starter motor is no longer available.


795121 (was 499521) Starter motor


Quantity:

795121 (was 499521) Starter motor


Price: 138.12 (Including VAT at 20%)

Approx shipping weight 2.75kg

Starter motor
Has 16 tooth plastic drive gear and 4 9/16" housing length


696541 Starter Drive


Quantity:

696541 Starter Drive


Price: 25.80 (Including VAT at 20%)

Approx shipping weight 180g

Electric starter motor drive kit for 28Q777 Vanguard engines fitted with 16 tooth plastic starter gear.
Plastic drive gear and "c" clip type retainer


691265 Starter 'C' Clip


Quantity:

691265 Starter 'C' Clip


Price: 3.48 (Including VAT at 20%)

Approx shipping weight 5g

'C' clip retainer for 28Q777 starter motors


696537 Ring Gear Kit


Quantity:

696537 Ring Gear Kit


Price: 47.52 (Including VAT at 20%)

Approx shipping weight 520g

696537 Flywheel ring gear. For 28Q777 Vanguard engine fitted with replaceable ring gear.
Updates older plastic ring gear to aluminium
Approx. 21cm diameter
Includes mounting parts, small motor gear, retaining pin and 'C' clip
NOTE - Models 260777 and 261777 Vanguard ring gear is no longer available.


593934 (was 693551) Starter Motor


Quantity:

593934 (was 693551) Starter Motor


Price: 128.10 (Including VAT at 20%)

Approx shipping weight 2.5kg

693551 Starter motor assy. With 14 tooth metal pinion gear with plastic centre.
3 5/8" Body Housing length. Please count the teeth on your original prior to ordering.
This motor is NOT interchangeable with the 16 tooth plastic gear motor.
NOTE - Models 260777 and 261777 Vanguard starter motor is no longer available.


693699 Starter Drive


Quantity:

693699 Starter Drive


Price: 43.62 (Including VAT at 20%)

Approx shipping weight 200g

Sarter motor clutch and gear assembly
(14 tooth 693713 metal gear, 'c' clip retainer)
Please ensure that your current gear has 14 teeth.
This gear is NOT interchangeable with the 16 tooth plastic gear.


593935 (was 693713) Metal Starter Gear


Quantity:

593935 (was 693713) Metal Starter Gear


Price: 21.66 (Including VAT at 20%)

Approx shipping weight 45g

Metal 14 tooth starter gear with plastic inner for some starter motors
This gear is NOT interchangeable with the 16 tooth plastic starter gear. The tooth pitch is different


691293 Brush Holder


Quantity:

691293 Brush Holder


Price: 23.70 (Including VAT at 20%)

Approx shipping weight 200g

Starter motor brush holder. Includes brushes.
For motor with metal baseplate bolted onto the retainer.


691286 Metal Plate


Quantity:

691286 Metal Plate


Price: 15.90 (Including VAT at 20%)

Approx shipping weight 60g

Starter motor base plate
Includes bearing


691656 Starter Solenoid


Quantity:

691656 Starter Solenoid


Price: 18.18 (Including VAT at 20%)

Approx shipping weight 200g

691656 Starter Solinoid, single poll
Please note - starter solenoids are generally originally provided by the equipment manufacturer not Briggs and Stratton
This is a fairly universal soleniod that fits most applications however, if you wish to replace the original exactly, a replacement would need to be obtained through the equipment (mower etc.) manufacturer


692318 Ignition Switch


Quantity:

692318 Ignition Switch


Price: 21.66 (Including VAT at 20%)

Approx shipping weight 120g

Indak ignition key switch
Please check wiring details pop-up below as some equipment manufacturers use similar looking switches with differing pin positions


691959 Ignition Key Set


Quantity:

691959 Ignition Key Set


Price: 8.10 (Including VAT at 20%)

Approx shipping weight 10g

Indak Ignition key set. Contains two keys
Flat profile. (see pop up link below for shape) Fits most electric start machines


1714054SM Delta Ignition Key


Quantity:

1714054SM Delta Ignition Key


Price: 3.66 (Including VAT at 20%)

Approx shipping weight 10g

Ignition Key. Delta
Used by a number of ride on mower manufacturers. Including some models from, John Deere, Rally, Champion, Craftsman, AYP and others


591459 (was 492341) Ignition Armature


Quantity:

591459 (was 492341) Ignition Armature


Price: 34.32 (Including VAT at 20%)

Approx shipping weight 380g

Electronic ignition armature magneto coil for 26 and 28 series Vangaurd engines
Mounting hole centres approx 6.4cm apart


692390 Stop Wire


Quantity:

692390 Stop Wire


Price: 3.42 (Including VAT at 20%)

Approx shipping weight 20g

Stop wire. Approx 42cm long


794360 Voltage Regulator (was 691188)


Quantity:

794360 Voltage Regulator (was 691188)


Price: 42.42 (Including VAT at 20%)

Approx shipping weight 80g

12 Volt regulator and rectifier for many larger electric start engines
Approx 4cm square. Yellow lead with round connector, Red lead with round connector


845907 (797375) Voltage Regulator


Quantity:

845907 (797375) Voltage Regulator


Price: 43.44 (Including VAT at 20%)

Approx shipping weight 170g

12 Volt regulator and rectifier for many larger electric start engines
Approx 5.5cm x 8cm. 2 Yellow leads with rectangular connector, Red lead with round connector


Ignition Spark Tester 19368


Quantity:

Ignition Spark Tester 19368


Price: 16.37 (Including VAT at 20%)

Approx shipping weight 90g

Ignition spark tester. Tests the ignition system for efficiency
For all engines


691909/692424 Terminal & Boot


Quantity:

691909/692424 Terminal & Boot


Price: 8.52 (Including VAT at 20%)

Approx shipping weight 10g

Spark plug terminal & boot
Straight-for OHV Engines


272475S Rocker Cover Gasket


Quantity:

272475S Rocker Cover Gasket


Price: 6.30 (Including VAT at 20%)

Approx shipping weight 40g

Rocker cover gasket for single cylinder model 28Q777 vertical crankshaft OHV engines


273280S Head Gasket


Quantity:

273280S Head Gasket


Price: 10.98 (Including VAT at 20%)

Approx shipping weight 15g

Head gasket. Model 28Q777 Vanguard engine.


690968 Seal


Quantity:

690968 Seal


Price: 6.96 (Including VAT at 20%)

Approx shipping weight 10g

Intake valve seal for 28Q777 series overhead valve engines.
(only the intake valve has a seal)


692011 Push Rod


Quantity:

692011 Push Rod


Price: 8.64 (Including VAT at 20%)

Approx shipping weight 30g

Push rod, exhaust (steel)
Overall length approx 24cm
For 280000 series OHV engines


692003 Push Rod


Quantity:

692003 Push Rod


Price: 13.56 (Including VAT at 20%)

Approx shipping weight 30g

Push rod, intake (aluminium)
Overall length approx 24cm
For 280000 series OHV engines


692226 Gasket,  Crankcase


Quantity:

692226 Gasket, Crankcase


Price: 4.20 (Including VAT at 20%)

Approx shipping weight 30g

Crankcase gasket for Model 28 engines
(model numbers starting with 28)


291675S Oil Seal


Quantity:

291675S Oil Seal


Price: 4.26 (Including VAT at 20%)

Approx shipping weight 15g

Lower oil seal. For model 28 engine.
O/D approx 48mm I/D approx 34mm


795036 (was 393761) Deflector Muffler


Quantity:

795036 (was 393761) Deflector Muffler


Price: 8.10 (Including VAT at 20%)

Approx shipping weight 75g

Exhaust deflector. Includes screws
Fits many larger engine mufflers including 691874


692236 Exhaust Gasket


Quantity:

692236 Exhaust Gasket


Price: 3.66 (Including VAT at 20%)

Approx shipping weight 30g

692236 Exhaust gasket. for 28Q777 Vanguard engine.
Bolt hole centres approx 48mm apart


272126 Head Gasket


Quantity:

272126 Head Gasket


Price: 16.50 (Including VAT at 20%)

Approx shipping weight 30g

Cylinder head gasket for 260777 and 261777 Vanguard engines


272010 Rocker Gasket


Quantity:

272010 Rocker Gasket


Price: 5.22 (Including VAT at 20%)

Approx shipping weight 10g

Rocker cover gasket. Models 260777 and 261777 Vanguard


272123 Gasket


Quantity:

272123 Gasket


Price: 5.76 (Including VAT at 20%)

Approx shipping weight 10g

Exhaust gasket. Vanguard model 260777 and 261777


272124 Crankcase Gasket


Quantity:

272124 Crankcase Gasket


Price: 12.42 (Including VAT at 20%)

Approx shipping weight 25g

Crankcase gasket for model 26 Vanguard engine


19203 Puller - Large


Quantity:

19203 Puller - Large


Price: 10.97 (Including VAT at 20%)

Approx shipping weight 230g

Flywheel puller for larger engines
Distance between outer hole centres approx 72mm
Includes long and short bolt sets
If your engine has a square drive starter clutch holding down the flywheel, you will also require 690662 nut (see below)


222698S Briggs & Stratton Spare Parts Flywheel key


Quantity:

222698S Briggs & Stratton Spare Parts Flywheel key


Price: 2.52 (Including VAT at 20%)

Approx shipping weight 5g

Flywheel key to fit most engines
Approx. 14mm long x 3mm x 4mm


691483 1/4


Quantity:

691483 1/4" Key


Price: 4.32 (Including VAT at 20%)

Approx shipping weight 20g

1/4" Square Pulley key. Approx 39mm long


Unlisted parts page

Briggs&Stratton uk | Single Cyl. Vertical Crankshaft Over 7 HP Spare Parts  | Briggs and Stratton Vertical 7HP and above Overhead Valve OHV Engine Spare Parts |  Briggs and Stratton 12HP and above Single Cylinder Vanguard Engine

©copyright 2005 G.Campbell. All rights reserved
(see terms and conditions)

spacer image
