Briggs and Stratton Small Intek 800 and 950 Series Horizontal Crankshaft Engine Spare Parts

Briggs&Stratton uk | Horizontal Crankshaft 2-6.5 HP Engine Spares | Horizontal Crankshaft 2-6.5 HP OHV |  Briggs and Stratton Small Intek 800 and 950 Series Horizontal Crankshaft Engine Spare Parts

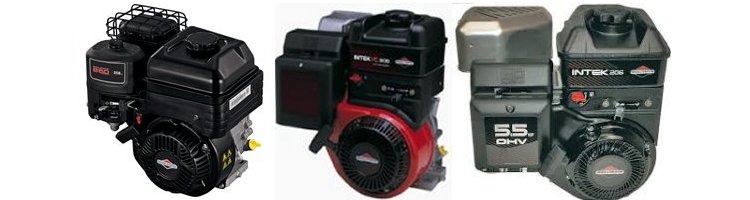

Small Intek Horizontal Crankshaft Engine Click Engine Image for more Information about this Engine Group

These engines are usually to be found on a variety of utility applications such as Tillers, Rotovators,
Cylinder Mowers, Cement Mixers, Scarifiers, Generators, Pumps, Bale Lifters, Go Carts etc.

They are overhead valve with the spark plug set deep to one side or the top of a rocker cover.

The fuel tank will be mounted directly on top.

They fall under a number of different sticker names including Intek 190, Intek 206, Intek Pro 206,
800 Series (800, 825, 850, 875) 900 and 950 Series are the most commonly encountered.
The cylinder and piston are at 45 degrees to the vertical giving the engine a compact look

The pull start will be on the side with the crankshaft emerging horizontally on the opposite side.

Some Models may have an integral reduction gearbox or second shaft on the output side

The Model, Type and Code numbers are stamped into the side or top edge of the rocker cover or the pressed
steel cover beside it. Some may also have the numbers on a sticker on the fuel tank
The Model number will begin with 11,12 or 13
Technical Specifications

Briggs and Stratton Single Cylinder OHV Repair Manual 276781


Quantity:

Briggs and Stratton Single Cylinder OHV Repair Manual 276781


Price: 18.99

Approx shipping weight 510g

Repair manual for all single cylinder OHV engines other than Vanguard
(Intek, Diamond, Europa etc.)
For Vanguard engines order 272147

Covers all you need to know!


Fuel Fit Additive 992380


Quantity:

Fuel Fit Additive 992380


Price: 4.19 (Including VAT at 20%)

Approx shipping weight 130g

Briggs and Stratton Petrol additive for all 4 stroke and 2 stroke petrol engines
Prevents fuel deterioration during periods of non-use and generally aids engine efficiency
Essential for correct winter storage of lawnmowers etc.

100 ml, treats 10 litres of fuel


Spark Plug 992304


Quantity:

Spark Plug 992304


Price: 4.39 (Including VAT at 20%)

Approx shipping weight 50g

RC12YC Spark plug for all OHV engines


992355 (was 6095E) Spark Plug Wrench


Quantity:

992355 (was 6095E) Spark Plug Wrench


Price: 6.00 (Including VAT at 20%)

Approx shipping weight 120g

16mm/19mm Spark plug box wrench for 992304 spark plug


992015 Throttle control


Quantity:

992015 Throttle control


Price: 8.22 (Including VAT at 20%)

Approx shipping weight 105g

Throttle control and cable to fit many applications
1.35m long. End can be bent to suit
Negative action(Control pushed to fast, shortens inner wire)


992016 Throttle control


Quantity:

992016 Throttle control


Price: 8.22 (Including VAT at 20%)

Approx shipping weight 105g

Throttle control and cable to fit many applications
1.35m long. End can be bent to suit
Positive action(Control pushed to fast, lengthens inner wire)


690798/691044 Cable Clamp & Screw


Quantity:

690798/691044 Cable Clamp & Screw


Price: 7.14 (Including VAT at 20%)

Approx shipping weight 10g

Clamp and screw, throttle cable


Genuine Briggs Spares Air Filter 491588S


Quantity:

Genuine Briggs Spares Air Filter 491588S


Price: 6.12 (Including VAT at 20%)

Approx shipping weight 40g

Flat paper air filter for some intek engines
Approx 13cm x 11.5cm


Pre filter 491435S


Quantity:

Pre filter 491435S


Price: 4.32 (Including VAT at 20%)

Approx shipping weight 10g

Flat foam pre filter for 491588 paper filter fitted to some horizontal crankshaft engines


493537S Pre-Filter


Quantity:

493537S Pre-Filter


Price: 4.26 (Including VAT at 20%)

Approx shipping weight 10g

Pre-filter with 2 folded edges for 491588S air filter
(Can be retro fitted to prelong filter life)


Air Filter 697029


Quantity:

Air Filter 697029


Price: 12.84 (Including VAT at 20%)

Approx shipping weight 90g

Paper air filter element for Intek engines
Approx 8cm high x 9.5cm long


Pre-Filter 273356S


Quantity:

Pre-Filter 273356S


Price: 5.22 (Including VAT at 20%)

Approx shipping weight 10g

Pre-filter for 697029 Intek air filter


590601 Air Filter


Quantity:

590601 Air Filter


Price: 11.82 (Including VAT at 20%)

Approx shipping weight 150g

Top mount oval air filter element for 950 Horizontal crankshaft engine.
Approx 10cm long x 7cm wide x 7cm high
Includes pre filter.


795027 Fuel Cap (was 493988S)


Quantity:

795027 Fuel Cap (was 493988S)


Price: 5.52 (Including VAT at 20%)

Approx shipping weight 30g

Large plastic fuel cap. Fits plastic tank with large opening.
Fuel tank thread approx 56mm outside diameter.


794641 Fuel Cap


Quantity:

794641 Fuel Cap


Price: 6.12 (Including VAT at 20%)

Approx shipping weight 50g

Fuel cap. Bayonet fitting approx 7cm outside diameter
For later 950 series engines


792917 Fuel Strainer


Quantity:

792917 Fuel Strainer


Price: 5.04 (Including VAT at 20%)

Approx shipping weight 10g

Fuel strainer. Fits into tank opening


797346 Outlet


Quantity:

797346 Outlet


Price: 5.40 (Including VAT at 20%)

Approx shipping weight 20g

Fuel tank outlet with filter for many horizontal engine fuel tanks
Approx 70mm overall length (brass fitting 35mm) with 10mm outside diameter thread
Includes O Ring seal


298090S Fuel Filter


Quantity:

298090S Fuel Filter


Price: 4.20 (Including VAT at 20%)

Approx shipping weight 10g

Red in line fuel filter for gravity fed fuel systems


595824 (was 694485) Fuel Filter


Quantity:

595824 (was 694485) Fuel Filter


Price: 6.00 (Including VAT at 20%)

Approx shipping weight 40g

Fuel filter
Approx 54mm overall length x 22m diameter at widest point


698180 Fuel Tap


Quantity:

698180 Fuel Tap


Price: 11.76 (Including VAT at 20%)

Approx shipping weight 40g

Fuel shut off valve. 90 degree. For Intek horizontal engine


395051R Briggs and Stratton Fuel Tube


Quantity:

395051R Briggs and Stratton Fuel Tube


Price: 3.66 (Including VAT at 20%)

Approx shipping weight 20g per 20cm

Fuel tube for most applications

Sold in units of 20cm. Multiple purchases will be supplied in one total length
Use with 710075 clamps.(sold seperately)


710075 Fuel Tube clamp


Quantity:

710075 Fuel Tube clamp


Price: 2.88 (Including VAT at 20%)

Approx shipping weight 10g

Plated fuel tube hose clamp
Fits 11mm O/D fuel tube 395051


691038 Fuel Tube Clamp - Black


Quantity:

691038 Fuel Tube Clamp - Black


Price: 2.82 (Including VAT at 20%)

Approx shipping weight 10g

Black fuel tube clamp. Fits 12mm O/D fuel hose
(Slightly smaller than 95162)

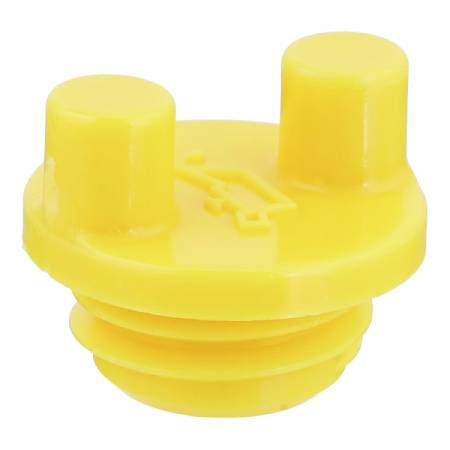

281658S Oil Filler Cap


Quantity:

281658S Oil Filler Cap


Price: 2.58 (Including VAT at 20%)

Approx shipping weight 10g

Screw in oil filler cap


696024 Gasket


Quantity:

696024 Gasket


Price: 4.80 (Including VAT at 20%)

Approx shipping weight 5g

Air cleaner gasket. For 12 Series Intek horizontal engines with flat side mount air filter
Bolt hole centres approx 35mm apart


792870 Gasket


Quantity:

792870 Gasket


Price: 5.40 (Including VAT at 20%)

Approx shipping weight 5g

Cork air filter gasket
For Intek 12 Series engines with high mount oval filter


692555 Intake Gasket


Quantity:

692555 Intake Gasket


Price: 4.26 (Including VAT at 20%)

Approx shipping weight 5g

Intake gasket for Intek engine


398188 Needle


Quantity:

398188 Needle


Price: 4.26 (Including VAT at 20%)

Approx shipping weight 5g

Inlet valve needle & seat for Intek and 800 series engines whose carburettor has a square nylon inlet (692317 below)


693981 Carb Bowl Gasket


Quantity:

693981 Carb Bowl Gasket


Price: 4.56 (Including VAT at 20%)

Approx shipping weight 5g

Carburetor bowl seal for Intek and 800 series engines whose carburettor has a square nylon inlet (692317 below)
Approx 48mm outside diameter


271716 Washer


Quantity:

271716 Washer


Price: 3.06 (Including VAT at 20%)

Approx shipping weight 5g

Fibre carburetor bowl lower seal washer for Intek and 800 series engines whose carburettor has a square nylon inlet (692317 below)
Approx 9mm inside diameter


692317 Carburettor Hose Connector


Quantity:

692317 Carburettor Hose Connector


Price: 7.08 (Including VAT at 20%)

Approx shipping weight 15g

Hose connector for Walbro LMT carburettor
Nylon - push fit into carb.


797139 Needle Valve


Quantity:

797139 Needle Valve


Price: 5.40 (Including VAT at 20%)

Approx shipping weight 5g

Carburettorinlet needle valve for Intek and 800 series engines whose carburettor has a 90 degree metal tube inlet


797625 Carburettor Bowl Seal


Quantity:

797625 Carburettor Bowl Seal


Price: 4.38 (Including VAT at 20%)

Approx shipping weight 5g

Carburettor bowl seal for Intek and 800 series engines whose carburettor has a 90 degree metal tube inlet
Approx 50mm diameter


797632 Carburettor Bowl Washer


Quantity:

797632 Carburettor Bowl Washer


Price: 2.82 (Including VAT at 20%)

Approx shipping weight 5g

Carburettor bowl washer for Intek and 800 series engines whose carburettor has a 90 degree metal tube inlet
I/D approx 10mm O/D approx 15mm


591770 Carburettor Overhaul Kit


Quantity:

591770 Carburettor Overhaul Kit


Price: 17.82 (Including VAT at 20%)

Approx shipping weight

Carburettor overhoaul kit for 750 and 950 series horizontal crankshaft engines


698537 Needle


Quantity:

698537 Needle


Price: 18.00 (Including VAT at 20%)

Approx shipping weight 5g

Plastic needle valve for Intek horizontal engines fitted with Nikki Carburettor


698538 Gasket


Quantity:

698538 Gasket


Price: 5.40 (Including VAT at 20%)

Approx shipping weight 5g

Float bowl rubber gasket for Intek horizontal engines fitted with Nikki Carburettor
Approx 49mm outside diameter


498144 Recoil Pulley & Spring


Quantity:

498144 Recoil Pulley & Spring


Price: 16.08 (Including VAT at 20%)

Approx shipping weight 190g

Recoil pulley & spring for Intek engines before code 08030300
Approx 13.5cm diameter


791849 Recoil Pulley & Spring


Quantity:

791849 Recoil Pulley & Spring


Price: 21.60 (Including VAT at 20%)

Approx shipping weight 190g

Recoil pulley & spring for Intek engines that have a screw retainer and plastic pawls & plate
After date code 08030200
Approx 13.5cm diameter


ST1 Starter Pawls & Plate


Quantity:

ST1 Starter Pawls & Plate


Price: 13.26 (Including VAT at 20%)

Approx shipping weight 20g

Starter pawls & retaining plate
Parts Included - 2 x 281505S pawl, 692299 plate & 691855 friction spring


691696 Screw


Quantity:

691696 Screw


Price: 3.60 (Including VAT at 20%)

Approx shipping weight 10g

Screw for retaining plastic pawl plate


693389 Rope


Quantity:

693389 Rope


Price: 4.86 (Including VAT at 20%)

Approx shipping weight 30g

Starter rope
Approx 4mm diameter x 1.7m long


490652 Starter Grip


Quantity:

490652 Starter Grip


Price: 5.22 (Including VAT at 20%)

Approx shipping weight 55g

Recoil starter large rubber grip with plastic insert
Fits 5mm diameter rope 692188 and pulley 295871


19368 Ignition Spark Tester


Quantity:

19368 Ignition Spark Tester


Price: 16.37 (Including VAT at 20%)

Approx shipping weight 90g

Ignition spark tester
Tests the ignition system for efficiency
For all engines


796964 Ignition Armature (was 695711)


Quantity:

796964 Ignition Armature (was 695711)


Price: 46.08 (Including VAT at 20%)

Approx shipping weight 350g

Electronic ignition armature magneto coil for Intek and 800 series engines horizontal engines
Please note that there has been a design change to this unit. The new one may not resemble your original exactly but is correct and will fit the engine


590603 Armature


Quantity:

590603 Armature


Price: 41.40 (Including VAT at 20%)

Approx shipping weight 250g

Ignition armature for 750 and 950 Series engines


798619 Boot


Quantity:

798619 Boot


Price: 4.86 (Including VAT at 20%)

Approx shipping weight 10g

Spark plug terminal boot for OHV Intek engine


692390 Stop Wire


Quantity:

692390 Stop Wire


Price: 3.42 (Including VAT at 20%)

Approx shipping weight 20g

Stop wire. Approx 42cm long


692353 (was 280774) Starter Pinion Gear


Quantity:

692353 (was 280774) Starter Pinion Gear


Price: 27.36 (Including VAT at 20%)

Approx shipping weight 40g

Starter motor pinion gear
24 teeth approx 58mm diameter


691265 Starter 'C' Clip


Quantity:

691265 Starter 'C' Clip


Price: 3.48 (Including VAT at 20%)

Approx shipping weight 5g

'C' clip retainer for later starter motors


691293 Brush Holder


Quantity:

691293 Brush Holder


Price: 23.70 (Including VAT at 20%)

Approx shipping weight 200g

Starter motor brush holder. Includes brushes.
For motor with metal baseplate bolted onto the retainer.


691286 Metal Plate


Quantity:

691286 Metal Plate


Price: 15.90 (Including VAT at 20%)

Approx shipping weight 60g

Starter motor base plate
Includes bearing


691656 Starter Solenoid


Quantity:

691656 Starter Solenoid


Price: 18.18 (Including VAT at 20%)

Approx shipping weight 200g

691656 Starter Solinoid, single poll
Please note - starter solenoids are generally originally provided by the equipment manufacturer not Briggs and Stratton
This is a fairly universal soleniod that fits most applications however, if you wish to replace the original exactly, a replacement would need to be obtained through the equipment (mower etc.) manufacturer


692318 Ignition Switch


Quantity:

692318 Ignition Switch


Price: 21.66 (Including VAT at 20%)

Approx shipping weight 120g

Indak ignition key switch
Please check wiring details pop-up below as some equipment manufacturers use similar looking switches with differing pin positions


691959 Ignition Key Set


Quantity:

691959 Ignition Key Set


Price: 8.10 (Including VAT at 20%)

Approx shipping weight 10g

Indak Ignition key set. Contains two keys
Flat profile. (see pop up link below for shape) Fits most electric start machines


845907 (797375) Voltage Regulator


Quantity:

845907 (797375) Voltage Regulator


Price: 43.44 (Including VAT at 20%)

Approx shipping weight 170g

12 Volt regulator and rectifier for many larger electric start engines
Approx 5.5cm x 8cm. 2 Yellow leads with rectangular connector, Red lead with round connector

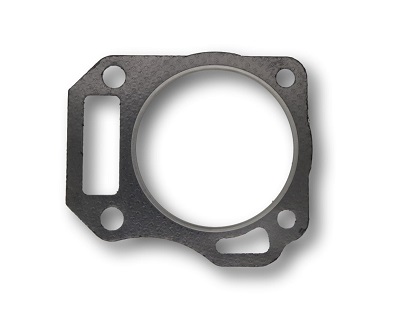

591445 Head Gasket


Quantity:

591445 Head Gasket


Price: 6.30 (Including VAT at 20%)

Approx shipping weight 20g

Cylinder head gasket for 950 series engine
Bore diameter 68.3mm


797194 Rocker Gasket


Quantity:

797194 Rocker Gasket


Price: 4.20 (Including VAT at 20%)

Approx shipping weight 10g

Rocker gasket for 550, 750 and 950 Horizontal crankshaft engines

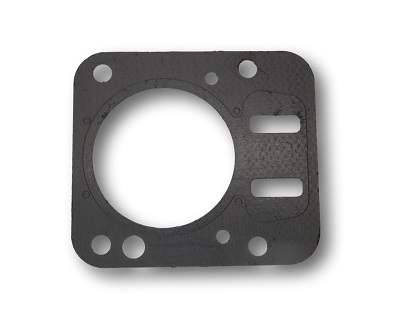

698210 Head Gasket


Quantity:

698210 Head Gasket


Price: 10.44 (Including VAT at 20%)

Approx shipping weight 20g

Cylinder head gasket for Briggs and Stratton 5HP - 6.5HP Intek horizontal crankshaft engine


691890 Rocker Cover Gasket


Quantity:

691890 Rocker Cover Gasket


Price: 4.32 (Including VAT at 20%)

Approx shipping weight 10g

Rocker gasket for original Intek engine
(exhaust on left as viewed from behind the engine)


694088 Gasket


Quantity:

694088 Gasket


Price: 6.00 (Including VAT at 20%)

Approx shipping weight 10g

Cylinder head plate gasket.


795440 (was 692044) Valve Stem Seal


Quantity:

795440 (was 692044) Valve Stem Seal


Price: 6.96 (Including VAT at 20%)

Approx shipping weight 5g

Valve stem seal

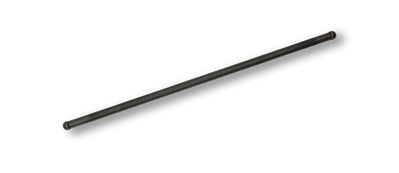

790287 Push Rod


Quantity:

790287 Push Rod


Price: 6.48 (Including VAT at 20%)

Approx shipping weight 30g

Steel push rod for 11, 12 and 15 series Intek horizontal crankshaft engines
Intake and exhaust
Approx 144mm overall length


699485 Crankcase Gasket


Quantity:

699485 Crankcase Gasket


Price: 12.72 (Including VAT at 20%)

Approx shipping weight 30g

Crankcase gasket for 12 series OHV horizontal engines.


692550 Oil Seal


Quantity:

692550 Oil Seal


Price: 6.36 (Including VAT at 20%)

Approx shipping weight 15g

PTO side oil seal for 12 Series Intek engines


299819S Oil Seal


Quantity:

299819S Oil Seal


Price: 3.12 (Including VAT at 20%)

Approx shipping weight 15g

Flywheel side oil seal
Approx 32mm outside diameter x 20mm inside diameter


691893 Exhaust Gasket


Quantity:

691893 Exhaust Gasket


Price: 3.90 (Including VAT at 20%)

Approx shipping weight 5g

Exhaust manifold to head gasket for Intek engine
Bolt hole centres approx 40mm apart


692237 Exhaust Gasket


Quantity:

692237 Exhaust Gasket


Price: 4.98 (Including VAT at 20%)

Approx shipping weight 5g

Exahust to manifold gasket for Intek horizontal 12 sereies engine
Bolt hole centres approx 40mm apart


796956 (was 393757) Deflector


Quantity:

796956 (was 393757) Deflector


Price: 6.48 (Including VAT at 20%)

Approx shipping weight 80g

Exhaust deflector. Includes screws.
Screw hole centres diameter approx 65mm


19069 Puller - Small


Quantity:

19069 Puller - Small


Price: 11.23 (Including VAT at 20%)

Approx shipping weight 140g

Flywheel puller for small engines
Distance between outer hole centres approx 40mm
If your engine has a square drive starter clutch holding down the flywheel, you will also require 690662 nut (see below)


690662 Nut


Quantity:

690662 Nut


Price: 4.80 (Including VAT at 20%)

Approx shipping weight 35g

Nut, crankshaft/flywheel
Required for puller use on engines which have a square drive rewind starter clutch


222698S Briggs & Stratton Spare Parts Flywheel key


Quantity:

222698S Briggs & Stratton Spare Parts Flywheel key


Price: 2.52 (Including VAT at 20%)

Approx shipping weight 5g

Aluminium flywheel key to fit most earlier engines
Approx. 14mm long x 3mm x 4mm
Note lighter colour to 796335 below


796335 Flywheel Key


Quantity:

796335 Flywheel Key


Price: 2.58 (Including VAT at 20%)

Approx shipping weight 5g

Flywheel key for later Intek, 800, 900 and 950 engines
Note darker colour to 222698S above


797286 Flywheel Key


Quantity:

797286 Flywheel Key


Price: 3.36 (Including VAT at 20%)

Approx shipping weight 5g

Flywheel key for 550, 750 and 950 horizontal crankshaft engine
1/4 Moon approx 18mm long x 6mm deep x 4mm thick


692191 3/16


Quantity:

692191 3/16" Key


Price: 5.04 (Including VAT at 20%)

Approx shipping weight 30g

Key, crankshaft pulley 3/16" (Approx 4.75mm) square section x 37mm long


691483 1/4


Quantity:

691483 1/4" Key


Price: 4.32 (Including VAT at 20%)

Approx shipping weight 20g

1/4" Square Pulley key. Approx 39mm long


798869 Key (Metric)


Quantity:

798869 Key (Metric)


Price: 4.80 (Including VAT at 20%)

Approx shipping weight 10g

Pulley key, metric
5mm square section x 35mm long


798305 Key


Quantity:

798305 Key


Price: 2.58 (Including VAT at 20%)

Approx shipping weight 10g

Square section drive key
3/16" Square section x 30mm long with rounded ends


Unlisted parts page

Briggs&Stratton uk | Horizontal Crankshaft 2-6.5 HP Engine Spares | Horizontal Crankshaft 2-6.5 HP OHV |  Briggs and Stratton Small Intek 800 and 950 Series Horizontal Crankshaft Engine Spare Parts

©copyright 2005 G.Campbell. All rights reserved
(see terms and conditions)

spacer image
