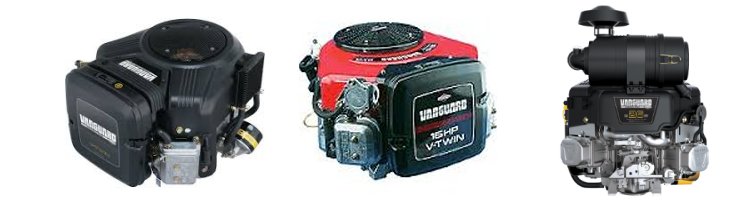

Vanguard Twin Cylinder Vertical Crankshaft Engine Spare Parts

Ride on mower/garden tractor cover
Protects against most weather conditions.
Width 100cm
Length 264cm
Height 130cm

Complete repair manual for all Vanguard V-Twin engines
Covers everything you need to know!

Service kit for Vanguard Twin cylinder engines which are fitted with 18cm diameter round air filter.
Includes 2 x 992306 Spark plug, 394018S Air filter, 272490S Pre-filter, Oil filter, 1.8 litres oil, instructions

BS14YC Spark plug for Vanguard Twin cylinder engines who's 6 digit model numbers begin;
29,303,305,35 & 381

16mm/19mm Spark plug box wrench for 992304 spark plug

Square paper air filter element for selected Vanguard V-twin engines
Approx 18cm x 16cm

Foam pre filter for use with 805113 element

Round paper air filter cartridge for model 29, 30 & 35 Vanguard Twin engines
Approx measurements - I/D 14cm, O/D 18cm, Height 5.5cm

Foam pre-filter element for 394018 air filter cartridge

Paper air filter cartridge for some larger engines
Approx 11cm diameter x 9.5cm high with 5cm hole at each end

Foam pre filter for 393957 cartridge
Can be retro fitted to extend filter life

Air filter cartridge for Vanguard twin cylinder engines whose model begine 38, 54 & 61
Approx measurements - I/D 14cm, O/D 20cm, Height 5.5cm

Pre filter foam for 692519 cartridge

Cylindrical Air filter cartridge fitted to some Vanguard Twin Cylinder engines.
Approx 18cm long x 9cm diameter

Air filter cartridge. Donaldson outer.
Approx 27cm long x 10.5cm diameter

Air filter cartridge. Donaldson inner
Approx 26cm long x 5.5cm diameter

Oil filter. For Vanguard twin cylinder engines
Approx 6cm tall x 7.5cm diameter

Oil filter for pressure lubricated engines
Approx 8.5cm tall

Extended oil drain pipe kit
Allows easier oil draining away from bodywork etc.
Includes 594200 (was 796530) drain pipe and 796532 Connector
Pipe can be clipped up out of the way when not in use
Can be retro fitted to any engine with 3/8" Pipe thread (approx 17mm drain plug thread outside diameter)

Oil drain adaptor and extension tube.
Quick drain sump plug valve and 20cm extension tube.
Fits most larger engines. (Sump plug thread approx 17mm outside diameter)

Oil filler/dipstick threaded rubber seal

Fuel tube for most applications

Sold in units of 20cm. Multiple purchases will be supplied in one total length
Use with 710075 clamps.(sold seperately)

Plated fuel tube hose clamp. Fits 11mm O/D fuel tube 395051

Black fuel tube clamp. Fits 12mm O/D fuel hose
(Slightly smaller than 95162)

Green fuel tube clamp. Fits fuel tube over 12mm O/D
(Slightly larger than 691038)

In line fuel shut off valve supplied with 2 x 95162 tube clamp

White in line fuel filter for pumped or higher pressure gravity fuel systems

Paper type in line fuel filter fitted in many pumped fuel systems

90 degree fuel filter

808656 Plastic fuel pump. Approx 50mm diameter x 25mm. 3 connectors

RPM tachometer to accurately set engine speed
Easy to use and compact. Complete with instructions and wallet
Suits any engine

Governor spring. For Vanguard twin cylinder engines whose model numbers begin 29, 30, 35, & 38
Approx 48mm long x 12mm diameter

Idle Governor spring. For Vanguard twin cylinder engines whose model numbers begin 29, 30, 35, & 38
Approx 42mm long x 7mm diameter

Carburettor to Manifold gasket for Vanguard Twin engine whose Model number begin 29 or 30
Bolt hole centres approx 61mm apart

Intake gasket (Manifold to cylinder head) for Vanguard Twin engines whose model begins 29,30 and 35

Intake gasket (Manifold to cylinder head) for Vanguard Twin engines whose model begins 38

Intake gasket (manifold to cylinder head) for 54 and 61 series (big block) Vanguard twin engines
Bolt hole centres approx 60mm apart

Carburetor rubber bowl seal for Vanguard Twin engines with a standard round float bowl
Approx 5.7cm outside diameter

Copper carburetor lower sealing washer for Vanguard Twin engines with a standard round float bowl
Approx 7.5 mm inside diameter

Carburettor float needle valve for Vanguard Twin engines with a standard round float bowl

Float bowl gasket for Vanguard Twin engines fitted with twin choke Teikei carb

Float bowl gasket. For older vanguard twin engines fitted with twin choke Nikki Carb.

Twin Choke Intake gasket for Vangaurd twin engine whose model number begins 35 & 38

Twin Choke Intake gasket for Vangaurd twin engine whose model number begins 35 & 38

1/4 inch diameter bolt for engine cowling, carb bracket etc.
(approx 14mm long)

Screw 10-32 thread x 3/8" long (0.19" thread diapmeter - approx 4.8mm)
Used in many places where a small short screw is required such as pressed steel muffler guards, covers and shields etc.

691656 Starter Solinoid, single pole
Please note - starter solenoids are generally originally provided by the equipment manufacturer not Briggs and Stratton. This is a fairly universal soleniod that fits most applications however, if you wish to replace the original exactly, a replacement would need to be obtained through the equipment (mower etc.) manufacturer

Ignition key switch
Please check wiring details pop-up below as some equipment manufacturers use similar looking switches with differing pin positions

Indak Ignition key set. Contains two keys
Flat profile. Fits most electric start machines

Ignition Key. Delta

Ignition spark tester
Tests the ignition system for efficiency
For all engines

Ignition armature (single) for later 29, 30, 35 and 38 model Vanguard Twin engines. Includes wire with diode to connect stop circuit with other armature.
Bolt hole centres approx 64mm apart, old part number 844548

Electronic ignition armature magneto coil for older 29, 30, 35 and 38 series Vangaurd engines
Mounting hole centres approx 64mm apart

Rubber spark plug boot and terminal

Wire assembly with in line diodes. Connects the two armature stop connections on Vanguard Twin engines

Dual circuit alternator
Red cable - 3 amp DC unregulated charging output
Black cable - 5 amp AC for lights

5-9 Amp Alternator. Single black wire with round green connector.
Used in conjunction with 794360 Regulator.

12 Volt regulator and rectifier for many larger electric start engines
Approx 4cm square. Yellow lead with round connector, Red lead with round connector

Alternator, 10-16A regulated with 2 black leads and yellow rectangular two pin connector
Used in conjunction with 845907 Regulator

12 Volt regulator and rectifier for many larger electric start engines
Approx 5.5cm x 8cm. 2 Yellow leads with rectangular connector, Red lead with round connector

693551 Starter motor assy. With 14 tooth metal pinion gear with plastic centre.
3 5/8" Body Housing length. Please count the teeth on your original prior to ordering.
This motor is NOT interchangeable with the 16 tooth plastic gear motor.

Sarter motor clutch and gear assembly
(14 tooth 693713 metal gear, 'c' clip retainer)
Please ensure that your current gear has 14 teeth.
This gear is NOT interchangeable with the 16 tooth plastic gear.

Metal 14 tooth starter gear with plastic inner for some starter motors
This gear is NOT interchangeable with the 16 tooth plastic starter gear. The tooth pitch is different

Starter motor
Has 16 tooth plastic drive gear and 4 9/16" housing length

Electric starter motor drive kit for most later starter motors
Plastic drive gear and "c" clip type retainer

16 tooth plastic starter gear for most starter motors

'C' clip retainer for later starter motors

Starter motor brush holder. Includes brushes.
For motor with metal baseplate bolted onto the retainer.

Starter motor base plate
Includes bearing

Retaining pin. For pin retained started gears

Electric starter motor drive kit for most earlier starter motors
Plastic drive gear and pin type retainer.(also suits early models without return spring & cage)

Starter drive. 15 tooth metal starter pinion.
Note-this has a different tooth pitch to the plastic pinion drive and is not interchangeable.

Recoil pulley for Vanguard twin engines which are fitted with plastic pawls and 51mm diameter pawl plate.
(approx 16cm diameter)

Recoil spring for Vanguard V twin engines
(Suits 692085 pulley)

Starter pawl kit. Includes 2 x pawl and spring for starter that use 16cm diameter 692085 Pulley and 51mm diameter pawl plate.

Starter pawl friction plate
Approx 51mm diameter

"C" ring retainer for 691529 Plate

Friction plate for later Vanguard Twin Engines. Includes screw and c clip
Plate approx 60mm diameter

Pawl set. Includes 2 x pawl and springs
For starters with 845219 60mm diameter plate

Large starter grip for 5mm rope. Includes insert

Rope, starter. Heavy Duty 5mm diameter x Approx 2.3m long

Rocker cover gasket (sold individually) for Vanguard OHV twin cylinder engines whose model number begin 29, 30, 35 & 38

Rocker cover bolt sealing washer

Intake valve seal

Graphoil (not metal) cylinder head gasket (supplied individually) for Vanguard twin OHV engines whose model number begins 29 and 30
Prior to date code 96033100 a thin metal gasket was used. If you have this please contact us for availability.

Graphoil (not metal) cylinder head gasket (supplied individually) for Vanguard twin OHV engines whose model number begins 35
Prior to date code 96033100 a thin metal gasket was used. If you have this please contact us for availability.

Graphoil (not metal) cylinder head gasket (supplied individually) for Vanguard twin OHV engines whose model number begins 38
Prior to date code 96033100 a thin metal gasket was used. If you have this please contact us for availability.

Rocker cover gasket for series 54 and 61 (big block) Vanguard twin engines

Cylinder head gasket for 54 and 61 series vanguard engine (big block)
Bore diameter approx 85.5mm

Seal. Flywheel side
Approx 42mm O/D x 29mm I/D

Lower oil seal for Vanguard twin cylinder engines
O/D approx 48mm I/D approx 33mm

Exhaust manifold gasket for Vanguard Twin engine whose model number begins 29, 30 and 35
Bolt hole centres approx 45mm apart

Exhaust manifold gasket for Vanguard Twin engine whose model number begins 38
Bolt hole centres approx 49mm apart

Exhaust manifold gasket for 54 and 61 series (big block) Vanguard engines
Bolt hole centres approx 58mm apart

Exhaust deflector. Includes screws
Fits many larger engine mufflers including 691874

Flywheel woodruff key for Vanguard twin cylinder engines whose model begine 29, 30, 35 & 38
Approx 5.5mm thick. (2 different profiles supplied)

Flywheel puller for larger engines
Distance between outer hole centres approx 72mm
Includes long and short bolt sets
If your engine has a square drive starter clutch holding down the flywheel, you will also require 690662 nut (see below)

1/4" Square Pulley key. Approx 39mm long
