Briggs and Startton Small Vanguard Horizontal Engine Spare Parts

Briggs&Stratton uk | Horizontal Crankshaft 2-6.5 HP Engine Spares | Horizontal Crankshaft 2-6.5 HP OHV |  Briggs and Startton Small Vanguard Horizontal Engine Spare Parts

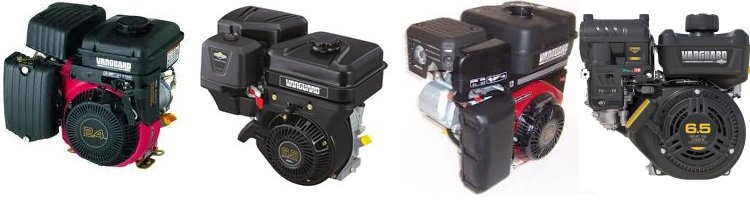

Small Vanguard Horizontal Engine Spare Parts Click Engine Image for more Information about this Engine Group

These engines are usually to be found on a variety of utility applications such as Tillers, Rotovators,
Cylinder Mowers, Cement Mixers, Scarifiers, Generators, Pumps, Bale Lifters, Go Carts etc.

They are overhead valve with the spark plug set deep to one side or the top of a rocker cover.

The fuel tank will be mounted directly on top.

The cylinder and piston are at 45 degrees to the vertical giving the engine a compact look

The pull start will be on the side with the crankshaft emerging horizontally on the opposite side.

Some Models may have an integral reduction gearbox on the output side

The Model, Type and Code numbers are stamped into the side or top edge of the rocker cover or on a small
aluminium plate rivited to the cowling
The Model number will begin with 5,8,11 or 13

Briggs and Stratton Single Cylinder Vanguard Repair Manual 272147


Quantity:

Briggs and Stratton Single Cylinder Vanguard Repair Manual 272147


Price: 18.99

Approx shipping weight 680g

Repair manual for all single cylinder Vanguard engines

Covers all you need to know!


Fuel Fit Additive 992380


Quantity:

Fuel Fit Additive 992380


Price: 4.19 (Including VAT at 20%)

Approx shipping weight 130g

Briggs and Stratton Petrol additive for all 4 stroke and 2 stroke petrol engines
Prevents fuel deterioration during periods of non-use and generally aids engine efficiency
Essential for correct winter storage of lawnmowers etc.

100 ml, treats 10 litres of fuel


Spark Plug 992304


Quantity:

Spark Plug 992304


Price: 4.39 (Including VAT at 20%)

Approx shipping weight 50g

RC12YC Spark plug for all OHV engines


992355 (was 6095E) Spark Plug Wrench


Quantity:

992355 (was 6095E) Spark Plug Wrench


Price: 6.00 (Including VAT at 20%)

Approx shipping weight 120g

16mm/19mm Spark plug box wrench for 992304 spark plug

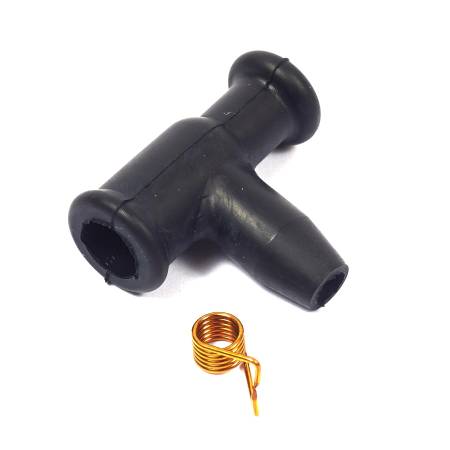

710634 Boot


Quantity:

710634 Boot


Price: 9.36 (Including VAT at 20%)

Approx shipping weight 10g

Spark plug boot for Vanguard horizontal crankshaft engines


798619 Boot


Quantity:

798619 Boot


Price: 4.86 (Including VAT at 20%)

Approx shipping weight 10g

Spark plug terminal boot for later Vanguard 5.5HP and 6.5HP engines (model begins 13H and 13L)


Briggs and Stratton Engine Speed Tachometer 19200E


Quantity:

Briggs and Stratton Engine Speed Tachometer 19200E


Price: 17.57 (Including VAT at 20%)

Approx shipping weight 40g

RPM tachometer to accurately set engine speed
Easy to use and compact. Complete with instructions and wallet
Suits any engine


992015 Throttle control


Quantity:

992015 Throttle control


Price: 8.22 (Including VAT at 20%)

Approx shipping weight 105g

Throttle control and cable to fit many applications
1.35m long. End can be bent to suit
Negative action(Control pushed to fast, shortens inner wire)


992016 Throttle control


Quantity:

992016 Throttle control


Price: 8.22 (Including VAT at 20%)

Approx shipping weight 105g

Throttle control and cable to fit many applications
1.35m long. End can be bent to suit
Positive action(Control pushed to fast, lengthens inner wire)


690798/691044 Cable Clamp & Screw


Quantity:

690798/691044 Cable Clamp & Screw


Price: 7.14 (Including VAT at 20%)

Approx shipping weight 10g

Clamp and screw, throttle cable


711459 Filter


Quantity:

711459 Filter


Price: 14.64 (Including VAT at 20%)

Approx shipping weight 40g

Air filter cartridge For 2.4HP Vanguard horizontal crankshaft engine
Overall dimensions (including rubber edge 11.5cm x 9.7cm


711460 Pre Filter


Quantity:

711460 Pre Filter


Price: 7.26 (Including VAT at 20%)

Approx shipping weight 10g

Foam pre filter. For 2.4HP Vanguard horizontal crankshaft engine


710265 Air Filter Cartridge


Quantity:

710265 Air Filter Cartridge


Price: 16.38 (Including VAT at 20%)

Approx shipping weight 110g

Air filter cartridge. Fits selected Vanguard 4HP horizontal crankshaft engines
Approx 16cm x 9cm


710267 Pre Cleaner


Quantity:

710267 Pre Cleaner


Price: 11.34 (Including VAT at 20%)

Approx shipping weight 25g

Air filter pre-cleaner foam. For 710265 filter


491588S Genuine Briggs Spares Air Filter


Quantity:

491588S Genuine Briggs Spares Air Filter


Price: 6.12 (Including VAT at 20%)

Approx shipping weight 40g

Paper air filter for selected Vanguard engines
Approx 13cm x 11.5cm


491435S Pre filter


Quantity:

491435S Pre filter


Price: 4.32 (Including VAT at 20%)

Approx shipping weight 10g

Foam pre filter for 491588 paper filter fitted to horizontal crankshaft engines

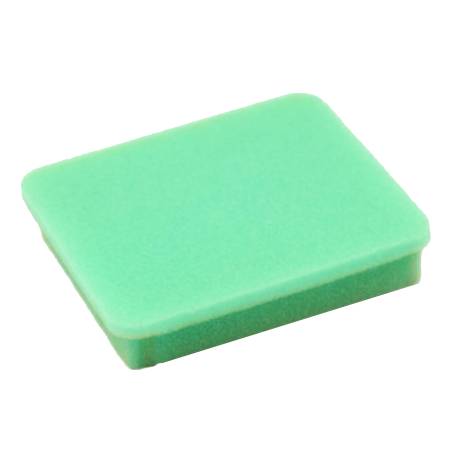

691315 Filter


Quantity:

691315 Filter


Price: 6.06 (Including VAT at 20%)

Approx shipping weight 20g

Air filter. Foam for selected Vangaurd engines
Approx 12.5cm x 11cm inner rectangle with overhanging edges


494511S Air Filter Cartridge


Quantity:

494511S Air Filter Cartridge


Price: 12.48 (Including VAT at 20%)

Approx shipping weight 110g

Paper air filter cartridge for selected Vanguard engines
Approx 16cm x 7.5cm with paper creases running lengthways


Pre filter 492889


Quantity:

Pre filter 492889


Price: 5.58 (Including VAT at 20%)

Approx shipping weight 10g

Foam pre filter for 494511S air filter cartridge


797033 Air Filter


Quantity:

797033 Air Filter


Price: 14.16 (Including VAT at 20%)

Approx shipping weight 190g

Air filter. For selected Vangaurd (model starts 13) engines
Includes pre-filter foam, seal and gasket
Approx 11.5cm long x 6cm high

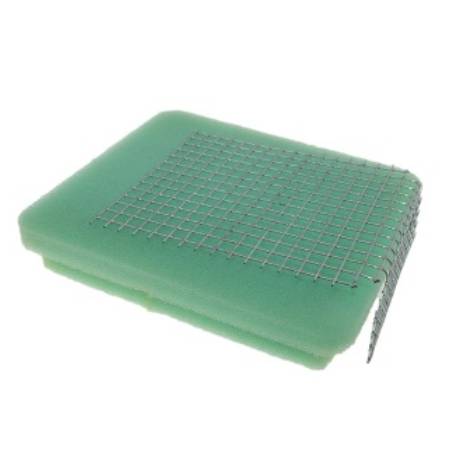

715511 Air Filter


Quantity:

715511 Air Filter


Price: 16.68 (Including VAT at 20%)

Approx shipping weight 30g

Foam air filter element for some Vangaurd 110000 and 130000 engines. Includes 90 degree gauze spacer.
Inner foam rectangle approx 12.5cm x 10.5cm with larger lip around edge.


19200E Briggs and Stratton Engine Speed Tachometer


Quantity:

19200E Briggs and Stratton Engine Speed Tachometer


Price: 17.57 (Including VAT at 20%)

Approx shipping weight 40g

RPM tachometer to accurately set engine speed
Easy to use and compact. Complete with instructions and wallet
Suits any engine

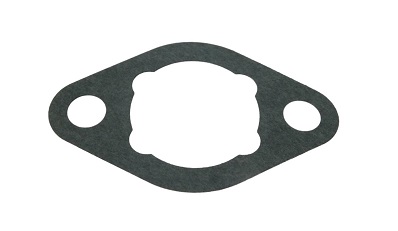

711499 Gasket


Quantity:

711499 Gasket


Price: 3.12 (Including VAT at 20%)

Approx shipping weight 5g

Air filter gasket for 2.4HP Vanguard engine
Bolt hole centres approx 37mm apart

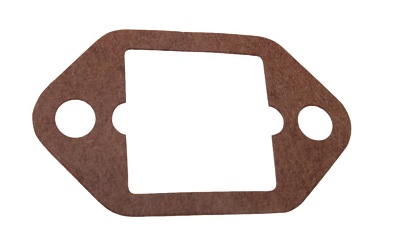

710109 Gasket


Quantity:

710109 Gasket


Price: 3.42 (Including VAT at 20%)

Approx shipping weight 5g

Air filter gasket for 4HP Vanguard engine
Bolt hole centres approx 42mm apart


710060 Gasket


Quantity:

710060 Gasket


Price: 4.80 (Including VAT at 20%)

Approx shipping weight 5g

Intake/ Air filter gasket for some Vanguard engines
Bolt hole centres approx 43mm apart


711778 Bowl Seal


Quantity:

711778 Bowl Seal


Price: 6.00 (Including VAT at 20%)

Approx shipping weight 5g

Float bowl seal for 2.4HP Vanguard horizontal crankshaft engine
Approx 40mm diameter


711319 Washer


Quantity:

711319 Washer


Price: 3.48 (Including VAT at 20%)

Approx shipping weight 5g

Float bowl sealing washer for 4HP (medel 8) and 5.5HP (model 11) Vanguard engine
Approx 10mm O/D x 7mm I/D

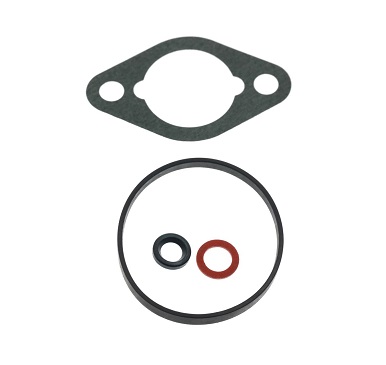

715081 Gasket set


Quantity:

715081 Gasket set


Price: 16.44 (Including VAT at 20%)

Approx shipping weight 10g

Carburettor gasket set for 4HP and 5.5HP Vanguard engine
Rectangular section bowl seal approx 45mm diameter x 3mm deep.

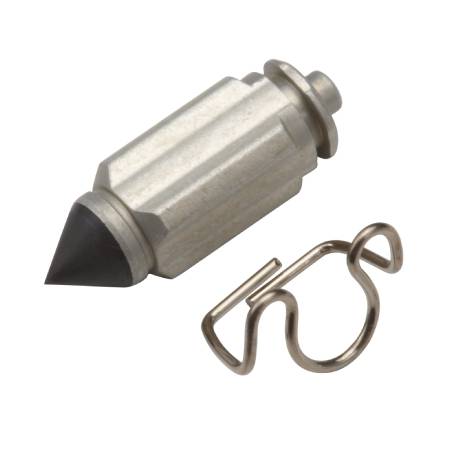

715075 Valve


Quantity:

715075 Valve


Price: 18.00 (Including VAT at 20%)

Approx shipping weight 5g

Float needle valve for 4HP (model 8) and 5.5HP (model 11) Vanguard engines
Includes retainer clip
Approx 11mm overal length

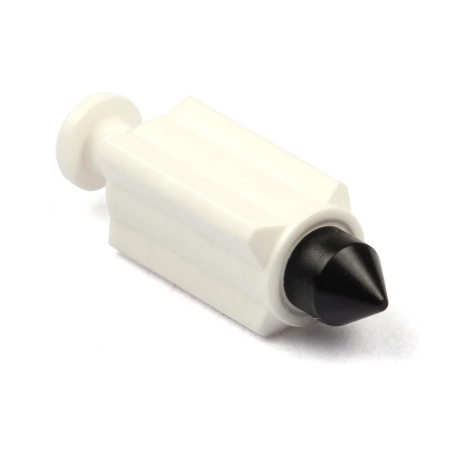

698537 Needle


Quantity:

698537 Needle


Price: 18.00 (Including VAT at 20%)

Approx shipping weight 5g

Plastic needle valve for later 5.5HP and 6.5HP Vanguard engines (model starts 13H or 13L)

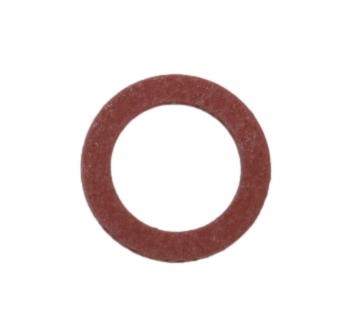

690997 Washer


Quantity:

690997 Washer


Price: 4.44 (Including VAT at 20%)

Approx shipping weight 5g

Sealing washer
Approx 8mm I/D x 12mm O/D


710065 Strainer


Quantity:

710065 Strainer


Price: 12.24 (Including VAT at 20%)

Approx shipping weight 60g

Fuel strainer for Vanguard horizontal crankshaft engines
Approx 70mm long to fit tank opening 42mm diameter


711537 Fuel Cap


Quantity:

711537 Fuel Cap


Price: 7.62 (Including VAT at 20%)

Approx shipping weight 60g

Fuel cap for 2.4HP Vanguard engine
Tank thread O/D approx 55mm


794641 Fuel Cap


Quantity:

794641 Fuel Cap


Price: 6.12 (Including VAT at 20%)

Approx shipping weight 50g

Fuel cap. Bayonet fitting approx 7cm outside diameter
For later 5.5HP & 6.5HP (model starts 13H & 13L) engines


710490 Fuel Cap


Quantity:

710490 Fuel Cap


Price: 7.38 (Including VAT at 20%)

Approx shipping weight 95g

Fuel cap for many Vanguard horizontal crankshaft engines
Tank thread outside diameter approx 55mm


716111 (715224) Fuel Tap


Quantity:

716111 (715224) Fuel Tap


Price: 23.52 (Including VAT at 20%)

Approx shipping weight 70g

Fuel tap with filter bowl. For many Vanguard horizontal crankshaft engines.
Inlet and outlet pipes parallel with each other


715901 Fuel Valve


Quantity:

715901 Fuel Valve


Price: 18.18 (Including VAT at 20%)

Approx shipping weight 40g

Fuel shut off valve assembly with filter bowl.
For selected 2.4HP, 4HP and 5.5HP Vanguard engines whose model start with 5, 8 and 11 respectively
Inlet and outlet pipes at 90 degrees to each other.

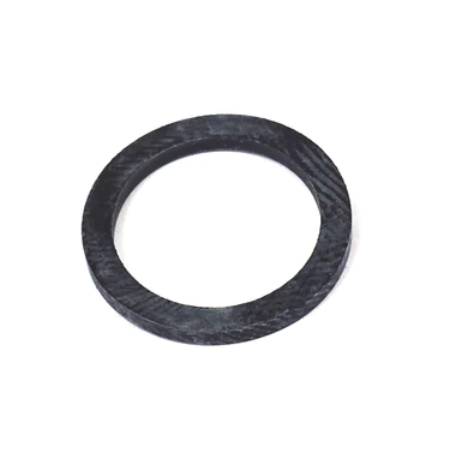

710072 Seal


Quantity:

710072 Seal


Price: 4.32 (Including VAT at 20%)

Approx shipping weight 5g

Tap filter bowl seal. For both 716111 and 715901 fuel taps.
Approx 15mm I/D x 20mm O/D


298090S Fuel Filter


Quantity:

298090S Fuel Filter


Price: 4.20 (Including VAT at 20%)

Approx shipping weight 10g

Red in line fuel filter for gravity fed fuel systems


394358S Fuel Filter


Quantity:

394358S Fuel Filter


Price: 4.20 (Including VAT at 20%)

Approx shipping weight 10g

White 75 micron in line fuel filter


Briggs and Stratton Fuel Tube 395051R


Quantity:

Briggs and Stratton Fuel Tube 395051R


Price: 3.66 (Including VAT at 20%)

Approx shipping weight 20g per 20cm

Fuel tube for most applications

Sold in units of 20cm. Multiple purchases will be supplied in one total length
Use with 710075 clamps.(sold seperately)


Fuel Tube clamp 710075


Quantity:

Fuel Tube clamp 710075


Price: 2.88 (Including VAT at 20%)

Approx shipping weight 10g

Plated fuel tube hose clamp. Fits 11mm O/D fuel tube 395051


Fuel Tube Clamp - Black 691038


Quantity:

Fuel Tube Clamp - Black 691038


Price: 2.82 (Including VAT at 20%)

Approx shipping weight 10g

Black fuel tube clamp. Fits 12mm O/D fuel hose
(Slightly smaller than 791850)

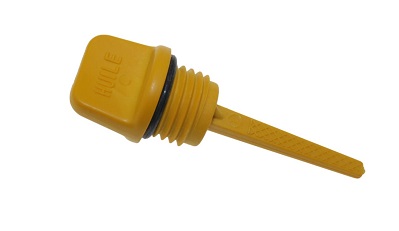

715588 Dipstick


Quantity:

715588 Dipstick


Price: 6.18 (Including VAT at 20%)

Approx shipping weight 80g

Oil dipstick. Includes o ring seal
For Vanguard horizontal crankshaft engines
Approx 85mm overall length including cap
Thread outside diameter 20mm


715226 Starter Rewind


Quantity:

715226 Starter Rewind


Price: 87.84 (Including VAT at 20%)

Approx shipping weight 740g

Rewind assembly for 4HP(Model 8), 5.5HP(Model 11) and 6.6HP(Model 138) Vangaurd engines.
Incudes flywheel cup for converting older metal pawl starters
Mounting bolt hole centre pitch circle approx 165mm diameter


66574 Rope


Quantity:

66574 Rope


Price: 4.14 (Including VAT at 20%)

Approx shipping weight 50g

Rope, starter. Heavy Duty 5mm diameter x Approx 2.3m long


280399S Rope


Quantity:

280399S Rope


Price: 5.16 (Including VAT at 20%)

Approx shipping weight 35g

3.5mm diameter recoil rope for quantum engines.
Approx 2.4m long white
Replaces shorter rope 66734


393152 Rubber Grip


Quantity:

393152 Rubber Grip


Price: 5.28 (Including VAT at 20%)

Approx shipping weight 40g

Rubber recoil grip with plastic insert suits engines where grip returns to the engine


493824 Recoil Pulley & Spring


Quantity:

493824 Recoil Pulley & Spring


Price: 31.08 (Including VAT at 20%)

Approx shipping weight 190g

Recoil pulley & spring for selected Vanguard horizontal 4HP and 5.5HP engines that have metal pawls
Approx 13.5cm diameter


691656 Starter Solenoid


Quantity:

691656 Starter Solenoid


Price: 18.18 (Including VAT at 20%)

Approx shipping weight 200g

691656 Starter Solinoid, single poll
Please note - starter solenoids are generally originally provided by the equipment manufacturer not Briggs and Stratton
This is a fairly universal soleniod that fits most applications however, if you wish to replace the original exactly, a replacement would need to be obtained through the equipment (mower etc.) manufacturer


692318 Ignition Switch


Quantity:

692318 Ignition Switch


Price: 21.66 (Including VAT at 20%)

Approx shipping weight 120g

Indak ignition key switch
Please check wiring details pop-up below as some equipment manufacturers use similar looking switches with differing pin positions


691959 Ignition Key Set


Quantity:

691959 Ignition Key Set


Price: 8.10 (Including VAT at 20%)

Approx shipping weight 10g

Indak Ignition key set. Contains two keys
Flat profile. (see pop up link below for shape) Fits most electric start machines


692390 Stop Wire


Quantity:

692390 Stop Wire


Price: 3.42 (Including VAT at 20%)

Approx shipping weight 20g

Stop wire. Approx 42cm long


794360 Voltage Regulator (was 691188)


Quantity:

794360 Voltage Regulator (was 691188)


Price: 42.42 (Including VAT at 20%)

Approx shipping weight 80g

12 Volt regulator and rectifier for some later Vanguard electric start engines
Approx 4cm square. Yellow lead with round connector, Red lead with round connector


845907 (797375) Voltage Regulator


Quantity:

845907 (797375) Voltage Regulator


Price: 43.44 (Including VAT at 20%)

Approx shipping weight 170g

12 Volt regulator and rectifier for some later Vangauard electric start engines
Approx 5.5cm x 8cm. 2 Yellow leads with rectangular connector, Red lead with round connector

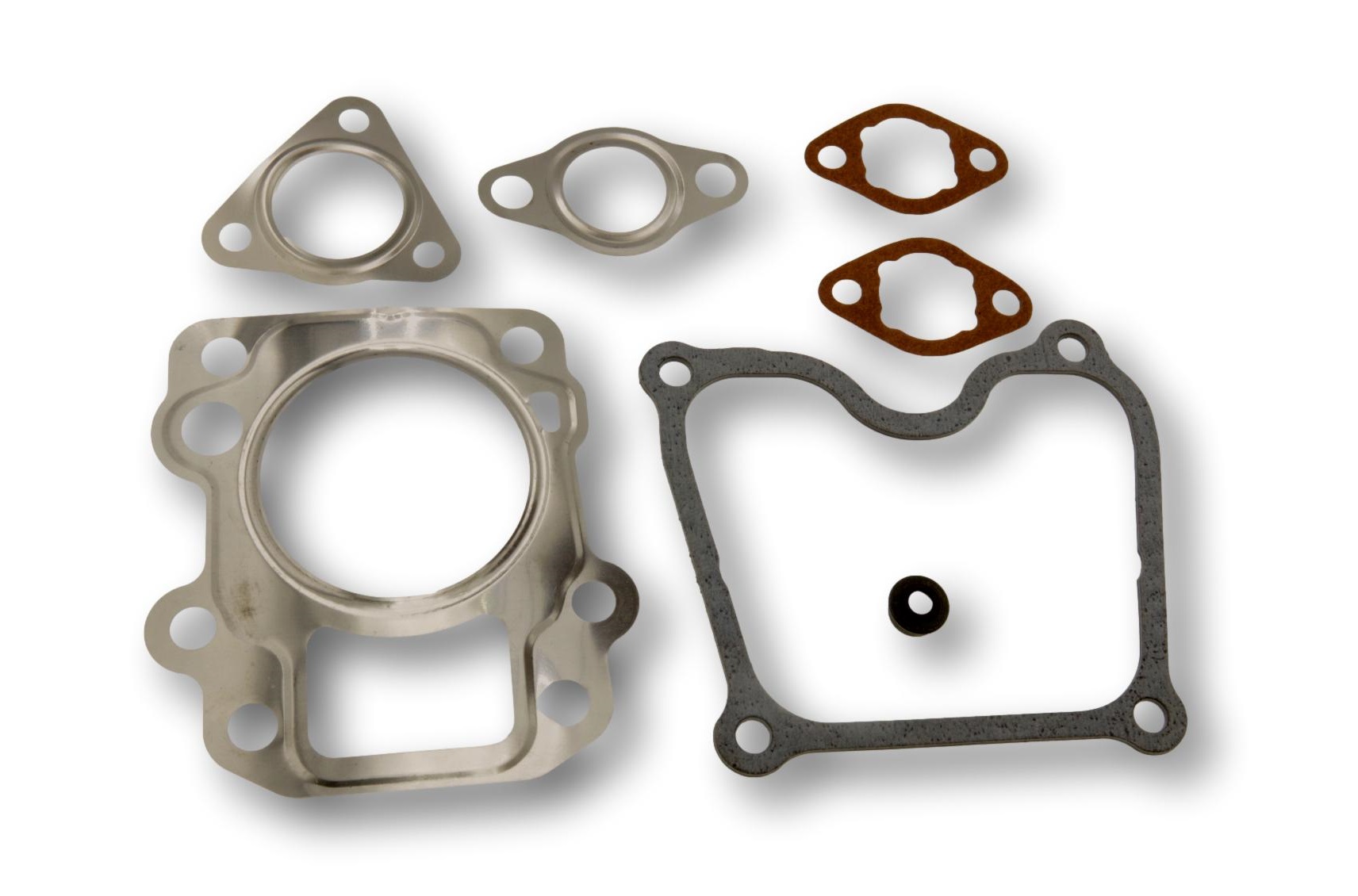

716238 Head Gasket Set


Quantity:

716238 Head Gasket Set


Price: 13.62 (Including VAT at 20%)

Approx shipping weight 60g

Cylinder head gasket set for 2.4HP (model 50000 series) engine
Bore diameter approx 52mm

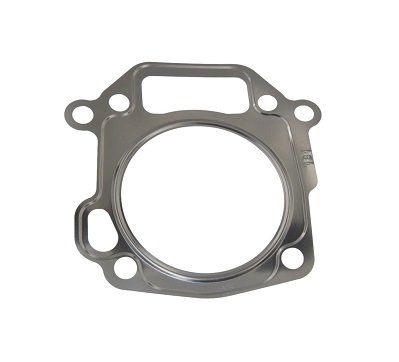

710137 Head Gasket


Quantity:

710137 Head Gasket


Price: 8.34 (Including VAT at 20%)

Approx shipping weight 20g

Cylinder head gasket for 4HP (model begins 8) Vanguard Engine
Bore diameter approx 62mm

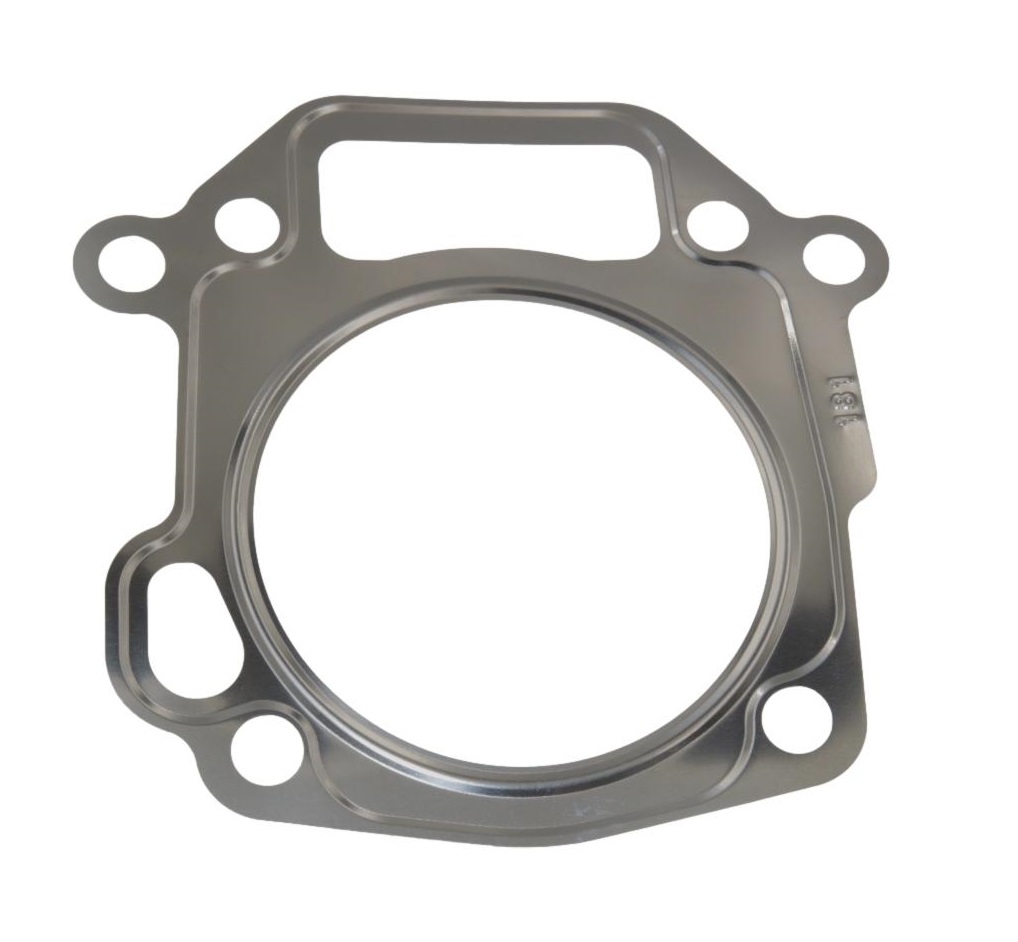

710021 Head Gasket


Quantity:

710021 Head Gasket


Price: 12.24 (Including VAT at 20%)

Approx shipping weight 30g

Metal cylinder head gasket for 5.5HP (Model begins 11) Vangaurd engine
Bore diameter approx 68mm

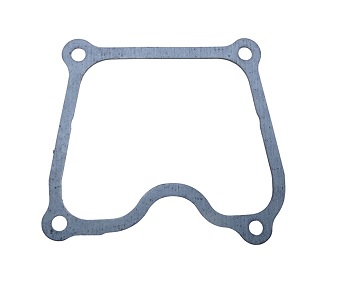

711490 Rocker Gasket


Quantity:

711490 Rocker Gasket


Price: 4.38 (Including VAT at 20%)

Approx shipping weight 20g

Rocker cover gasket for 2.4HP (series 50000) and 4HP (series 86000) Vanguard engines

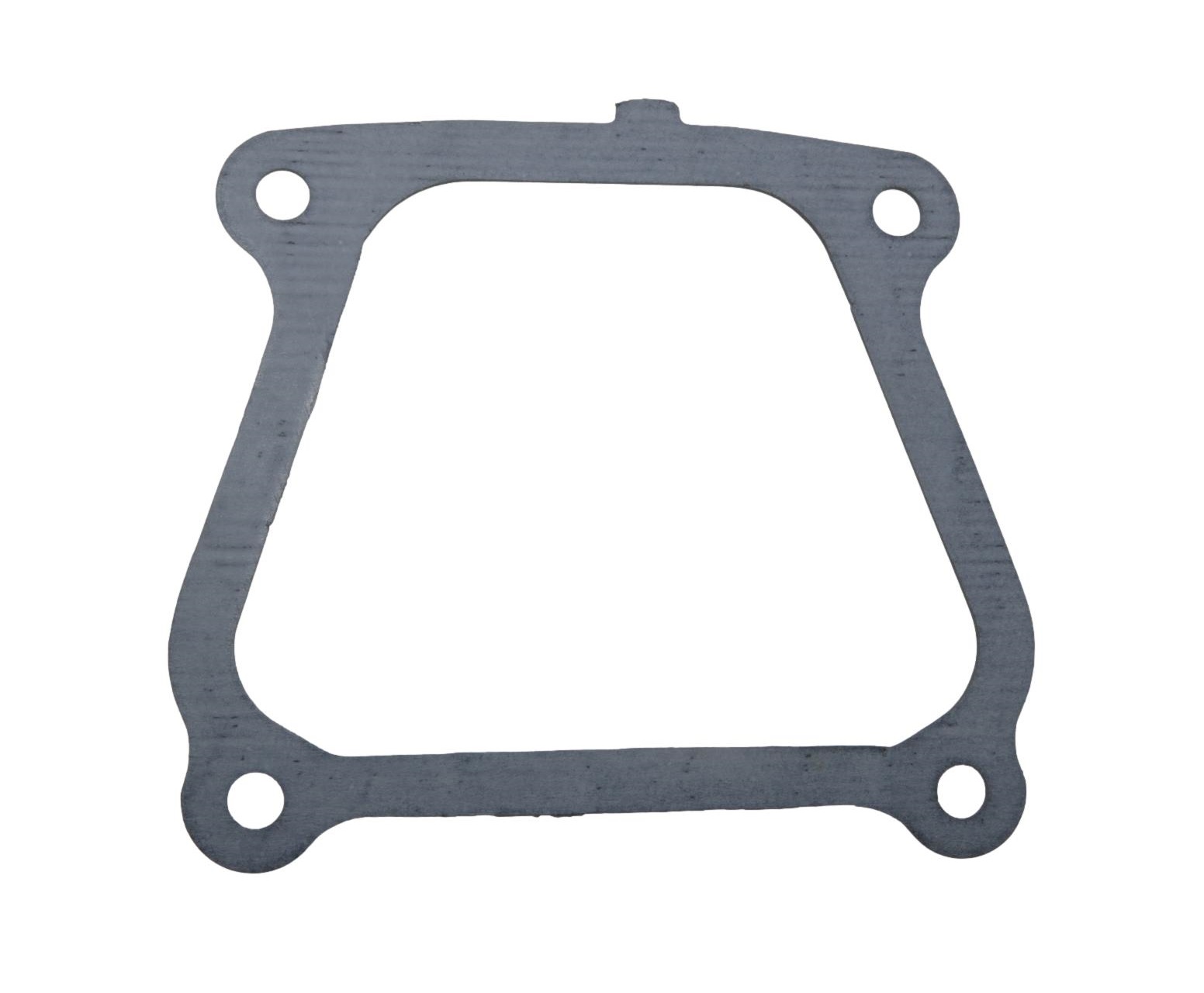

710024 Rocker Cover Gasket


Quantity:

710024 Rocker Cover Gasket


Price: 12.00 (Including VAT at 20%)

Approx shipping weight 30g

Valve rocker cover gasket for 4HP (medel 85000) and 5.5HP (model 110000) Vanguard OHV engine

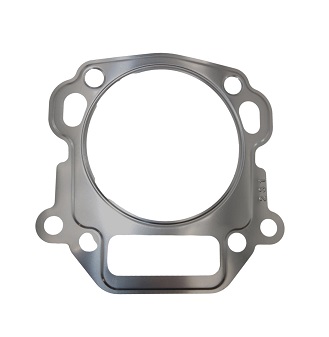

710624 Head Gasket


Quantity:

710624 Head Gasket


Price: 8.88 (Including VAT at 20%)

Approx shipping weight 10g

Metal head gasket for Vanguard (model begins 138) OHV horizontal crankshaft engine

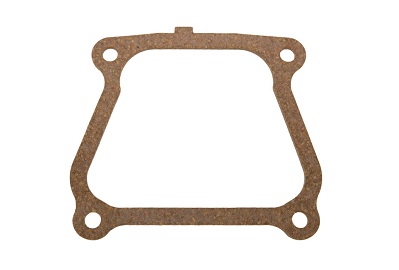

710626 Rocker Gasket


Quantity:

710626 Rocker Gasket


Price: 5.94 (Including VAT at 20%)

Approx shipping weight 10g

Rocker cover gasket for Vanguard (Model begins 138) OHV horizontal crankshaft engine

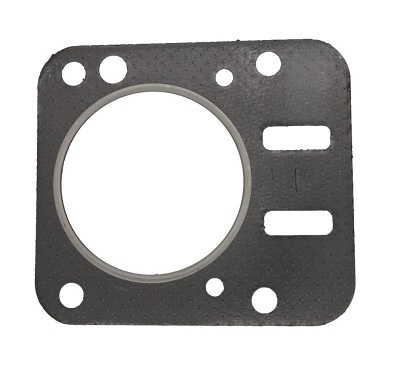

798461 Head Gasket


Quantity:

798461 Head Gasket


Price: 11.10 (Including VAT at 20%)

Approx shipping weight 40g

Head gasket for later Vanguard 5.5HP and 6.5HP engines (model begins 13H and 13L)
Bore approx 72mm diameter


691890 Rocker Cover Gasket


Quantity:

691890 Rocker Cover Gasket


Price: 4.32 (Including VAT at 20%)

Approx shipping weight 10g

Rocker gasket for later Vanguard 5.5HP and 6.5HP engines (model begins 13H and 13L)


694088 Gasket


Quantity:

694088 Gasket


Price: 6.00 (Including VAT at 20%)

Approx shipping weight 10g

Cylinder head plate gasket. For later Vanguard 5.5HP and 6.5HP engines (model begins 13H and 13L)


299819S Oil Seal


Quantity:

299819S Oil Seal


Price: 3.12 (Including VAT at 20%)

Approx shipping weight 15g

Upper oil seal (flywheel side) for later 5.5HP and 6.5HP Vanguard engine (model starts 13H or 13L)
Approx 32mm outside diameter x 20mm inside diameter


692550 Oil Seal


Quantity:

692550 Oil Seal


Price: 6.36 (Including VAT at 20%)

Approx shipping weight 15g

PTO side oil seal for later (model starts 13H or 13L) Vanguard engines.
Approx 41mm O/D x 25mm I/D

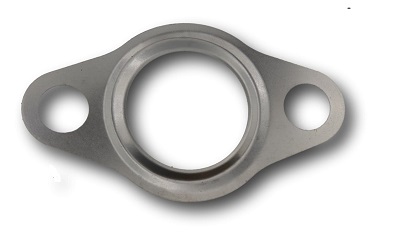

711244 Exhaust Gasket


Quantity:

711244 Exhaust Gasket


Price: 6.00 (Including VAT at 20%)

Approx shipping weight 5g

Metal exhaust gasket for 2.4HP, 4HP and 5.5 HP Vanguard engines
Bolt hole centres approx 47mm apart

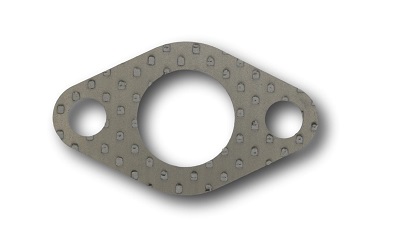

710082 Exhaust Gasket


Quantity:

710082 Exhaust Gasket


Price: 6.00 (Including VAT at 20%)

Approx shipping weight 10g

Exhaust gasket for Vangaurd (model starts 13) engines
Bolt hole centres approx 45mm apart

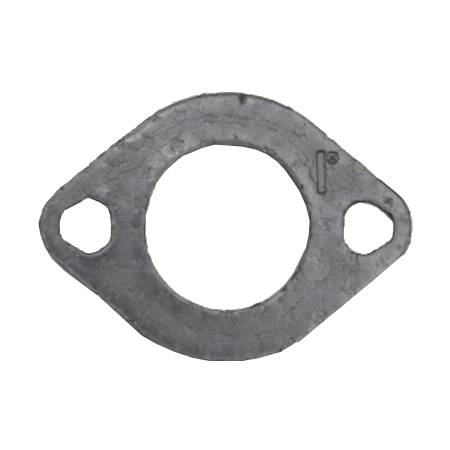

798516 Exhaust Gasket


Quantity:

798516 Exhaust Gasket


Price: 3.66 (Including VAT at 20%)

Approx shipping weight 10g

Exhaust gasket for later 5.5HP and 6.5HP Vanguard engines (model begins 13H or 13L)
Bolt hole centres approx 40mm apart


19203 Puller - Large


Quantity:

19203 Puller - Large


Price: 10.97 (Including VAT at 20%)

Approx shipping weight 230g

Flywheel puller for Vanguard horizontal engines
Distance between outer hole centres approx 72mm
Includes long and short bolt sets


710037 Flywheel Key


Quantity:

710037 Flywheel Key


Price: 5.64 (Including VAT at 20%)

Approx shipping weight 5g

Flywheel woodruff key for Vanguard horizontal engines
Approx 4.5mm thick x 15mm long half moon


796335 Flywheel Key


Quantity:

796335 Flywheel Key


Price: 2.58 (Including VAT at 20%)

Approx shipping weight 5g

Flywheel key. For later Vangaurd (model starts 13H or 13L) engines


692191 3/16


Quantity:

692191 3/16" Key


Price: 5.04 (Including VAT at 20%)

Approx shipping weight 30g

Key, crankshaft pulley 3/16" (Approx 4.75mm) square section x 37mm long


691483 1/4


Quantity:

691483 1/4" Key


Price: 4.32 (Including VAT at 20%)

Approx shipping weight 20g

1/4" Square Pulley key. Approx 39mm long


Unlisted parts page

Briggs&Stratton uk | Horizontal Crankshaft 2-6.5 HP Engine Spares | Horizontal Crankshaft 2-6.5 HP OHV |  Briggs and Startton Small Vanguard Horizontal Engine Spare Parts

©copyright 2005 G.Campbell. All rights reserved
(see terms and conditions)

spacer image
