Intek, Series 7 and Series 8 Twin Cylinder Vertical Crankshaft Engine Spare Parts

Briggs&Stratton uk | Twin Cyl. Vertical Crankshaft Engine Spare Parts |  Intek, Series 7 and Series 8 Twin Cylinder Vertical Crankshaft Engine Spare Parts

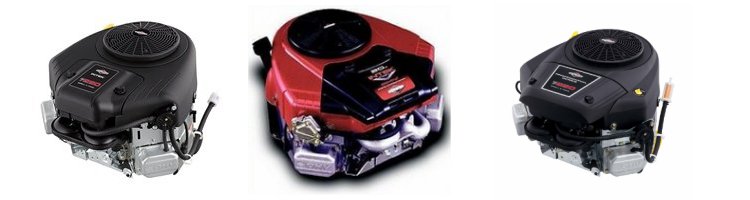

Briggs and Stratton Intek Twin Series 7 and 8 Vertical Engine Spare Parts Click Engine Image for more Information about this Engine Group

This series of engines are usually to be found on ride-on lawnmowers and garden tractors but can
also be used on other high spec applications.

They have the two cylinders arranged in a "V" orientation at approx 45 degrees from each other.
The spark plugs are fitted to the side of each rocker cover.

The air filter is either a flat cartridge that resembles a handbag or a round cylindrical cartridge
Both can be found at the front of the engine under a plastic cover.

Under the air filter is a double intake manifold forming a rounded "W"

These engine are usually labelled as "Intek Twin" with a HP rating, "Series 7" or "Series 8". The series 7 and 8 usually
have a 4 digit number starting with the series number e.g. "8240", "8250"
The Model, Type and Code numbers are stamped into one of the rocker cover sides
The Model begins with either 40 or 44

992425 Ride on Mower Cover


Quantity:

992425 Ride on Mower Cover


Price: 27.48 (Including VAT at 20%)

Approx shipping weight 1.5kg

Ride on mower/garden tractor cover
Protects against most weather conditions.
Width 100cm
Length 264cm
Height 130cm


273521 Briggs and Stratton IntekTwin Cylinder OHV Repair Manual


Quantity:

273521 Briggs and Stratton IntekTwin Cylinder OHV Repair Manual


Price: 18.99

Approx shipping weight 280g

Repair manual for Intek V-Twin overhead valve engines
Covers everything you need to know


499486S Air Filter Cartridge


Quantity:

499486S Air Filter Cartridge


Price: 12.84 (Including VAT at 20%)

Approx shipping weight 175g

Suitcase type air filter cartridge for Intek twin cylinder engines
Paper element approx 17cm x 9.5cm


273638S Pre filter


Quantity:

273638S Pre filter


Price: 8.64 (Including VAT at 20%)

Approx shipping weight 15g

Pre fiter for Intek twin cylinder engines. Fitted with 499486 filter cartridge

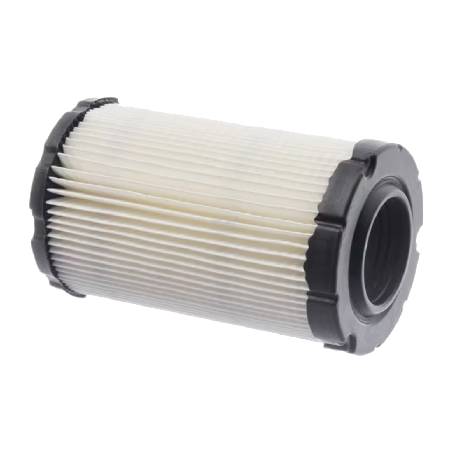

594201 (was591334 and 796031) Filter


Quantity:

594201 (was591334 and 796031) Filter


Price: 18.54 (Including VAT at 20%)

Approx shipping weight 200g

Cylindrical air filter for selected Intek Twin engines
Approx 8cm diameter x 12cm long


798897 Air Filter


Quantity:

798897 Air Filter


Price: 44.22 (Including VAT at 20%)

Approx shipping weight 300g

Air filter cartridge.
Approx 12cm long x 10cm diameter


593217 Pre Filter


Quantity:

593217 Pre Filter


Price: 5.40 (Including VAT at 20%)

Approx shipping weight 10g

Pre filter for 798897 Air filter


792105 Air Filter


Quantity:

792105 Air Filter


Price: 32.64 (Including VAT at 20%)

Approx shipping weight 220g

Air filter. Includes pre-cleaner


Spark Plug 992304


Quantity:

Spark Plug 992304


Price: 4.39 (Including VAT at 20%)

Approx shipping weight 50g

RC12YC Spark plug for all OHV engines other than the Vanguard Twin engines listed for 992306 below


992355 (was 6095E) Spark Plug Wrench


Quantity:

992355 (was 6095E) Spark Plug Wrench


Price: 6.00 (Including VAT at 20%)

Approx shipping weight 120g

16mm/19mm Spark plug box wrench for 992304 & 992306 spark plugs


Oil Filter 492932S


Quantity:

Oil Filter 492932S


Price: 11.52 (Including VAT at 20%)

Approx shipping weight 300g

Briggs and Stratton spares Oil filter for many pressure lubricated engines
Approx 6cm tall x 7.5cm diameter(at base)


Extended Life Oil Filter 696854


Quantity:

Extended Life Oil Filter 696854


Price: 19.08 (Including VAT at 20%)

Approx shipping weight 300g

Briggs and Stratton spares Oil filter for many pressure lubricated engines
Approx 6cm tall x 7.5cm diameter(at base)
Higher spec. Extended Life Series version of 492932.
Recommended as a replacement for engines subject to higher than normal use or demanding conditions


Oil Filter 491056


Quantity:

Oil Filter 491056


Price: 12.42 (Including VAT at 20%)

Approx shipping weight 310g

Oil filter for pressure lubricated engines
Approx 8.5cm tall


594200 (was 796530)/796532 Oil Drain Extension


Quantity:

594200 (was 796530)/796532 Oil Drain Extension


Price: 20.16 (Including VAT at 20%)

Approx shipping weight 140g

Extended oil drain pipe kit
Allows easier oil draining away from bodywork etc.
Includes 796530 drain pipe and 796532 Connector
Pipe can be clipped up out of the way when not in use
Can be retro fitted to any engine with 3/8" Pipe thread (approx 17mm thread outside diameter)


5401K Oil Drain Adaptor Kit


Quantity:

5401K Oil Drain Adaptor Kit


Price: 12.60 (Including VAT at 20%)

Approx shipping weight 70g

Oil drain adaptor and extension tube.
Quick drain sump plug valve and 20cm extension tube.
Fits most larger engines. (Sump plug thread approx 17mm outside diameter)


Fuel Filter 691035


Quantity:

Fuel Filter 691035


Price: 7.50 (Including VAT at 20%)

Approx shipping weight 15g

Paper type in line fuel filter fitted in many pumped fuel systems
40 microns


845125 (was 695666) Fuel Filter


Quantity:

845125 (was 695666) Fuel Filter


Price: 6.30 (Including VAT at 20%)

Approx shipping weight 30g

In line fuel filter.
Approx 58mm body length x 28mm body diameter


Fuel Filter 394358S


Quantity:

Fuel Filter 394358S


Price: 4.20 (Including VAT at 20%)

Approx shipping weight 10g

White in line fuel filter for pumped or higher pressure gravity fuel systems


Fuel Filter 298090S


Quantity:

Fuel Filter 298090S


Price: 4.20 (Including VAT at 20%)

Approx shipping weight 10g

Red in line fuel filter for gravity fed fuel systems


Briggs and Stratton Fuel Tube 395051R


Quantity:

Briggs and Stratton Fuel Tube 395051R


Price: 3.66 (Including VAT at 20%)

Approx shipping weight 20g per 20cm

Fuel tube for most applications

Sold in units of 20cm. Multiple purchases will be supplied in one total length
Use with 710075 clamps.(sold seperately)


Fuel Tube clamp 710075


Quantity:

Fuel Tube clamp 710075


Price: 2.88 (Including VAT at 20%)

Approx shipping weight 10g

Plated fuel tube hose clamp. Fits 11mm O/D fuel tube 395051


Fuel Tube Clamp - Black 691038


Quantity:

Fuel Tube Clamp - Black 691038


Price: 2.82 (Including VAT at 20%)

Approx shipping weight 10g

Black fuel tube clamp. Fits 12mm O/D fuel hose
(Slightly smaller than 95162)


Fuel Tube Clamp - Green 791850


Quantity:

Fuel Tube Clamp - Green 791850


Price: 2.82 (Including VAT at 20%)

Approx shipping weight 10g

Green fuel tube clamp. Fits fuel tube over 12mm O/D
(Slightly larger than 691038)


Fuel Tap 698183


Quantity:

Fuel Tap 698183


Price: 6.12 (Including VAT at 20%)

Approx shipping weight 15g

In line fuel shut off valve supplied with 2 x 95162 tube clamp


Fuel Filter 394358S


Quantity:

Fuel Filter 394358S


Price: 4.20 (Including VAT at 20%)

Approx shipping weight 10g

White in line fuel filter for pumped or higher pressure gravity fuel systems


Fuel Filter 691035


Quantity:

Fuel Filter 691035


Price: 7.50 (Including VAT at 20%)

Approx shipping weight 15g

Paper type in line fuel filter fitted in many pumped fuel systems


808656 Fuel Pump


Quantity:

808656 Fuel Pump


Price: 35.52 (Including VAT at 20%)

Approx shipping weight 100g

808656 Plastic fuel pump. Approx 50mm diameter x 25mm. 3 connectors


Briggs and Stratton Engine Speed Tachometer 19200E


Quantity:

Briggs and Stratton Engine Speed Tachometer 19200E


Price: 17.57 (Including VAT at 20%)

Approx shipping weight 40g

RPM tachometer to accurately set engine speed
Easy to use and compact. Complete with instructions and wallet
Suits any engine


798921 Governor Spring


Quantity:

798921 Governor Spring


Price: 5.94 (Including VAT at 20%)

Approx shipping weight 5g

Governor spring for Intek, Series 7 and Series 8 Twin cylinder engines
Approx 55mm long x 11mm diameter


691019 Idle Spring


Quantity:

691019 Idle Spring


Price: 7.14 (Including VAT at 20%)

Approx shipping weight 5g

Idle governor spring for Intek, Series 7 and Series 8 twin cylinder engines
Approx 45mm long x 7mm diameter


698781 Carburetor Float Seal


Quantity:

698781 Carburetor Float Seal


Price: 12.96 (Including VAT at 20%)

Approx shipping weight 5g

Intek carburetor float bowl seal for engines with Nikki carb


695410 Washer


Quantity:

695410 Washer


Price: 4.74 (Including VAT at 20%)

Approx shipping weight 5g

Sealing washer, Nikki carburettor. Seals bolt or solenoid fitted to bottom of bowl.
Approx 8mm I/D x 12mm O/D


698537 Needle


Quantity:

698537 Needle


Price: 18.00 (Including VAT at 20%)

Approx shipping weight 5g

Plastic needle valve for Intek, Series 7 and Series 8 Twin engines

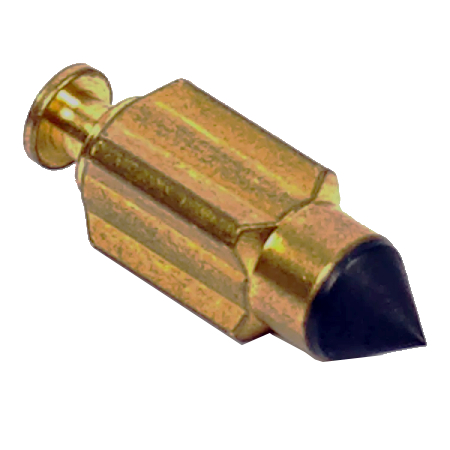

797410 Needle Valve


Quantity:

797410 Needle Valve


Price: 9.66 (Including VAT at 20%)

Approx shipping weight 5g

Brass inlet needle valve 15.87mm long with rubber tip


690994 Seal


Quantity:

690994 Seal


Price: 5.34 (Including VAT at 20%)

Approx shipping weight 5g

Carburettor bowl 'O' Ring Seal for Intek, Series 7 and Series 8 Twin engines with twin choke carburettor.
Approx 55mm diameter


690997 Washer


Quantity:

690997 Washer


Price: 4.44 (Including VAT at 20%)

Approx shipping weight 5g

Washer, sealing. For Intek twin cylinder engines with twin choke carburettor.


691001 Gasket


Quantity:

691001 Gasket


Price: 4.56 (Including VAT at 20%)

Approx shipping weight 10g

Air cleaner gasket for twin choke carburettor fitted to Intek, Series 7 and Series 8 Twin cylinder engines

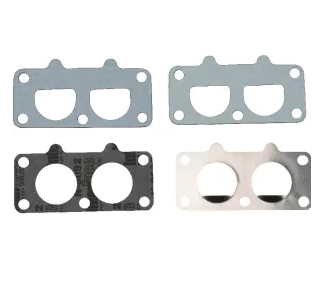

795123 (was 791677) Intake Gasket


Quantity:

795123 (was 791677) Intake Gasket


Price: 6.18 (Including VAT at 20%)

Approx shipping weight 10g

Set of twin choke intake gaskets for Intek, Series 7 and Series 8 twin cylinder engines
Includes metal plate


19368 Ignition Spark Tester


Quantity:

19368 Ignition Spark Tester


Price: 16.37 (Including VAT at 20%)

Approx shipping weight 90g

Ignition spark tester
Tests the ignition system for efficiency
For all engines

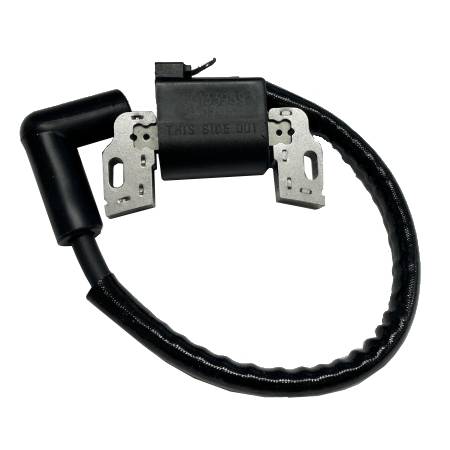

592846 (was 799651) Ignition Armature


Quantity:

592846 (was 799651) Ignition Armature


Price: 32.64 (Including VAT at 20%)

Approx shipping weight 400g

Ignition armature for Intek Twin engines


66538S/493880S Terminal & Elbow


Quantity:

66538S/493880S Terminal & Elbow


Price: 5.46 (Including VAT at 20%)

Approx shipping weight 10g

Spark plug terminal (493880S) and rubber elbow (66538S


691656 Starter Solenoid


Quantity:

691656 Starter Solenoid


Price: 18.18 (Including VAT at 20%)

Approx shipping weight 200g

691656 Starter Solinoid, single poll
Please note - starter solenoids are generally originally provided by the equipment manufacturer not Briggs and Stratton
This is a fairly universal soleniod that fits most applications however, if you wish to replace the original exactly, a replacement would need to be obtained through the equipment (mower etc.) manufacturer


692318 Ignition Switch


Quantity:

692318 Ignition Switch


Price: 21.66 (Including VAT at 20%)

Approx shipping weight 120g

Indak ignition key switch
Please check wiring details pop-up below as some equipment manufacturers use similar looking switches with differing pin positions


691959 Ignition Key Set


Quantity:

691959 Ignition Key Set


Price: 8.10 (Including VAT at 20%)

Approx shipping weight 10g

Indak Ignition key set. Contains two keys
Flat profile. (see pop up link below for shape) Fits most electric start machines


1714054SM Delta Ignition Key


Quantity:

1714054SM Delta Ignition Key


Price: 3.66 (Including VAT at 20%)

Approx shipping weight 10g

Ignition Key. Delta
Used by a number of ride on mower manufacturers. Including some models from, John Deere, Rally, Champion, Craftsman, AYP and others


497595 Starter Motor


Quantity:

497595 Starter Motor


Price: 108.84 (Including VAT at 20%)

Approx shipping weight 2.5kg

497595 Starter motor
With 16 tooth plastic pinion gear. 3 5/8" Housing


795121 (was 499521) Starter motor


Quantity:

795121 (was 499521) Starter motor


Price: 138.12 (Including VAT at 20%)

Approx shipping weight 2.75kg

Starter motor
Has 16 tooth plastic drive gear and 4 9/16" housing length

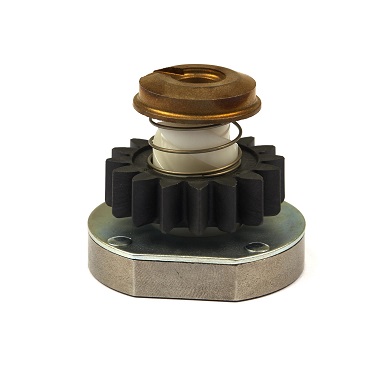

Starter Drive 696541


Quantity:

Starter Drive 696541


Price: 25.80 (Including VAT at 20%)

Approx shipping weight 180g

Electric starter motor drive kit for most later starter motors
Plastic drive gear and "c" clip type retainer


Starter Gear 695708


Quantity:

Starter Gear 695708


Price: 6.84 (Including VAT at 20%)

Approx shipping weight 20g

16 tooth plastic starter gear for most starter motors


Starter 'C' Clip 691265


Quantity:

Starter 'C' Clip 691265


Price: 3.48 (Including VAT at 20%)

Approx shipping weight 5g

'C' clip retainer for later starter motors


691293 Brush Holder


Quantity:

691293 Brush Holder


Price: 23.70 (Including VAT at 20%)

Approx shipping weight 200g

Starter motor brush holder. Includes brushes.
For motor with metal baseplate bolted onto the retainer.


691286 Metal Plate


Quantity:

691286 Metal Plate


Price: 15.90 (Including VAT at 20%)

Approx shipping weight 60g

Starter motor base plate
Includes bearing


Voltage Regulator 794360 (was 691188)


Quantity:

Voltage Regulator 794360 (was 691188)


Price: 42.42 (Including VAT at 20%)

Approx shipping weight 80g

12 Volt regulator and rectifier for many larger electric start engines
Approx 4cm square. Yellow lead with round connector, Red lead with round connector


845907 (797375) Voltage Regulator


Quantity:

845907 (797375) Voltage Regulator


Price: 43.44 (Including VAT at 20%)

Approx shipping weight 170g

12 Volt regulator and rectifier for many larger electric start engines
Approx 5.5cm x 8cm. 2 Yellow leads with rectangular connector, Red lead with round connector

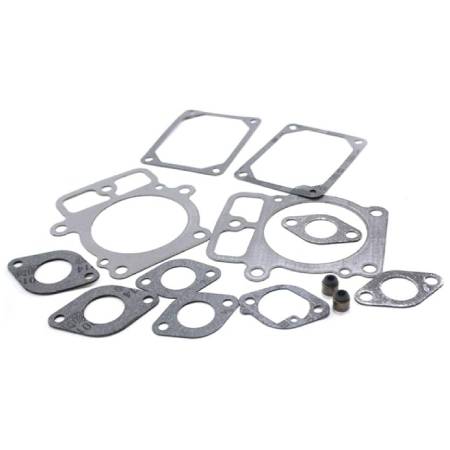

699822 Gasket Set, Head


Quantity:

699822 Gasket Set, Head


Price: 36.60 (Including VAT at 20%)

Approx shipping weight 90g

Head and valve gasket set for Intek twin cylinder engines.
For all head and valve work. Includes gaskets for both cylinders.


690971 Gasket


Quantity:

690971 Gasket


Price: 4.56 (Including VAT at 20%)

Approx shipping weight 10g

Rocker cover gasket for Intek, Series 7 and Series 8 twin cylinder engines
Approx 113mm x 87mm


693997 Head Gasket


Quantity:

693997 Head Gasket


Price: 14.40 (Including VAT at 20%)

Approx shipping weight 40g

Cylinder head gasket for Intek, Series 7 and Series 8 twin cylinder engines.


690970 Exhaust Gasket


Quantity:

690970 Exhaust Gasket


Price: 4.80 (Including VAT at 20%)

Approx shipping weight 10g

Exhaust gasket for Intek, Series 7 and Series 8 twin cylinder engines
Bolt hole centres approx 50mm apart


690949 Intake Gasket


Quantity:

690949 Intake Gasket


Price: 5.40 (Including VAT at 20%)

Approx shipping weight 10g

Intake gasket - manifold to cylinder head.
For Intek, Series 7 and Series 8 Twin cylinder engines
Bolt hole centres approx 64mm appart.


690968 Seal


Quantity:

690968 Seal


Price: 6.96 (Including VAT at 20%)

Approx shipping weight 10g

Intake valve seal for Intek Twin Cylinder.
(only the intake valve has a seal)


594195 Crankcase gasket


Quantity:

594195 Crankcase gasket


Price: 20.04 (Including VAT at 20%)

Approx shipping weight 130g

Crankcase gasket for Intek, series 7 and series 8 twin cylinder engines.
Includes replacement bolts


795387 Seal


Quantity:

795387 Seal


Price: 6.30 (Including VAT at 20%)

Approx shipping weight 10g

Lower oil seal for Intek twin cylinder engines
Approx 54mm O/D, 39mm I/D


391086S Seal-Oil


Quantity:

391086S Seal-Oil


Price: 3.84 (Including VAT at 20%)

Approx shipping weight 10g

Upper oil seal for Intek Twin cylinder engines.
Approx 42mm O/D x 28mm I/D


19203 Puller - Large


Quantity:

19203 Puller - Large


Price: 10.97 (Including VAT at 20%)

Approx shipping weight 230g

Flywheel puller for larger engines
Distance between outer hole centres approx 72mm
Includes long and short bolt sets
If your engine has a square drive starter clutch holding down the flywheel, you will also require 690662 nut (see below)


Briggs & Stratton Spare Parts Flywheel key 222698S


Quantity:

Briggs & Stratton Spare Parts Flywheel key 222698S


Price: 2.52 (Including VAT at 20%)

Approx shipping weight 5g

Aluminium flywheel key to fit most engines
Approx. 14mm long x 3mm x 4mm


691483 1/4


Quantity:

691483 1/4" Key


Price: 4.32 (Including VAT at 20%)

Approx shipping weight 20g

1/4" Square Pulley key. Approx 39mm long


Unlisted parts page

Briggs&Stratton uk | Twin Cyl. Vertical Crankshaft Engine Spare Parts |  Intek, Series 7 and Series 8 Twin Cylinder Vertical Crankshaft Engine Spare Parts

©copyright 2005 G.Campbell. All rights reserved
(see terms and conditions)

spacer image
