These engines are mostly fitted to walk behind rotart lawnmowers and have the revolutionary DOV (Direct Overhead Valve) technology.Some have a push primer for cold starting, some have the "Ready Start" automatic choke (no primer)If the parts you need are not listed, please use the link button at the bottom of this page.
Items with associated special tools. Click Red Spanner link on the left of the page for tools page
OUT OF STOCK
Walk behind mower cover.Protects against most weather conditions.Fits walk behind mowers up to 22"Width 55cmLength 142cmHeight to handlebar 119cm
DOV repair manual
Click for more Information
Service kit for DOV enginesIncludes Spark Plug, air filter, pre filter 0.6 litres oil and instructions
Oil drain pump kit. Includes vacuum pump, oil container, tubing etc.Allows draining oil without tipping machine.
RC12YC Spark plug for all OHV enginesRe-Set Gap to .020" for DOV engines
16mm/19mm Spark plug box wrench for 992304 spark plug
Briggs and stratton Start Care oil change kit. Includes 2 x 0.6 litres of oil (one bottle for an oil change and the other for through season top ups), 100ml bottle of fuel fit additive and deep sided oil drain tray.
Briggs and Stratton Petrol additive for all 4 stroke and 2 stroke petrol enginesPrevents fuel deterioration during periods of non-use and generally aids engine efficiencyEssential for correct winter storage of lawnmowers etc.100 ml, treats 10 litres of fuel.
Throttle control and cable to fit many applications1.35m long. End can be bent to suitNegative action(Control pushed to fast, shortens inner wire)
Throttle control and cable to fit many applications1.35m long. End can be bent to suitPositive action(Control pushed to fast, lengthens inner wire)
Clamp and screw, throttle cable
Air filter cartridge. DOV enginesPear shape approx 12cm long x 5.5cm high
Pre filter foam. Fits 792038 DOV cartridge
Fuel cap for tank with male thread.
Fuel tube for most applicationsSold in units of 20cm. Multiple purchases will be supplied in one total lengthUse with 710075 clamps.(sold seperately)
Green fuel tube clamp. Fits fuel tube over 12mm O/D(Slightly larger than 691038)
In line fuel shut off valve supplied with 2 x 95162 tube clamp
Air filter gasket

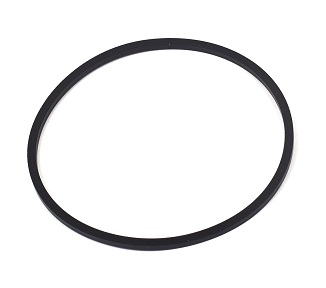

Float bowl rubber gasketApprox 49mm outside diameter

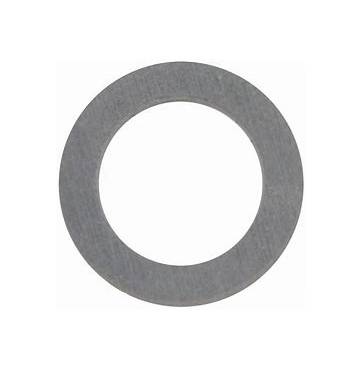

Float bowl bolt washer (Nikki carburettor)Aluminium approx 17mm O/D, 11mm I/D
Plastic needle valve for DOV engines with Nikki carburettor
Start primer for Quantum and Intek engines with prime starting(Also replaces older black one)
Governor spring. DOV engines
RPM tachometer to accurately set engine speedEasy to use and compact. Complete with instructions and walletSuits any engine
Complete starter rewind for DOV enginesPulleyand springetc not available seperately
Recoil rope for DOV engines.Approx 3.5mm diameter x 2.2m long. Dark grey
Starter rop stop. Crimped to rope to prevent rope retracting fully into rewind when folding handles.
Rope guide. Includes bolt and nut for fitting to handle
Starter grip for machines with extended rope and grip retained up the handles
Easy grip starter handleAllows full hand engagement for more solid handhold
Screw 10-32 thread x 3/8" long (0.19" thread diapmeter - approx 4.8mm)Used in many places where a small short screw is required such as pressed steel muffler guards, covers and shields etc.
Instart battery charger

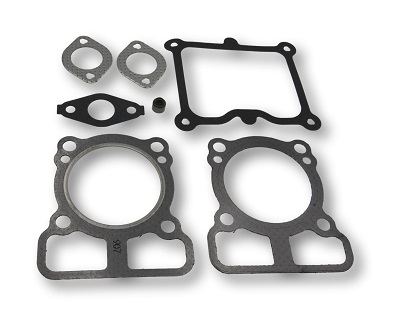

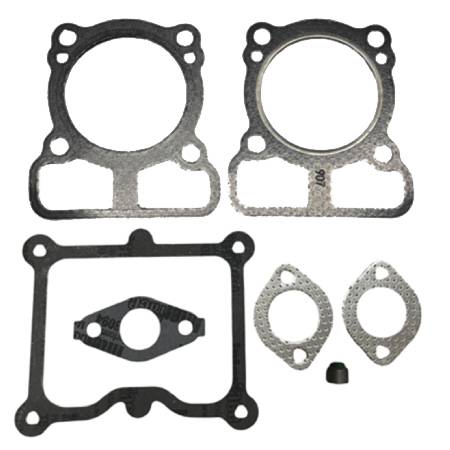

DOV Head and valve gasket setIncludes Head, Rocker cover, Intake and Exhaust gaskets and intake valve seal.

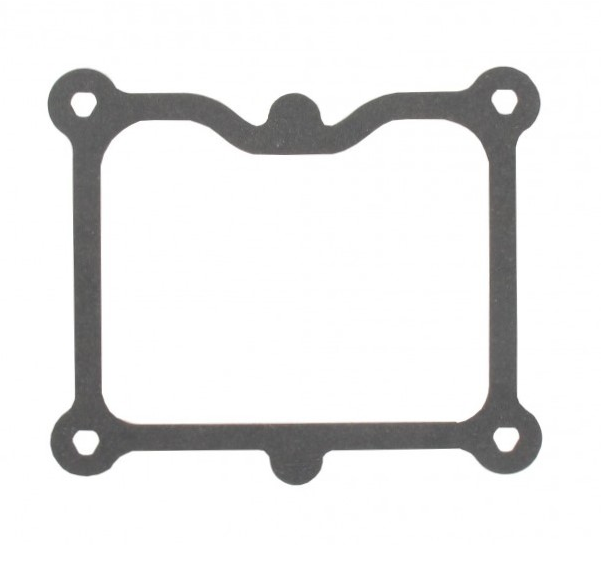

Rocker cover gasket for DOV 700 & 750 engines

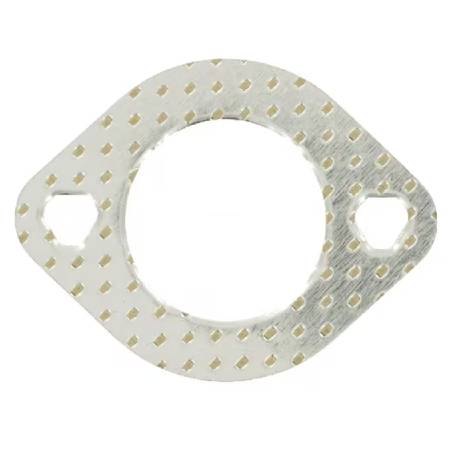

Exhaust gasketBolt hole centres approx 40mm apart

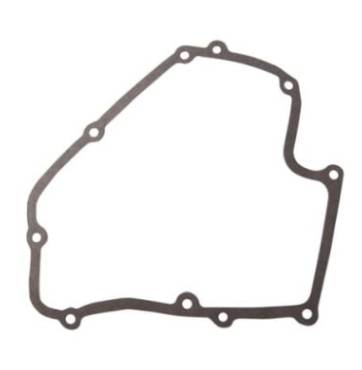

Crankcase gasket DOV engine
399781S Lower oil seal, (sump side) DOV engines
Upper oil seal (flywheel side)
Ignition spark testerTests the ignition system for efficiencyFor all engines
Spark plug terminal (493880S) and rubber elbow (66538S) to fit all side valve HT leads

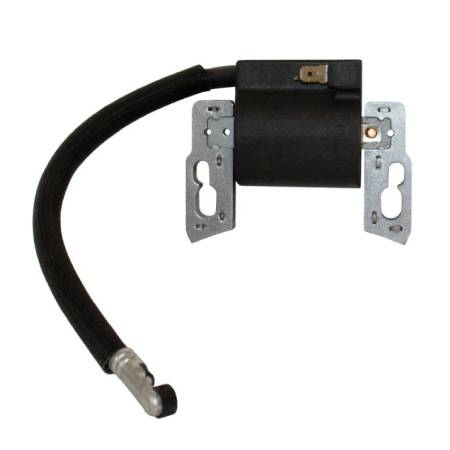

Ingition armature (coil) for DOV engines

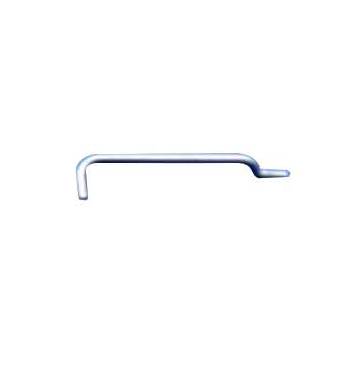

Stop wire. Approx 42cm long
Indak Ignition key set. Contains two keysFlat profile. (see pop up link below for shape) Fits most electric start machines
Click here for profile shape pop-up
Flywheel puller for small enginesDistance between outer hole centres approx 40mmIf your engine has a square drive starter clutch holding down the flywheel, you will also require 690662 nut (see below)
Brake spring. For brake with hinged pad.Approx 50mm long x 12mm diameter
Flywheel key to fit most enginesApprox. 14mm long x 3mm x 4mm
!!<>!!Associated special tools
Half moon woodruff key to fit crankshaft extension of most small Briggs and Stratton engines applicationsNo 505 - 5/32" x 5/8" (approx 4mm thick x 15mm long)
#605 Woodruff Key 3/16" x 5/8" used on 25mm diameter crankshaft engines
Key, crankshaft pulley 3/16" (Approx 4.75mm) square section
1/4" Square Pulley key. Approx 39mm long
700 Series DOV 6HP vertical crankshaft engine7/8" diameter crankshaft extending 80mm from mounting face1008020148H8YY7001Click for engine line drawings pdf
700 Series DOV 6HP vertical crankshaft engine7/8" diameter crankshaft extending 80mm from mounting faceElectric start with 12v charge output1008070150H8YY7001Click for engine line drawings pdf
