Briggs&Stratton uk | Briggs and Stratton Vertical 2-7 HP Engine Parts | Briggs and Stratton Vertical 2-7HP Overhead Valve OHV Engine Parts | Briggs and Stratton Professional 800E 850E 875E and 950E Engine Spare Parts

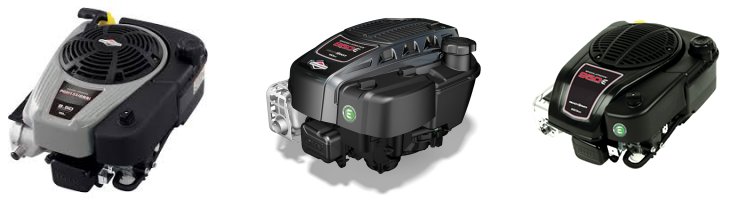

This series of engines are usually to be found on large walk behind rotary lawnmowers and compact ride-on mowersThey are Overhead Valve (OHV) with the spark plug located fairly deep to the side of the rocker coverThe exhaust is mounted on the right when veiwed from behind the engine with the carburettor and air filter on the leftThe plastic fuel tank wraps around the rear left hand corner of the engine with the fuel cap just behind the air filter coverAbove the carburettor is a plastic cannister which holds the pear shaped air filter cartridgeThe oil dipstick is located in the rear right hand corner (viewed from behind the engine)The Model, Type and Code numbers are stamped into the engine's pressed steel rocker cover or on a flat steel plate over the exhaust.The Model number will begin either 11,12 or 14.
Walk behind mower cover.Protects against most weather conditions.Fits walk behind mowers up to 22"Width 55cmLength 142cmHeight to handlebar 119cm
Repair Manual for Proffessional, 800E, 825E, 850E and 875E series vertical crankshaft engines(Exhaust on the right when viewed from behind the engine)Covers all aspects of service, repair and overhaul of this engine series.
Click for more Information
RC12YC Spark plug for all OHV engines
16mm/19mm Spark plug box wrench for 992304 spark plug
Briggs and stratton Start Care oil change kit. Includes 2 x 0.6 litres of oil (one bottle for an oil change and the other for through season top ups), 100ml bottle of fuel fit additive and deep sided oil drain tray.
Briggs and Stratton Petrol additive for all 4 stroke and 2 stroke petrol enginesPrevents fuel deterioration during periods of non-use and generally aids engine efficiencyEssential for correct winter storage of lawnmowers etc.100 ml, treats 10 litres of fuel.
Throttle control and cable to fit many applications1.35m long. End can be bent to suitNegative action(Control pushed to fast, shortens inner wire)
Throttle control and cable to fit many applications1.35m long. End can be bent to suitPositive action(Control pushed to fast, lengthens inner wire)
Clamp and screw, throttle cable
Service kit for Professional, 800E, 825E, 850E, 875EX and 950E series engines.Includes Spark plug, 795066 Air filter, 796254 Pre-filter, 0.6 litres oil and instructions
Oil drain pump kit. Includes vacuum pump, oil container, tubing etc.Allows draining oil without tipping machine.
Air filter cartridge. For Professional, 800E, 825E, 850E, 875EX and 950E series engineApprox 14cm long x 5.5cm high
Pre filter for 795066 cartridge
Oil filter for pressure fed Intek Edge, 800E, 850EX, 875EX engines(exhaust on right of engine when viewed from behind)Approx 5cm diameter x 6cm high
Oil dipstick and capApprox 20cm overall length including capIncludes seal
Oil dipstick "O" ring seal for Quantum engines whose model number begins 12
Fuel cap with female thread
Fuel cap. Black. Approx 6cm overall diameter with 30cm male bayonet fitting and retaining tag
Red in line fuel filter for gravity fed fuel systems
Fuel tube for most applicationsSold in units of 20cm. Multiple purchases will be supplied in one total lengthUse with 710075 clamps.(sold seperately)
Plated fuel tube hose clamp Fits 11mm O/D fuel tube 395051
In line fuel shut off valve supplied with 2 x 95162 tube clamp
Air filter gasket for selected Intek enginesNote different right hand edge profile compared with 692667 above
Intake gasket for Intek Edge, 800E, 850E, 850EX & 875EX engines(exhaust on right of engine when viewed from behind)
Intake O Ring seal for Intek Edge, 800E, 850E, 850EX & 875EX engines(exhaust on right of engine when viewed from behind)Approx 28mm outside diameter
Carburettor overhaul kit for Professional, 800E, 850E, 850EX, 875EX and 950E engines(exhaust on rright of engine when viewed from behind)prior to date code 11063000 (has different inlet needle seat and bowl seal (3mm deep) compared to 592172 below)
Carburettor bowl seal. Approx 50mm diameter x 3mm deep
Carburettor overhaul kit for Professional, 800E, 850E, 850EX, 875EX and 950E engines(exhaust on right of engine when viewed from behind)after to date code 11063000 (has different inlet needle seat to 796612 above)
Carburettor bowl seal for Professional, 800E, 850E, 850EX, 875EX and 950E engines(exhaust on right of engine when viewed from behind)Approx 50mm diameter x 1.5mm deep
Carburettor bowl bolt washer for Professional, 800E, 850E, 850EX, 875EX and 950E engines(exhaust on right of engine when viewed from behind)I/D approx 10mm O/D approx 15mm
Carburettorinlet needle valve for Professional, 800E, 850E, 850EX, 875EX and 950E engines(exhaust on right of engine when viewed from behind)
Governor spring for Professional, 800E, 850E, 850EX, 875EX and 950E engines(exhaust on right of engine when viewed from behind)
RPM tachometer to accurately set engine speedEasy to use and compact. Complete with instructions and walletSuits any engine
Ready start thermostat. Includedes gaskets
Choke link. From thermostat to carb

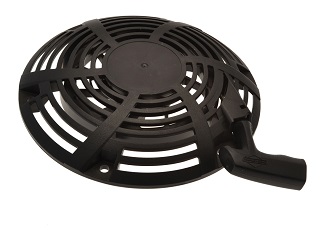

Complete pull starter rewind assembly for Professional, 800E, 850E, 850EX, 875EX and 950 engines (exhaust on right of engine when viewed from behind)
Recoil starter rope.Approx 3.5mm diameter x 2.2m long. Dark grey
Starter rop stop. Crimped to rope to prevent rope retracting fully into rewind when folding handles.
Rope guide. Includes bolt and nut for fitting to handle
Starter grip for machines with extended rope and grip retained up the handles
Easy grip starter handleAllows full hand engagement for more solid handhold
Instart battery.PLEASE NOTE - Due to airmail restrictions, we can only supply these batteries within mainland UK.
Instart battery charger

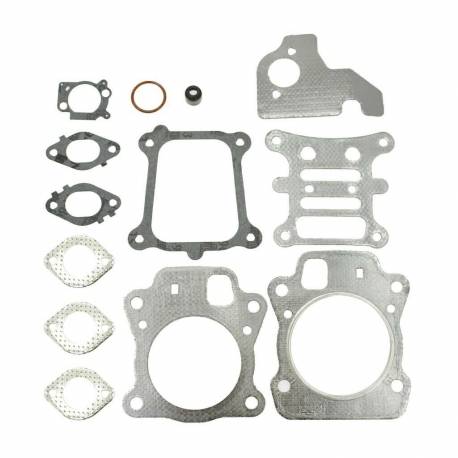

Head gasket set for Intek Edge, 800E, 850E, 850EX, 875EX and 950E engines(exhaust on right of engine when viewed from behind)
Intake valve stem seal
Rocker cover gasket for 800, 825, 850, 875 and 950 engines
Head gasket for 800E, 825E, 850E and 875E Engines
399781S Lower oil seal, (sump side)
Upper oil seal (flywheel side)Approx 32mm outside diameter x 20mm inside diameter
692232 Crankcase gasket
Exhaust gasketBolt hole centres approx 40mm apart
Exhaust muffler for Intek Pro, 800E, 850E and 875E Engines. Includes gasket, bolts and bolt lock tab
Exhaust guard. For 798940 Muffler. Includes screws.
Screw 10-32 thread x 3/8" long (0.19" thread diapmeter - approx 4.8mm)Used in many places where a small short screw is required such as pressed steel muffler guards, covers and shields etc.

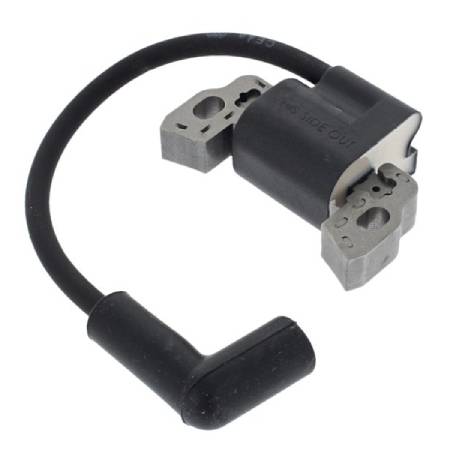

Ignition armature for Professional, 800E, 850E, 850EX, 875EX and 950 engines(exhaust on right of engine when viewed from behind)Mounting hole centres approx 59mm apart
Stop wire. Approx 42cm long
Spark plug terminal (493880S) and 90 degree rubber elbow (66538S)
Engine brake lockout link. Used to disable the brake where an engine is fitted to an application which does not use a mechanical emergency stop lever. NOT TO BE FITTED WHERE AN ENGINESTOP LEVER IS PRESENT.
Brake spring. For brake with hinged pad.Approx 50mm long x 12mm diameter
Indak ignition key switchPlease check wiring details pop-up below as some equipment manufacturers use similar looking switches with differing pin positions
Indak Ignition key set. Contains two keysFlat profile. (see pop up link below for shape) Fits most electric start machines
Click here for profile shape pop-up
Ignition Key. DeltaUsed by a number of ride on mower manufacturers. Including some models from, John Deere, Rally, Champion, Craftsman, AYP and others
Flywheel puller for small enginesDistance between outer hole centres approx 40mmIf your engine has a square drive starter clutch holding down the flywheel, you will also require 690662 nut (see below)
Flywheel puller and flywheel holder for Professional, 800E, 825E, 850E, 875EX and 950E series engines (not older intek)Holds flywheel stationary to allow removal and re-fitting of flywheel bolt and pulls flywheel off crankshaft.
Nut, crankshaft/flywheelRequired for puller use on engines which have a square drive rewind starter clutch
Flywheel key to fit most enginesApprox. 14mm long x 3mm x 4mm
Flywheel key. For 950E series engines
Half moon woodruff key to fit crankshaft extension of most small Briggs and Stratton engines applicationsNo 505 - 5/32" x 5/8" (approx 4mm thick x 15mm long)
#605 Woodruff Key 3/16" x 5/8" used on 25mm diameter crankshaft engines
Key, crankshaft pulley 3/16" (Approx 4.75mm) square section x 37mm long
1/4" Square Pulley key. Approx 39mm long
Engine mounting bolt. Self tap 3/8" x 1". Suitable for mounting engine onto steel or alluminium chassis up to 1/4" thickness.
