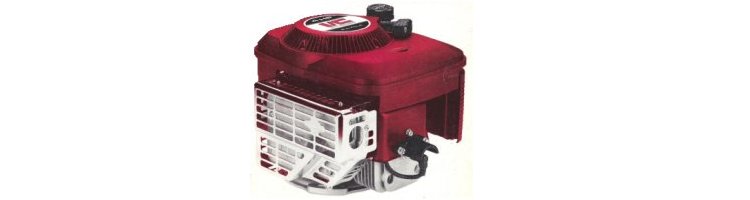

2 Stroke (Two Cycle) Briggs & Stratton Vertical Crankshaft Engines. Almost all Briggs and Stratton engines are 4 Stroke. This page covers parts for the 4HP vertical crankshaft engine made over a very short period around 1990. Unfortunately many of its partss are no longer available.If the parts you need are not listed, please use the link button at the bottom of this page.
Items with associated special tools. Click Red Spanner link on the left of the page for tools page
OUT OF STOCK
Walk behind mower cover.Protects against most weather conditions.Fits walk behind mowers up to 22"Width 55cmLength 142cmHeight to handlebar 119cm
Short reach spark plug for all Briggs and Stratton side valve engines
Click for more Information
19mm/21mm Spark plug box wrench for 992300 spark plug
Briggs and Stratton Petrol additive for all 4 stroke and 2 stroke petrol enginesPrevents fuel deterioration during periods of non-use and generally aids engine efficiencyEssential for correct winter storage of lawnmowers etc.100 ml, treats 10 litres of fuel.
Throttle control and cable to fit many applications1.35m long. End can be bent to suitNegative action(Control pushed to fast, shortens inner wire)
Paper air filter for 4HP 2 stroke engineApprox. 16cm x 11.5cm
Pre-filter for 4HP 2 Stroke engine. For use with 397795 filterCan be retro fitted to prolong filter life
Fuel cap for 4HP 2 Stroke engine.Please note, the original cap showing 50:1 fuel ratio is no longer available.
Red in line fuel filter for gravity fed fuel systems
Fuel tube for most applicationsSold in units of 20cm. Multiple purchases will be supplied in one total lengthUse with 710075 clamps.(sold seperately)
Plated fuel tube hose clamp Fits 11mm O/D fuel tube 395051
Black fuel tube clamp. Fits 12mm O/D fuel hose(Slightly smaller than 95162)
Green fuel tube clamp. Fits fuel tube over 12mm O/D(Slightly larger than 691038)
Fuel shut off valve. 90 degrees screw in.Replaces old number 399517
3.5mm diameter recoil rope for quantum engines.Approx 2.4m long whiteReplaces shorter rope 66734
Rubber recoil grip with plastic insert suits engines where grip returns to the engine
Screw 10-32 thread x 3/8" long (0.19" thread diapmeter - approx 4.8mm)Used in many places where a small short screw is required such as pressed steel muffler guards, covers and shields etc.
Electronic ignition armature magneto coil for 4HP 2 Stroke engine(fitted in lieu of 802574)Please note that there has been a design change to this unit. The new one may not resemble your original exactly but is correct and will fit the engine
Stop wire. Approx 42cm long
Spark plug terminal (493880S) and rubber elbow (66538S) to fit all side valve HT leads

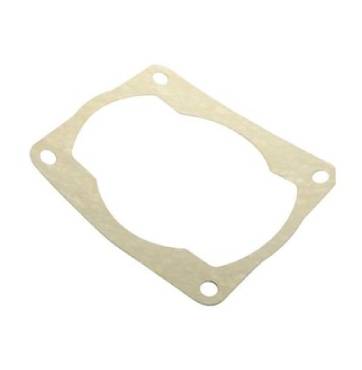

Cylinder gasket for 4HP vertical crankshaft 2 stroke engine

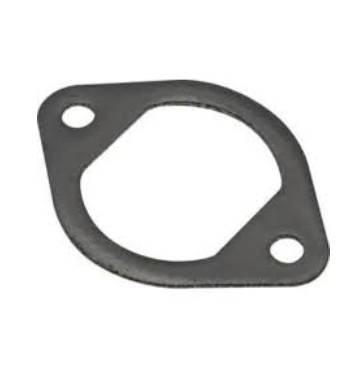

Exhaust gasket for 4HP vertical crankshaft 2 stroke engineBolt hole centres approx 50mm apart
Flywheel puller for small enginesDistance between outer hole centres approx 40mm
