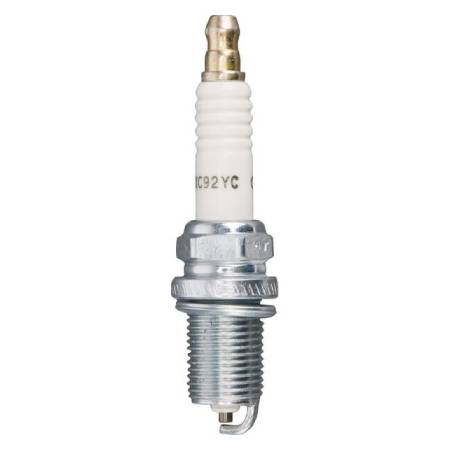

797434 Spark Plug - OHV (XC92YC)

Product Description

Genuine Briggs and Stratton part: 797434

Long reach Spark Plug commonly used across numerous models of Briggs OHV engines.

Manufatured by Champion, this is a conventional spark plug with nickel alloy electrodes, it features a copper core centre electrode that provides increased conductivity and heat control for good overall wear

Thread diameter: 14mm
Thread reach: 19mm
Hex size: 16mm
Tip configuration: Projected
Terminal type: Solid

Replaces: Champion XC12YC, NGK BCPR5ES, Briggs 792015


Engine series applications can include, (but may not be limited to), variants of:

450E Series OHV (Vertical), 550E Series OHV (Vertical), 550EX Series OHV (Vertical), 575EX Series OHV (Vertical), 575iSi Series OHV (Vertical), 625EX Series OHV (Vertical), 625EXi Series OHV (Vertical), 850 Professional Series OHV (Vertical), 850E Series OHV (Vertical), 850PXi I/C Series OHV (Vertical), 875 Professional Series OHV (Vertical), 875E Series OHV (Vertical), 875EXi Series OHV (Vertical), 18 HP Vanguard V-Twin OHV (Vertical), 21 HP Vanguard V-Twin OHV (Horizontal), 23 HP Vanguard V-Twin OHV (Horizontal), 31 HP Vanguard V-Twin OHV (Horizontal) LP, 35 HP Vanguard V-Twin OHV (Horizontal), 627cc Generator Spec Vanguard V-Twin OHV (Horizontal), 933cc Vanguard V-Twin OHV (Horizontal)


Used on selected type variants of models including:

08P602-0004-H5, 08P602-0005-H5, 08P602-0006-H5, 08P602-0007-H5, 08P602-0008-H5, 08P602-0009-H5, 08P602-0010-H5, 08P602-0011-H5, 08P602-0012-H5, 08P602-0014-H5, 08P602-0015-H5, 08P602-0016-H5, 08P602-0017-H5, 08P602-0019-H5, 08P602-0020-H5, 08P602-0021-H5, 08P602-0022-H5, 08P602-0023-H5, 08P602-0026-H5, 08P602-0028-H5, 08P602-0029-H5, 08P602-0030-H5, 08P602-0032-H5, 08P602-0033-H5, 08P602-0035-H5, 08P602-0036-H5, 08P602-0046-H5, 092J0B-0001-H1, 092J0B-0001-H5, 092J0B-0002-H1, 092J0B-0002-H5, 092J0B-0004-H1, 092J0B-0004-H5, 092J0B-0005-H1, 092J0B-0005-H5, 092J0B-0006-H1, 092J0B-0006-H5, 092J0B-0008-H1, 092J0B-0008-H5, 092J0B-0009-H1, 092J0B-0009-H5, 092J0B-0010-H1, 092J0B-0010-H5, 092J0B-0011-H5, 092J0B-0012-H1, 092J0B-0012-H5, 092J0B-0013-H5, 092J0B-0014-H5, 092J0B-0015-H5, 093J02-0005-H1, 093J02-0007-H1, 093J02-0007-H5, 093J02-0008-H1, 093J02-0014-H1, 093J02-0015-H1, 093J02-0016-H1, 093J02-0016-H5, 093J02-0017-H1, 093J02-0017-H5, 093J02-0018-H1, 093J02-0019-H1, 093J02-0019-H5, 093J02-0024-H1, 093J02-0026-H1, 093J02-0026-H5, 093J02-0033-H1, 093J02-0033-H5, 093J02-0034-H1, 093J02-0034-H5, 093J02-0036-H1, 093J02-0037-H1, 093J02-0038-H1, 093J02-0038-H5, 093J02-0039-H1, 093J02-0039-H5, 093J02-0040-H1, 093J02-0041-H1, 093J02-0043-H1, 093J02-0044-H1, 093J02-0046-H1, 093J02-0046-H5, 093J02-0047-H1, 093J02-0048-H1, 093J02-0049-H1, 093J02-0055-H1, 093J02-0055-H5, 093J02-0056-H1, 093J02-0058-H1, 093J02-0062-H1, 093J02-0064-H1, 093J02-0065-H1, 093J02-0066-H1, 093J02-0066-H5, 093J02-0067-H5, 093J02-0069-H1, 093J02-0069-H5, 093J02-0070-H1, 093J02-0070-H5, 093J02-0071-H1, 093J02-0071-H5, 093J02-0072-H1, 093J02-0073-H1, 093J02-0074-H1, 093J02-0074-H5, 093J02-0079-H1, 093J02-0079-H5, 093J02-0080-H1, 093J02-0080-H5, 093J02-0081-H1, 093J02-0083-H1, 093J02-0083-H5, 093J02-0084-H1, 093J02-0085-H1, 093J02-0085-H5, 093J02-0087-H1, 093J02-0088-H1, 093J02-0088-H5, 093J02-0095-H1, 093J02-0095-H5, 093J02-0096-H1, 093J02-0097-H1, 093J02-0099-H1, 093J02-0100-H1, 093J02-0105-H1, 093J02-0106-H1, 093J02-0110-H1, 093J02-0111-H1, 093J02-0111-H5, 093J02-0112-H1, 093J02-0112-H5, 093J02-0115-H1, 093J02-0118-H1, 093J02-0118-H5, 093J02-0120-H1, 093J02-0120-H5, 093J02-0122-H1, 093J02-0124-F1, 093J02-0130-H5, 093J02-0131-H5, 093J02-0141-H5, 093J0B-0140-F1, 093J0B-0157-H5, 093J0B-0158-H5, 093J0B-0159-H5, 09P702-0015-H1, 09P702-0161-H1, 09P702-0181-F1, 09P702-0193-H1, 09P702-0193-H5, 09P702-0205-F1, 09P702-0215-H1, 09P702-0216-H1, 09P702-0219-H1, 09P702-0220-H1, 09P70B-0261-H5, 09P70B-0262-H5, 09P70B-0263-H5, 09P70B-0264-H5, 09P70B-0266-H5, 09P70B-0267-H5, 09P70B-0268-H5, 09P70B-0270-H5, 09P70B-0271-H5, 09P70B-0272-H5, 09P70B-0273-H5, 09P70B-0276-H5, 09P70B-0284-H5, 09P802-0002-H5, 09P802-0003-H5, 09P802-0004-H5, 09P802-0006-H5, 09P802-0007-H5, 09P802-0008-H5, 09P802-0011-H5, 09P802-0013-H5, 09P802-0014-H5, 09P802-0016-H5, 09P802-0018-H5, 09P802-0020-H5, 09P802-0021-H5, 09P802-0022-H5, 09P802-0023-H5, 09P802-0024-H5, 09P902-0001-H5, 09P902-0003-H5, 09P902-0006-H5, 09P902-0007-H5, 09P902-0009-H5, 09P902-0010-H5, 09P902-0011-H5, 09P902-0012-H5, 09P902-0016-H5, 09P902-0017-H5, 09P902-0018-H5, 09P902-0019-H5, 09P902-0029-H5, 121P02-0003-F1, 121P02-0004-F1, 121P02-0005-F1, 123P02-0006-H1, 123P02-0006-H5, 123P02-0047-F1, 123P02-0062-H5, 123P02-0067-H5, 125P02-0001-H1, 125P02-0001-H5, 125P02-0053-F1, 125P02-0066-H5, 125P02-0071-H5, 125P05-0072-H5, 125P07-0006-H1, 125P07-0006-H5, 125P07-0007-H1, 125P07-0007-H5, 125P07-0039-H5, 125P07-0054-F1, 125P07-0055-F1, 125P0B-0084-H5, 359447-0119-E1, 359447-0120-E1, 359775-0005-E1, 384445-0112-E1, 389445-0150-E1, 389447-0123-E1, 389447-0127-E1, 389447-1215-E1, 389575-0003-E1, 389575-0006-E1, 389575-0117-E1, 543277-0004-E1, 543277-0112-E1, 543277-0117-E1, 613275-0002-E1, 613275-0003-E1, 613275-0006-E1, 613275-0118-B1, 613275-0118-E1, 613275-0119-E1, 613275-0159-B1, 613277-0001-E1, 613277-0004-E1, 613277-0008-E1, 613277-0009-E1, 613277-0010-E1, 613277-0011-E1, 613277-0113-E1, 613277-0114-E1, 613277-0120-E1, 613277-0160-B1, 613277-1113-B1, 613377-0001-J1, 613377-0102-J1, 614275-0002-G1, 614275-0111-G1, 614277-0001-G1, 61H275-0001-E1, 61H275-0006-E1, 61H275-0007-E1, 61H277-0010-E1, 61H277-0107-E1


PLEASE NOTE: Attempting to fit the incorrect part can have a dramatic affect on how your engine runs, it also risks causing damage to either the part, or the engine. If you're not sure of the exact part number for your engine, refer to the parts list specific to your engines Model, Type and Code numbers, or contact us for assistance.
