Product Description

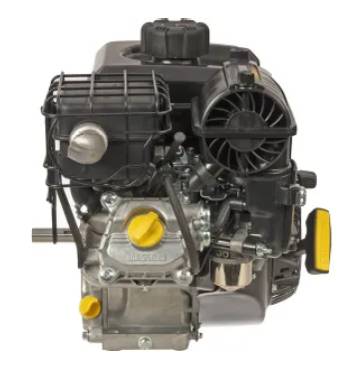

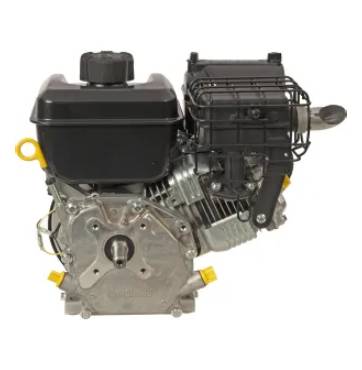

The Vanguard 200 OHV Engine (12V3320008F1DV7001) is a premium 6.5 HP horizontal-shaft petrol engine engineered for reliability, long service life, and professional-grade performance across demanding commercial applications. Built with a cast-iron cylinder sleeve, heavy-duty flywheel, and precision horizontal 19.05mm (3/4") crankshaft, it delivers consistent power output and exceptional durability. Below is a detailed breakdown of its key features and the real-world benefits they provide.
Key Features & Their Benefits
Cast-Iron Sleeved Cylinder
Feature: Heavy-duty cast-iron bore for long engine life.
Benefit: Superior wear resistance, ideal for high-hour commercial use and rental fleets.
6.5 HP Gross Power (4.8 kW @ 3600 rpm)
Feature: Strong, reliable output for a wide range of machinery.
Benefit: Handles demanding workloads with ease, ensuring consistent performance even under load.
TransportGuard™ Fuel & Ignition Shutoff System
Feature: Single-lever system shuts off fuel and ignition simultaneously.
Benefit: Prevents fuel?oil dilution during transport — a common cause of engine failure — reducing downtime and repair costs.
Heavy Flywheel
Feature: High-mass flywheel for smoother operation.
Benefit: Improved stability, reduced vibration, and more reliable starting in tough conditions.
Variable Speed Throttle
Feature: Adjustable throttle control.
Benefit: Allows precise speed management for different applications, improving efficiency and fuel economy.
Super Lo-Tone™ Muffler
Feature: Integrated low-noise exhaust system.
Benefit: Quieter operation for user comfort and compliance with noise-sensitive environments.
Manual Choke & Recoil Start
Feature: Simple, reliable starting system.
Benefit: Easy cold-start performance without the complexity of electric start components.
Oil Alert System
Feature: Automatic low-oil shutdown.
Benefit: Protects the engine from damage due to insufficient lubrication, extending service life.
3.1 Litre Fuel Tank
Feature: Generous onboard fuel capacity.
Benefit: Longer run times between refuelling, ideal for continuous-use equipment.
Compact, Service-Friendly Design
Feature: Dimensions: 271 × 365 × 356 mm; easy-access components.
Benefit: Fits a wide range of equipment and simplifies routine maintenance.
3-Year + 1 Commercial Warranty (T&Cs apply)
Feature: Industry-leading warranty coverage.
Benefit: Confidence and protection for professional users, backed by Briggs & Stratton’s support network.
Ideal Applications
This engine is a strong replacement option for selected Honda GX200 models and is commonly used in:
- Construction equipment
- Compactors and plate tampers
- Pressure washers
- Generators
- Tillers and agricultural machinery
- Industrial pumps
Specification
Series: Vanguard 200 OHV
Cylinder/s: Single
Cylinder type: Cast-Iron Sleeved
Power: 6.5 HP Gross* (4.8 kW @ 3600 rpm**)
Capacity: 203 cm³/cc
Fuel type: Petrol (4-Stroke)
Cooling system type: Air
Crankshaft position: Horizontal
Crankshaft type: Straight
Crankshaft diameter: 25.4mm (1")
Crankshaft length: 73mm (2 7/8")
Flywheel type: Heavy
Throttle type: Variable
Recoil starter: Yes
Electric starter: No
Priming System: Manual Choke
TransportGuard: Yes
Fuel pump: No
Oil filter: No
Oil Alert: Yes
Muffler: Yes (Super Lo-Tone)
Fuel tank: Yes
Fuel tank capacity: 3.1 ltr
Oil capacity: 0.6 ltr*
Dry weight: 17.9 Kg
Dimensions: 271 mm x 365 mm x 356 mm*
Warranty: 3-Year + 1 Commercial Warranty (T&Cs apply)
* Approximately
** All power levels are stated gross kilowatt per SAE J1940 as rated by Briggs & Stratton
FREE Engine Oil to commission the engine is included.
Always read owners manual prior to commissioning engine. Damage caused by improper installation are not warrantable.
Shipping restrictions may apply. Please contact us for confirmation if the required delivery destination is outside of the UK.
IMPORTANT NOTE: If you are not completely sure that this engine will suit your intended application, please contact us with your original engine details first, (in the case of Briggs, the Model, Type and Code numbers). One of our Briggs trained staff will then be able to confirm whether this engine is suitable, and if not, assist with identification of the correct engine for your requirements.
