Before entering the parts illustrations link, please ensure that you have your engine's MODEL, TYPE and CODE numbers (see below)


When prompted, please enter your Model and Type numbers in the following format including the dashes ??????-????
If your Model has only 5 digits, add a zero to the front e.g. 09D902-0127


If you cannot get your model recognised, please e-mail contact@briggsbits.co.uk for advice, quoting the numbers from your engine

Open Briggs and Stratton parts illustrations

Help with the Illustrations

Model, Type and Code numbers

Briggs and Stratton engines are identified with a MODEL, TYPE and CODE number system and take the form of the example below.

ModelTypeCode
12F8020637 0199070759
  • The MODEL number is either 5 or 6 digits which may contain letters
  • The TYPE number is 4 digits followed by an extension (Trim number) of 2 digits. Letters may be used in the extension
  • The CODE number is the machine's serial number. The first 6 digits represent the date of manufacture YYMMDD
    (the example above was built 7th July 1999)

The numbers can be in a variety of locations depending upon the engine but are generally to be found either:-

  • Stamped into the front, top or side of the main cowling
  • Stamped into the plate over the exhaust
  • Etched into the plastic cover
  • Stamped into the rocker cover on an OHV engine
  • On a transfer, sticker or riveted plate on the main cowling
Sometimes, plastic covers or excess paint may obscure the details but they will be there.
The only exception is if the main cowling or part holding the details has been previously replaced. In which case the details should have been retained from the old part.

Help finding model, type and code numbers
Please click for more information on finding your Model, Type and Code numbers
Return to top of page

How to Enter your Numbers into the Parts Illustration Pages

When you click the Briggs and Stratton parts illustration link at the top of this page, the Briggs and Stratton manual search page will open at Step 1 Category. Scroll down a little and click the "Engine" logo.

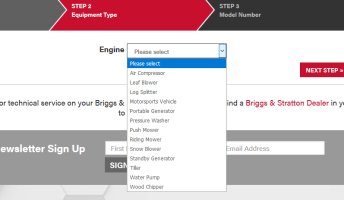

The page will change to "Step 2 Equipment Type".
From the drop down box,click the equipment that is closest to matching what your engine is fitted to.
(This is not important as the selection does not alter the next page).

Click "Next Step"

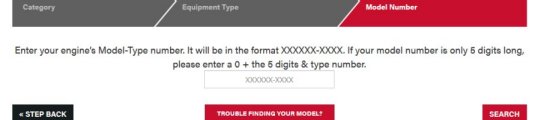

At "Step 3 Model Number" enter your 6 digit Model number and 4 digit Type number with a dash between them.
If your Model number has only 5 digits, place a zero at the front e.g. 9D902-0169 would be entered 09D902-0169.

Click "Search" and it should look for documents for your engine.

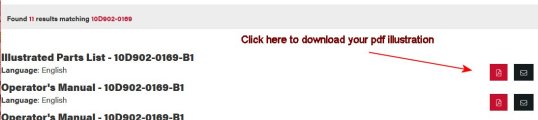

To the right and slightly below the entry for your "Illustrated Parts List" (english), you will see a small pdf logo. Click this to download the parts list pdf.
Your parts list will be in your downloads for viewing or saving.

If this fails to return any results, please double check the numbers are correct and if so drop us an e-mail to Contact@briggsbits.co.uk and we shall find the correct number format for your engine.

Return to top of page

How to use the Parts Illustrations

Your downloaded parts illustrations are a series of pages within one pdf document. The righthand scrollbar is used to scroll through the pages.

Generally, page 1 is an index detailing which page each section is on.
Find the page showing the part that you need and then locate the part.

The part will have a reference number next to it. Make a note of this number.

You now need to convert this reference number into the correct part number.

The part number index will be listed in one of two ways:

  1. Each illustration has its corresponding list of numbers below it
  2. All of the numbers are listed on pages at the bottom of the whole document
The lists are in reference number order. Find your part's reference number, check it's description and read the corresponding part number

For example, item reference 333 ignition armature from the following list...

REF.NO.  PART NO.     DESCRIPTION
332   690662   Nut
333   802574   Armature-magneto
334   691061   Screw

...would be part number 802574 and decription Armature-magneto

Return to top of page

Where choices are shown on the illustration

Sometimes illustrations show a number of choices for a part, each with a different reference number.
Often the alternative reference numbers will carry a letter.

4, 4A, 4B etc.

Carefully compare the picture with your part to see which setup you have.

The description in the part number listing will also help to correctly identify it.

for example:

REF.NO.  PART NO.     DESCRIPTION
4       493279   Sump-engine
4A     493365   Sump-engine(aux pto)

Where item 4A (493365) has an auxillary PTO drive shaft on the side.

(see also "Used on Type" and "Used Before/After Code")

Return to top of page

"Used on Type" part choices

Some parts references give a number of alternative part numbers depending upon the engines TYPE number.

For example:

REF.NO.  PART NO.     DESCRIPTION
83   691778Shaft-auxillary drive
----------note-----------
690522 Shaft-auxillary drive used on Type Nos. 1170,2950,2951.
690527 Shaft-auxillary drive used on Type Nos. 1141,1172,1516.

In this example: (combinations of type and code dependant alternatives are often encounered, work out what you need in careful, logical steps)

Return to top of page

"Used Before/After Code" part choices

Some parts references give a number of alternative part numbers depending on the age of the engine, or it's CODE number.

For example:

REF.NO.  PART NO.     DESCRIPTION
802   695267Cap-End
(used after code date 00040600)
----------note-----------
695975 Cap-End
(used before code date 00040600)

In this example:
Be aware that the first 6 digits of the code depict the engines build date YYMMDD so code 99042058 (20/04/1999) would be before 00040600 (06/04/2000)
Combinations of type and code dependant alternatives are often encounered, work out what you need in careful, logical steps

Return to top of page

Crankcase Gasket Thicknesses

Crankcase gaskets are listed with a choice of thicknesses (.005",.010",.015" etc.)to allow adjustment of excessive crankshaft end float.

The thickest option is the original size and is used in most cases. If however, there is excessive crankshaft end play(in and out), then choose a gasket that will reduce it by the desired amount.

Return to top of page

Piston and Ring Sizes

Most pistons and ring sets are available in oversizes. This is to accomodate cylinder rebore repair.

Only fit the size of rings to suit the size of piston.

An oversize piston will be marked as such(.020" etc.), generally on it's top face. It is worth checking for this if you require rings.

Return to top of page
