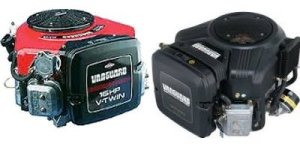

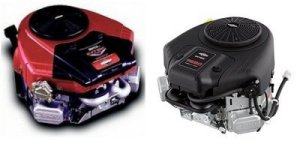

Vanguard, Intek and other Twin Cylinder Vertical Crankshaft Engines.(as fitted to garden tractor mowers)If the parts you need are not listed, please use the link button at the bottom of this page.
Items with associated special tools. Click Red Spanner link on the left of the page for tools page
Quantity:
Complete repair manual for all Vanguard V-Twin enginesCovers everything you need to know!
Complete repair manual for all Side ValveTwin enginesCovers everything you need to know!
Repair manual for Intek V-Twin overhead valve enginesCovers everything you need to know
Service expert digital hour meter and service reminderWorks from engine vibration so only records whilst the machine is operatingFits conveniently to machine handles etc.Integral non replaceable battery lasts approx 7 years
Briggs and Stratton Petrol additive for all 4 stroke and 2 stroke petrol enginesPrevents fuel deterioration during periods of non-use and generally aids engine efficiencyEssential for correct winter storage of lawnmowers etc.100 ml, treats 30 litres of fuel
Champion RJ19LM spark plug for all side valve engines
19mm/21mm Spark plug box wrench for 992041 spark plug
RC12YC Spark plug for all OHV engines other than the Vanguard Twin engines listed for 992306 below
BS14YC Spark plug for Vanguard Twin cylinder engines who's 6 digit model numbers begin;29,303,305,35 & 381
16mm/19mm Spark plug box wrench for 992304 & 992306 spark plugs
Suitcase type air filter cartridge for Intek twin cylinder enginesPaper element approx 17cm x 9.5cm
Pre fiter for Intek twin cylinder engines. Fitted with 499486 filter cartridge
Square paper air filter element for selected Vanguard V-twin enginesApprox 18cm x 16cm
Foam pre filter for use with 805113 element
Oval paper air filter cartridge for opposed twin cylinder enginesApprox 24.5cm long x 10cm wide
Round paper air filter cartridge for selected twin cylinder enginesApprox measurements - I/D 14cm, O/D 18cm, Height 5.5cm
Foam pre-filter element for 394018 and 394019 cartridges
Air filter cartridge for larger twin cylinder enginesApprox measurements - I/D 14cm, O/D 20cm, Height 5.5cm
Pre filter foam for 692519 cartridge
Paper air filter cartridge for some twin cylinder enginesApprox 11cm diameter x 9.5cm high with 5cm hole at each end
Foam pre filter for 393957 cartridgeCan be retro fitted to extend filter life
Briggs and Stratton spares Oil filter for many pressure lubricated enginesApprox 6cm tall x 7.5cm diameter(at base)
Briggs and Stratton spares Oil filter for many pressure lubricated enginesApprox 6cm tall x 7.5cm diameter(at base)Higher spec. Extended Life Series version of 492932.Recommended as a replacement for engines subject to higher than normal use or demanding conditions
Oil filter for pressure lubricated enginesApprox 8.5cm tall
Oil filter. For selected Vanguard twin cylinder engines
Extended oil drain pipe kitAllows easier oil draining away from bodywork etc.Includes 796530 drain pipe and 796532 ConnectorPipe can be clipped up out of the way when not in useCan be retro fitted to any engine with 3/8" Pipe thread (approx 17mm thread outside diameter)
Oil filler/dipstick threaded rubber seal
Fuel tube for most applicationsSold in units of 20cm. Multiple purchases will be supplied in one total lengthUse with 710075 clamps.(sold seperately)
Plated fuel tube hose clamp. Fits 11mm O/D fuel tube 395051
Black fuel tube clamp. Fits 12mm O/D fuel hose(Slightly smaller than 95162)
Green fuel tube clamp. Fits fuel tube over 12mm O/D(Slightly larger than 691038)
In line fuel shut off valve supplied with 2 x 95162 tube clamp
Red in line fuel filter for gravity fed fuel systems
White in line fuel filter for pumped or higher pressure gravity fuel systems
Paper type in line fuel filter fitted in many pumped fuel systems
808656 Plastic fuel pump. Approx 50mm diameter x 25mm. 3 connectors Symptomatic failure information
RPM tachometer to accurately set engine speedEasy to use and compact. Complete with instructions and walletSuits any engine
Carburetor rubber bowl sealApprox 5.7cm outside diameter
Carburetor rubber bowl seal for intek and other enginesApprox 5cm outside diameter
Intek carburetor float bowl seal for engines with Nikki carb
Copper carburetor lower sealing washer for various enginesApprox 7.5 mm inside diameter
1/4 inch diameter bolt for engine cowling, carb bracket etc.(approx 14mm long)
Recoil pulley for 5HP + engines with square drive starter clutchComes with rope. Approx 13.5cm diameter
5mm diameter recoil rope for many larger engines
Recoil starter large rubber grip with plastic insertFits 5mm diameter rope 692188 and pulley 295871
Electric starter motor drive kit for most later starter motorsPlastic drive gear and "c" clip type retainerAssociated special tools
16 tooth plastic starter gear for most starter motors
Metal 14 tooth starter gear with plastic inner for some starter motorsDoes not replace 16 tooth all plastic starter gear, the tooth pitch is different
'C' clip retainer for later starter motorsAssociated special tools
Retaining pin. For pin retained started gears
Electric starter motor drive kit for most earlier starter motorsPlastic drive gear and pin type retainer.(also suits early models without return spring & cage)
691656 Starter Solinoid, single polePlease note - starter solenoids are generally originally provided by the equipment manufacturer not Briggs and Stratton. This is a fairly universal soleniod that fits most applications however, if you wish to replace the original exactly, a replacement would need to be obtained through the equipment (mower etc.) manufacturer Using this to replace a double pole solenoid
Ignition key switchPlease check wiring details pop-up below as some equipment manufacturers use similar looking switches with differing pin positions Wiring details
Indak Ignition key set. Contains two keysFlat profile. Fits most electric start machines Click here for profile shape pop-up
Ignition Key. Delta Click here for profile shape pop-up
Ignition spark tester. Tests the ignition system for efficiencyFor all engines
Electronic ignition armature magneto coil for most larger overhead valve enginesMounting hole centres approx 6.4cm apart
Ignition armature for twin cylinder L Head (sidevalve) engines (two HT leads)
Spark plug terminal (493880S) and rubber elbow (66538S), to fit all side valve HT leads
12 Volt regulator and rectifier for many larger electric start enginesApprox 4cm square. Yellow lead with round connector, Red lead with round connector Typical Failure Symptoms Pop-up
12 Volt regulator and rectifier for many larger electric start enginesApprox 5.5cm x 8cm. 2 Yellow leads with rectangular connector, Red lead with round connector
Head and valve gasket set for Intek OHV 18-20 HP twin cylinder enginesFor all head and valve workAssociated special tools
Rocker cover gasket (sold individually) for 16 - 23 HP Vanguard OHV twin cylinder engines
Graphoil (not metal) cylinder head gasket (supplied individually) for 16HP Vanguard twin OHV enginesAfter date code 96033100Associated special tools
Graphoil (not metal) cylinder head gasket (supplied individually) for 18-20HP Vanguard twin OHV enginesAfter date code 96033100Associated special tools
Graphoil (not metal) cylinder head gasket (supplied individually) for 23HP Vanguard twin OHV enginesAfter date code 96033100Associated special tools
692236 Exhaust gasket.Twin cylinder side valve enginesBolt hole centres approx 48mm apart
Flywheel key to fit most enginesApprox. 14mm long x 3mm x 4mmAssociated special tools
Flywheel woodruff key for Vanguard twin cylinder enginesApprox 5.5mm thick. (2 different profiles supplied)Associated special tools
