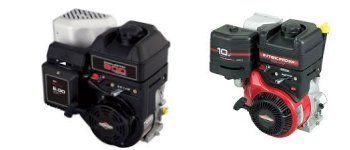

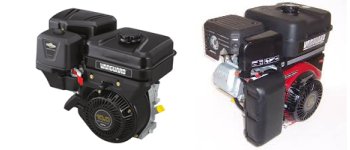

Horizontal Crankshaft over 7 HP

Repair manual for all single cylinder side valve engines built after 1981
Covers all you need to know!

Repair manual for engines dating 1919 to 1981
Includes Cast iron models A to ZZ and 5's to 320000
Aluminium engines 6B, 8B and 60000 to 253400

How old is my engine?

Repair manual for all single cylinder Vanguard engines

Covers all you need to know!

Repair manual for all single cylinder OHV engines other than Vanguard
For Vanguard engines order 272147.

Covers all you need to know!

Complete repair manual for all Vanguard V-Twin engines
Covers everything you need to know!

Repair manual for Intek V-Twin overhead valve engines

Complete repair manual for all Side ValveTwin engines
Covers everything you need to know!

Service expert digital hour meter and service reminder
Works from engine vibration so only records whilst the machine is operating
Fits conveniently to machine handles etc.
Integral non replaceable battery lasts approx 7 years

Briggs and Stratton Petrol additive for all 4 stroke and 2 stroke petrol engines
Prevents fuel deterioration during periods of non-use and generally aids engine efficiency
Essential for correct winter storage of lawnmowers etc

100 ml, treats 30 litres of fuel

Champion RJ19LM spark plug for all side valve engines

19mm/21mm Spark plug box wrench for 992041 spark plug

RC12YC Spark plug for all OHV engines other than the Vanguard Twin engines listed for 992306 bolow

BS14YC Spark plug for Vanguard Twin cylinder engines who's 6 digit model numbers begin;
29,303,305,35 & 381

16mm/19mm Spark plug box wrench for 992304 & 992306 spark plugs

Throttle control and cable to fit many applications
1.35m long. End can be bent to suit
Negative action(Control pushed to fast, shortens inner wire)

Throttle control and cable to fit many applications
1.35m long. End can be bent to suit
Positive action(Control pushed to fast, lengthens inner wire)

Paper air filter for many engines
Approx 13cm x 11.5cm

Foam pre filter for 491588 paper filter fitted to horizontal crankshaft engines

Paper air filter cartridge for selected Industrial Plus engines

Paper air filter element for seleced horizontal crankshaft engines
Approx 16cm x 7.5cm

Foam pre filter for 494511S & 691643 air filter cartridges

Suitcase type air filter cartridge for Intek twin cylinder engines
Paper element approx 17cm x 9.5cm

Pre fiter for 499486S filter cartridge

Paper air filter cartridge for many larger horizontal crankshaft engines
Approx 11cm diameter x 9.5cm high with 5cm hole at each end

Foam pre filter for 393957 cartridge
Can be retro fitted to extend filter life

Rectangular paper air filter cartridge for 9 HP Vanguard OHV horizontal crankshaft engine

Foam pre filter for 710266 filter cartridge

Square paper air filter element for selected Vanguard V-twin engines
Approx 18cm x 16cm

Foam pre filter for use with 805113 element

Oval paper air filter cartridge for opposed twin cylinder engines
Approx 24.5cm long x 10cm wide

Round paper air filter cartridge for selected twin cylinder engines
Approx measurements - I/D 14cm, O/D 18cm, Height 5.5cm

Foam pre-filter element for 394018 and 394019 cartridges

Air filter cartridge for larger twin cylinder engines
Approx measurements - I/D 14cm, O/D 20cm, Height 5.5cm

Pre filter foam for 692519 cartridge

Briggs and Stratton spares Oil filter for many pressure lubricated engines
Approx 6cm tall x 7.5cm diameter(at base)

Briggs and Stratton spares Oil filter for many pressure lubricated engines
Approx 6cm tall x 7.5cm diameter(at base)
Higher spec. Extended Life Series version of 492932.
Recommended as a replacement for engines subject to higher than normal use or demanding conditions

Oil filter for pressure lubricated engines
Approx 8.5cm tall

Oil filter. For selected Vanguard twin cylinder engines

Extended oil drain pipe kit
Allows easier oil draining away from bodywork etc.
Includes 796530 drain pipe and 796532 Connector
Pipe can be clipped up out of the way when not in use
Can be retro fitted to any engine with 3/8" Pipe thread (approx 17mm thread outside diameter)

Oil filler/dipstick threaded rubber seal

Fuel cap for Intek OHV horizontal crankshaft engines
Approx 7.5cm outside diameter

Fuel tube for most applications

Sold in units of 20cm. Multiple purchases will be supplied in one total length
Use with 710075 clamps.(sold seperately)

Plated fuel tube hose clamp. Fits 11mm O/D fuel tube 395051

Black fuel tube clamp. Fits 12mm O/D fuel hose
(Slightly smaller than 791850)

Green fuel tube clamp. Fits fuel tube over 12mm O/D
(Slightly larger than 691038)

In line fuel shut off valve supplied with 2 x 691038 tube clamp

Red in line fuel filter for gravity fed fuel systems

White in line fuel filter for pumped or higher pressure gravity fuel systems

Paper type in line fuel filter fitted in many pumped fuel systems

808656 Plastic fuel pump. Approx 50mm diameter x 25mm. 3 connectors

Symptomatic failure information

RPM tachometer to accurately set engine speed
Easy to use and compact. Complete with instructions and wallet
Suits any engine

Fibre carburetor bowl lower seal washer for many engines
Approx 10mm inside diameter

Fibre carburetor bowl lower seal washer for many engines
Approx 9mm inside diameter

Fibre carburetor bowl lower seal washer for many engines
Approx 8mm inside diameter

Copper carburetor lower sealing washer for various engines
Approx 7.5 mm inside diameter

Carburetor rubber bowl seal
Approx 5.7cm outside diameter

Carburetor rubber bowl seal for intek and other engines
Approx 5cm outside diameter

Intek carburetor float bowl seal for engines with Nikki carb

1/4 inch diameter bolt for engine cowling, carb bracket etc.
(approx 14mm long)

Recoil pulley & spring for some engines with screw retainer and plastic pawls & plate.
Approx 13.5cm diameter

Recoil starter pulley and spring assy for larger engines
(Approx 13.5cm diameter)

Starter pawls & retaining plate for 697843 and 498144 type starter pulleys
Parts Included - 2 x 281505S pawl, 692299 plate & 691855 friction spring

Recoil starter pulley for larger engines that are fitted with plastic pawls and plate. (sold seperately as ST3 below)
(Approx 16cm diameter)

Recoil starter spring for 695129 pulley

Recoil spring for Vanguard OHV engines 9HP and over
(Suits 692085 pulley)

Recoil starter pawls(281505S) x2 friction spring(691855) and plate(695128) for 695129 and 692085 pulleys.
(Plate approx 5.5cm diameter)

Recoil pulley for 5HP + engines with square drive starter clutch
Comes with rope. Approx 13.5cm diameter

Recoil rewind spring for engines with square clutch drive

5mm diameter recoil rope for many larger engines

Recoil starter large rubber grip with plastic insert
Fits 5mm diameter rope 692188 and pulley 295871

Square drive starter clutch

Associated special tools

Older type starter clutch removal tool
Sits over the clutch to enable standard socket set fitting

Electric starter motor drive kit for most later starter motors
Plastic drive gear and "c" clip type retainer

Associated special tools

16 tooth plastic starter gear for most starter motors

'C' clip retainer for later starter motors

Associated special tools

Retaining pin. For pin retained starter gears

Electric starter motor drive kit for most earlier starter motors
Plastic drive gear and pin type retainer.(also suits early models without return spring & cage)

691656 Starter Solinoid, single pole
Please note - starter solenoids are generally originally provided by the equipment manufacturer not Briggs and Stratton. This is a fairly universal soleniod that fits most applications however, if you wish to replace the original exactly, a replacement would need to be obtained through the equipment (mower etc.) manufacturer

Using this to replace a double pole solenoid

Indak ignition key switch
Please check wiring details pop-up below as some equipment manufacturers use similar looking switches with differing pin positions

Wiring details

Indak Ignition key set. Contains two keys
Flat profile. Fits most electric start machines

Click here for profile shape pop-up

Cigar type muffler with approx 26mm o/d thread (3/4 NPT)
16cm overall length

692236 Exhaust gasket.Sidevalve engines 11HP and over
Models 24, 25, 32, 40 & 42
Bolt hole centres approx 48mm apart

Cylinder and valve gasket set for 17 & 19 Series (eg. 176432, 192407 etc) single cylinder sidevalve engines.
Model
For all decoke and valve work

Associated special tools

Head and valve gasket set for 11HP horizontal sidevalve engines

Associated special tools

Cylinder head and valve gasket set for Intek OHV 8 -10 HP engines

Associated special tools

Cylinder head and valve gasket set for Intek OHV 15.5, 17 and 17.5 HP engines
For all head and valve work

Associated special tools

Head and valve gasket set for Intek OHV 18-20 HP twin cylinder engines
For all head and valve work

Associated special tools

Metal head gasket for Vanguard 7.5 HP OHV horizontal crankshaft engine

Associated special tools

Rocker cover gasket for Vanguard 7.5 HP OHV horizontal crankshaft engine

Rocker valve cover gasket to fit 11HP Vanguard engine

Rocker cover gasket for 9HP Vanguard OHV engines

Rocker cover gasket (sold individually) for 16 - 23 HP Vanguard OHV twin cylinder engines

Graphoil (not metal) cylinder head gasket (supplied individually) for 16HP Vanguard twin OHV engines
After date code 96033100

Associated special tools

Graphoil (not metal) cylinder head gasket (supplied individually) for 18-20HP Vanguard twin OHV engines
After date code 96033100

Associated special tools

Graphoil (not metal) cylinder head gasket (supplied individually) for 23HP Vanguard twin OHV engines
After date code 96033100

Associated special tools

12 Volt regulator and rectifier for many larger electric start engines
Approx 4cm square. Yellow lead with round connector, Red lead with round connector

Typical Failure Symptoms Pop-up

12 Volt regulator and rectifier for many larger electric start engines
Approx 5.5cm x 8cm. 2 Yellow leads with rectangular connector, Red lead with round connector

Ignition spark tester. Tests the ignition system for efficiency
For all engines

Electronic ignition armature magneto coil for 7 - 16 HP single cylinder side valve engines
Also used to convert older points system (coil 298968) engines to electronic ignition
Mounting hole centres approx 6.4cm apart

Electronic ignition armature magneto coil for most larger overhead valve engines
Mounting hole centres approx 6.4cm apart

Ignition armature for twin cylinder L Head (sidevalve) engines (two HT leads)

Spark plug terminal (493880S) and rubber elbow (66538S), to fit all side valve HT leads

Contact breaker points for most points ignition engines
(Fitted under the flywheel) Includes spring compressing tool

Associated special tools

Retro fit magnetron electronic ignition kit
Fits all 2 leg ignition coils with points ignition

Points plunger. (pushes up 294628 points arm to open contacts)

Associated special tools

Flywheel key to fit most engines
Approx. 14mm long x 3mm x 4mm

Associated special tools

Flywheel puller for mid range engines
Distance between outer hole centres approx 51mm
If your engine has a square drive starter clutch holding down the flywheel, you will also require 690662 nut (see below)

Flywheel puller for larger engines
Distance between outer hole centres approx 72mm
Includes long and short bolt sets
If your engine has a square drive starter clutch holding down the flywheel, you will also require 690662 nut (see below)

Nut, crankshaft/flywheel
Required for puller use on engines which have a square drive rewind starter clutch
